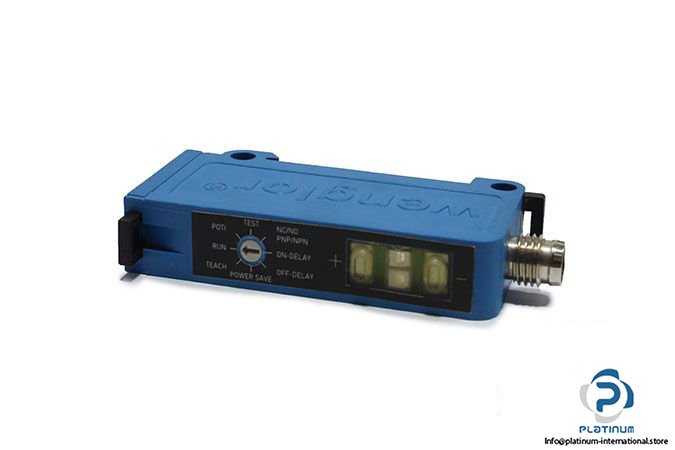

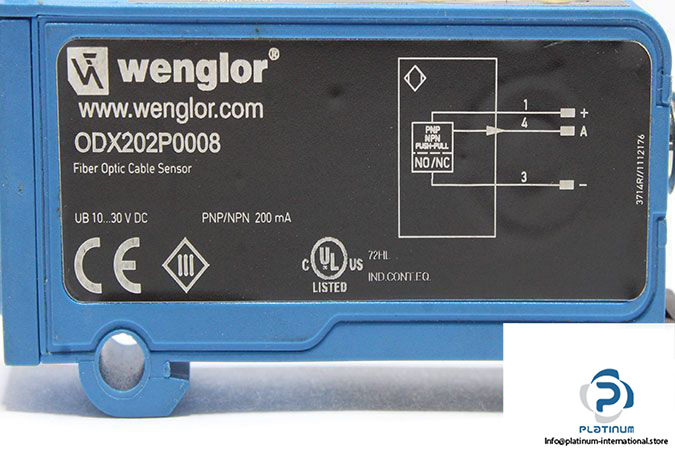

Wenglor ODX202P0008 Fiber Optic Cable Sensor

Manufacturer: Wenglor

Type: Fiber Optic Cable Sensor

Model: ODX202P0008

Supply Voltage: 10 … 30 VDC

Current Consumption: < 40 mA
Switching Frequency: 2 kHz

On-/Off-Delay: 0 … 200 ms

Temperature Range: -25 … 60°C

Light Source: Red light

Wave Length: 660 nm

Max. Ambient Light: 10000 Lux

Electrical Design: PNP/NPN

Setting Method: Teach- In

Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 200 mA

Protection Class: III

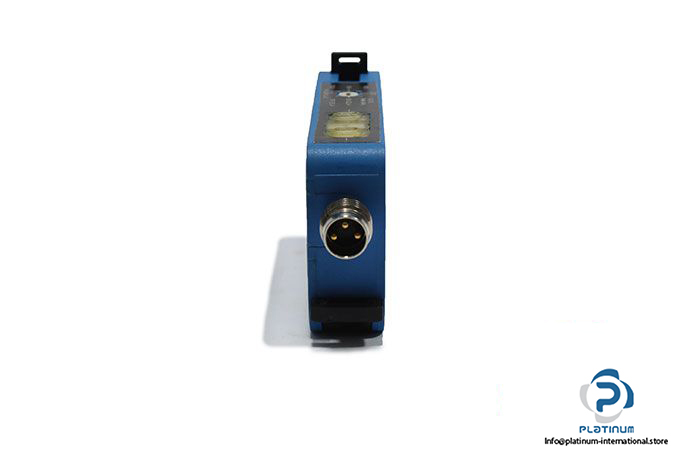

Connection: M8 x 1; 3-pin

Housing Material: Plastic

Degree of Protection: IP65

Dimensions: 59 X 30 X 12 mm

Weight: Approx. 0.03 Kg
