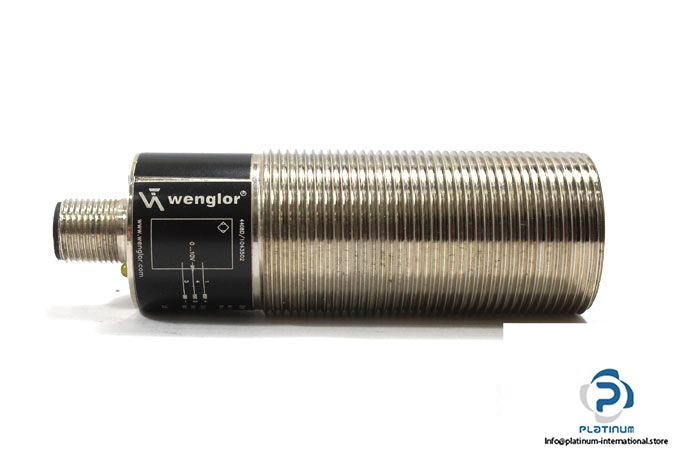

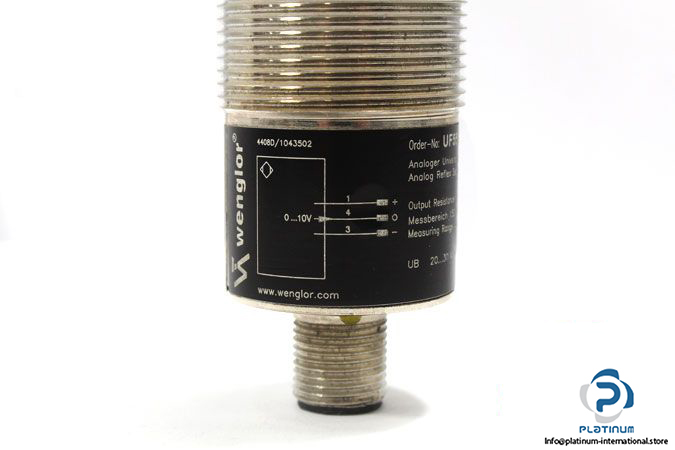

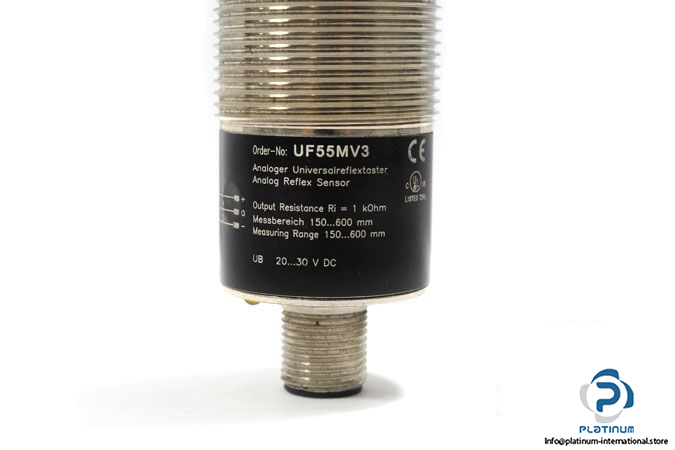

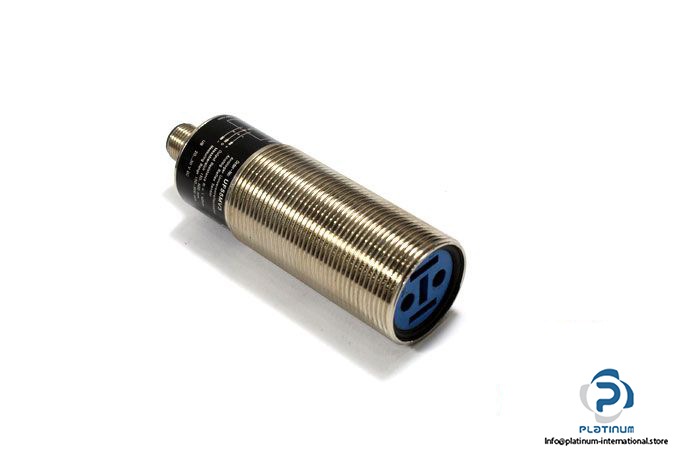

Wenglor UF55MV3 Photoelectric Fiber Optic Cable Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC FIBER OPTIC CABLE SENSOR

Model: UF55MV3

Sensing range: 150 … 600 mm

Measuring range: 450 mm

Response time: 10 ms

Operating Voltage: 20 … 30 V DC

Operating Current: mA

Switching frequency: 50 Hz

Light source: Infrared light

Wavelength: 880 nm

Adjustment: Potentiometer

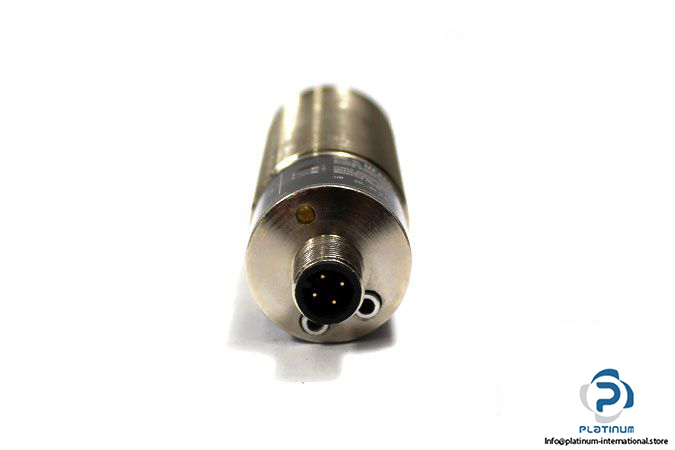

Connector type: M12 Connector, 4-pin

Protection class: III

Enclosure rating: IP65

Ambient operating temperature: -10 … 60°C

Dimensions: 30, 82 mm

Housing material: CuZn , Nickel-plated

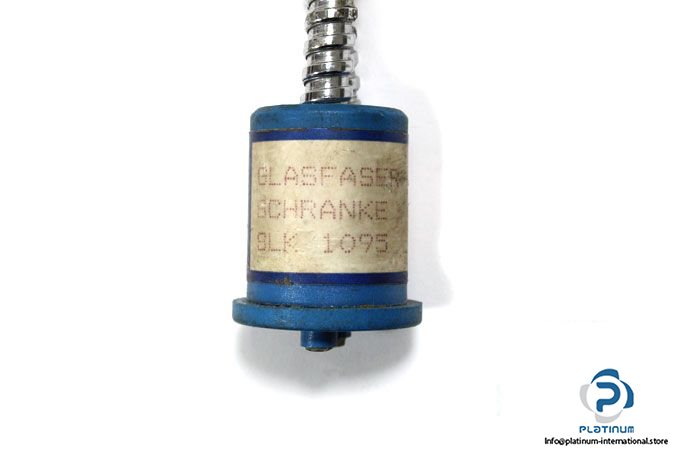

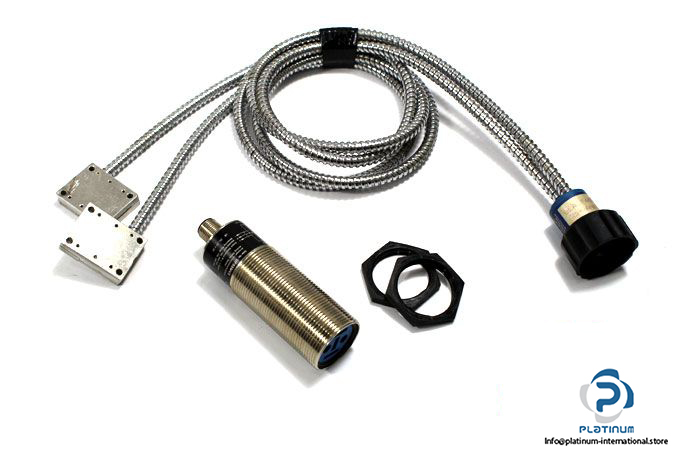

Complementary item: Glass Fiber-Optic Light Curtain SLK 1095

Fiber bundle diameter: 3.6 mm

Range: 130 … 600 mm

Ambient operating temperature: -25 … 250°C

Fiber optic cable: 1 m

Material jacket: CuZn ,Nickel plated

Material endpot: Alluminium
