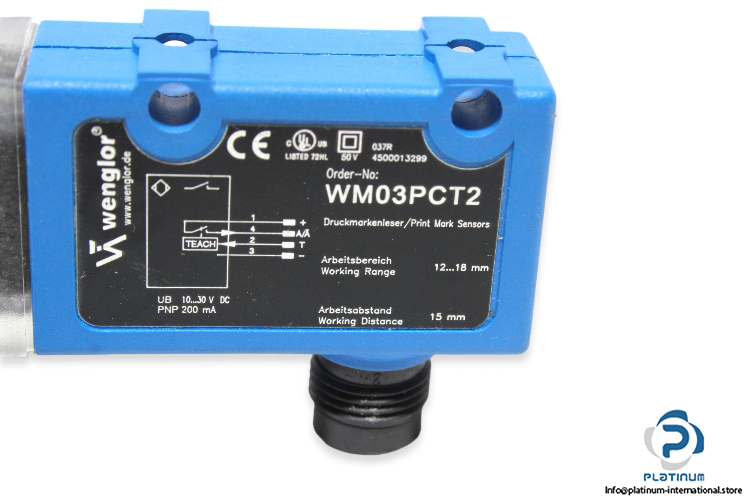

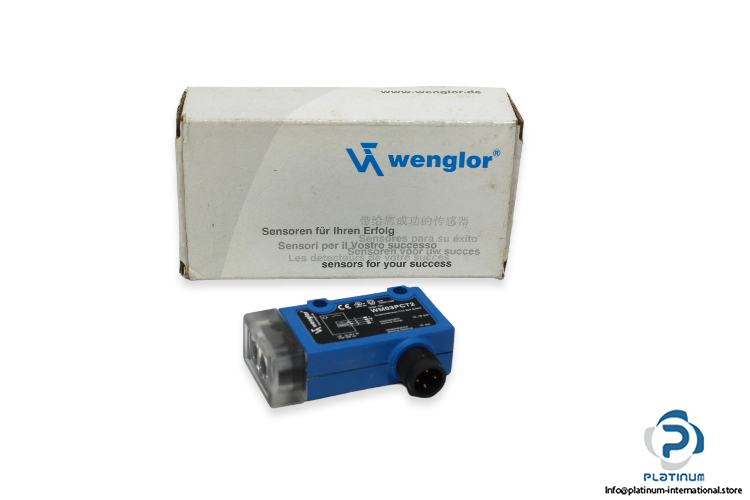

Wenglor WM03PCT2 Print Mark Reader
Manufacturer: Wenglor
Type: Print Mark Reader
Order No: WM03PCT2
Working Range: 12 … 18 mm
Working Distance: 15 mm
Resolution: 20 Gray Scale
Wavelength: 400…700 nm
Supply Voltage: 10 … 30 V DC
Current: 30 mA
Switching Frequency: 5 kHz
Electrical Design: PNP
Output Function: Normally Open / Normally Close
Protection Class: IP67
Light Source: Laser (red)
Connection: M12 / 4-pin
Temperature Range: -25…60 °C
