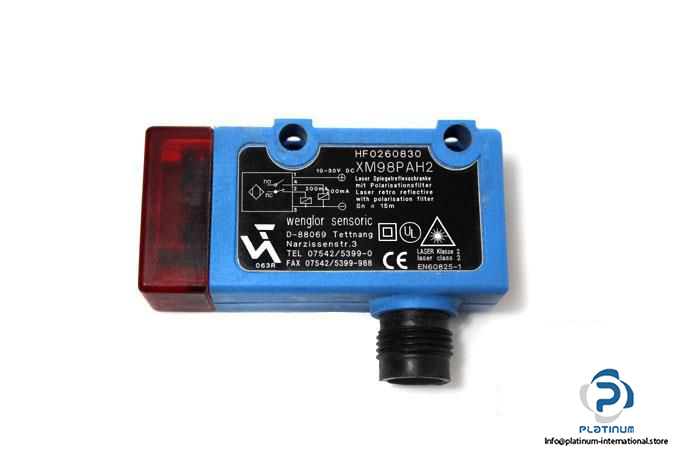

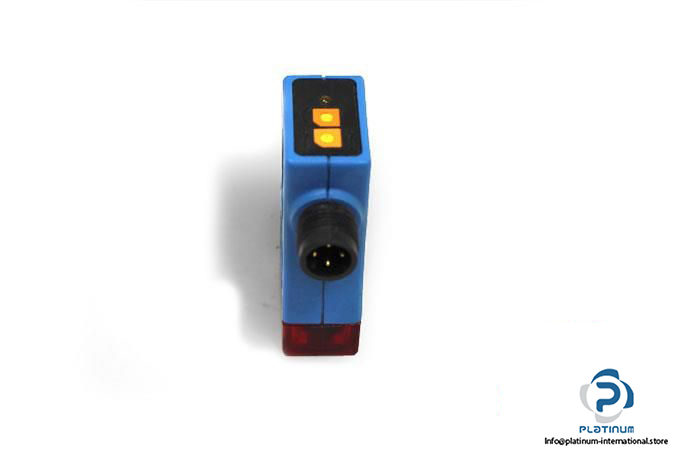

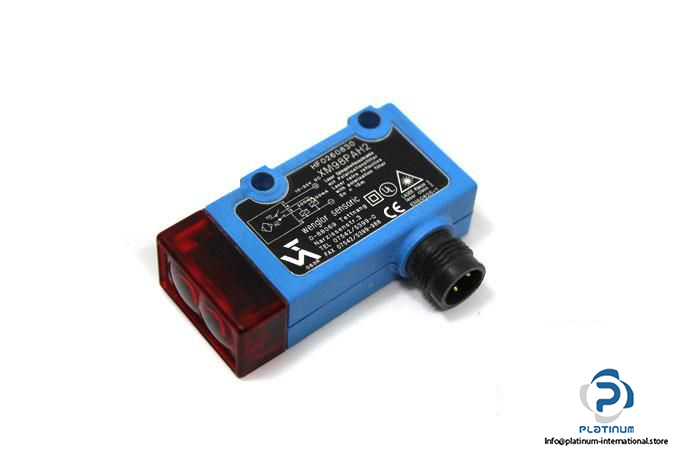

Wenglor XM98PAH2 Photoelectric Retro-Reflex Sensor

Manufacturer: WENGLOR

Type: PHOTOELECTRIC RETRO-REFLEX SENSOR

Product Nr.: XM98PAH2

Sensing range: 15000 mm

Min. Distance to Reflector: 80 mm

Response time: 166 µs

Off delay: 5 ms

Operating Voltage: 10 … 30 V DC

Current consumption: < 30 mA
Output Current: 200 mA

Switching frequency: 3 kHz

Wave length: 655 nm

Electrical design: PNP

Switching output: Normally open/Normally closed

Adjustment: Potentiometer

Connector type: M12 Connector-4-pin

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -10 … 60°C

Dimensions: 26 x 16 x 55 mm

Housing: Rectangular

Housing material: Plastic
