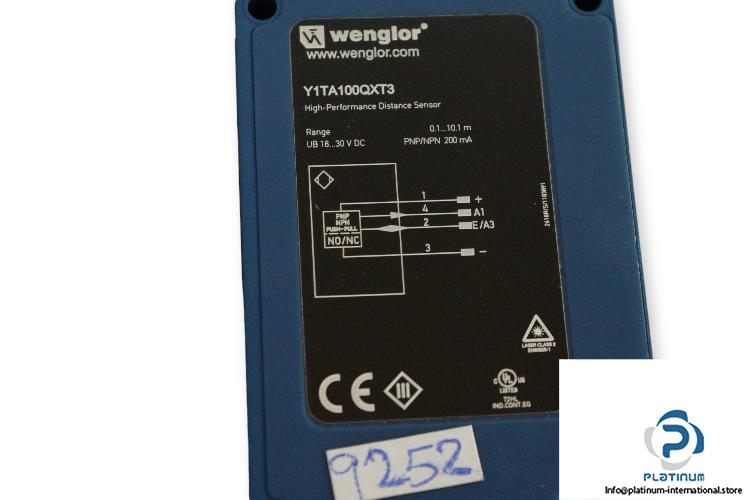

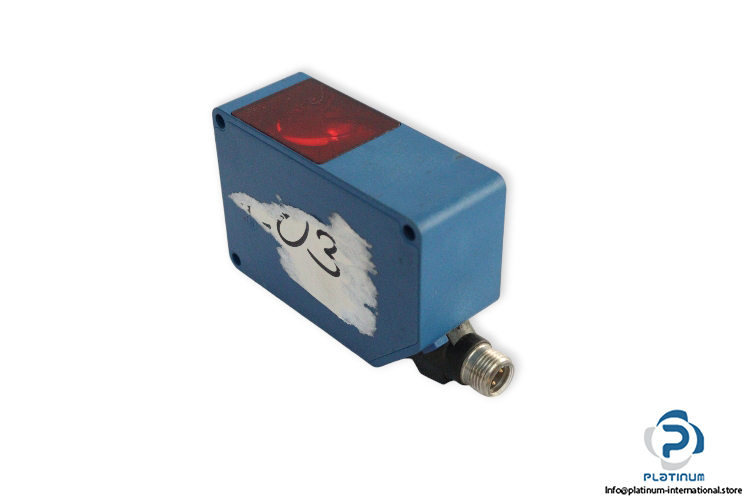

Wenglor Y1TA100QXT3 Laser Distance Sensor
Gebraucht
Auf Anfrage verfügbar
125,00$
Hersteller: Wenglor Typ: Laserdistanzsensor / Hochleistungs-Distanzsensor Modell: Y1TA100QXT3
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Wenglor
Type: Laser Distance Sensor/ High Performance Distance Sensor
Model: Y1TA100QXT3
Operating Voltage: 18 … 30 V DC
Measurement Range: 0.1 … 10.1 mm
Output Signal: PNP/NPN
Contact Configuration: 1 Normally Open/ 1 Normally Close
Switching Current: 200 mA
Resolution: 1 … 12 mm
Wavelength: 660 nm
Max. Ambient Light: 10000 Lux
Connection: M12 X 1; 4-Pin
Operating Temperature: -25 … 60 °C
Degree of protection: IP68
Dimensions: 81 X 55 X 30 mm
