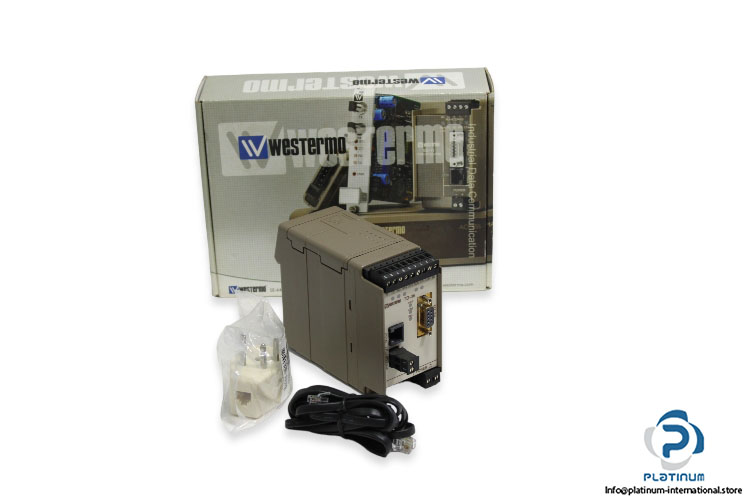

Westermo TD-36 AV Industrial Pstn AND Leased Line Modem

Manufacturer: Westermo

Type: Industrial Pstn and Leased Line Modem

Model: TD-36 AV

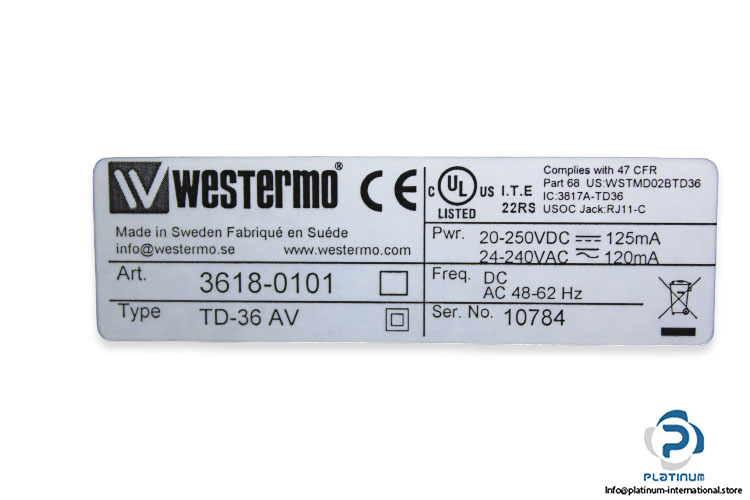

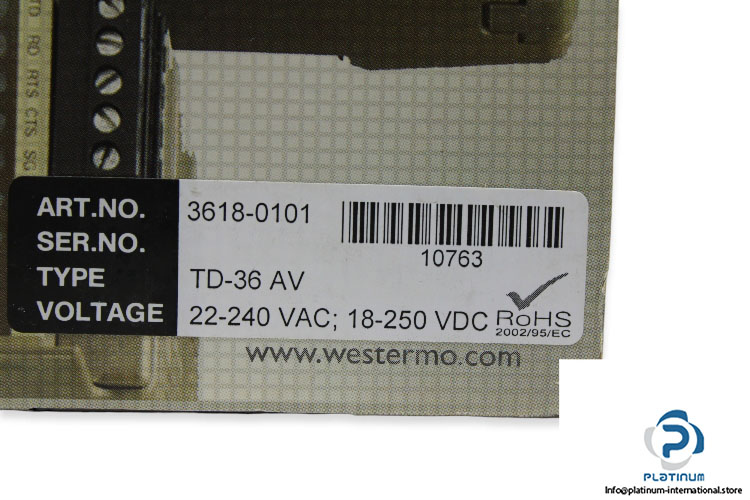

Part No.: 3618-0101



Rated voltage: 20 … 250 V DC, 24 … 240 V AC

Operating voltage: 18 … 250 V DC, 22 … 240 V AC

Rated current: 125 mA / 18 V DC, 120 mA / 22 V AC

Frequency: 48 … 62 Hz

Connection: Detachable screw terminal

Public Switched Telephone Network (PSTN)

Data rate: 300 bit/s … 33.6 kbit/s

Connection: RJ-11C and Detachable screw terminal

Leased Line (LL)

2-wire Leased Line

Data rate: 300 bit/s … 33.6 kbit/s

Transmission range: PSTN 30 dB

Connection: Detachable screw terminal

RS-232

Data rate: 300 bit/s – 115.2 kbit/s

Connection: 9-pin D-sub female (DCE) and Detachable screw terminal (DCE )

Dimensions: 55 x 100 x 132 mm

Degree of protection: IP 20
