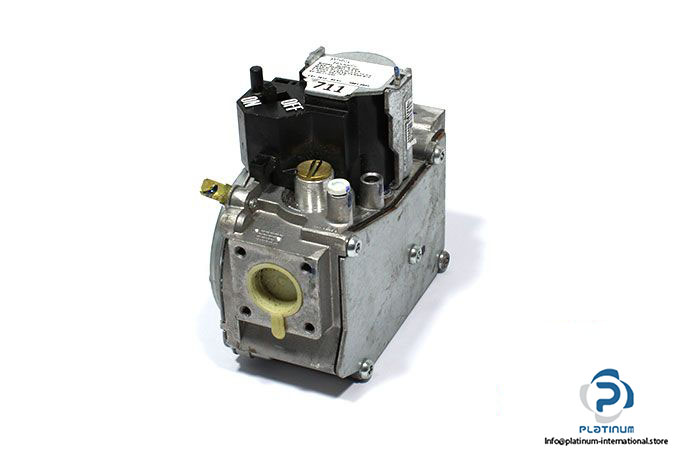

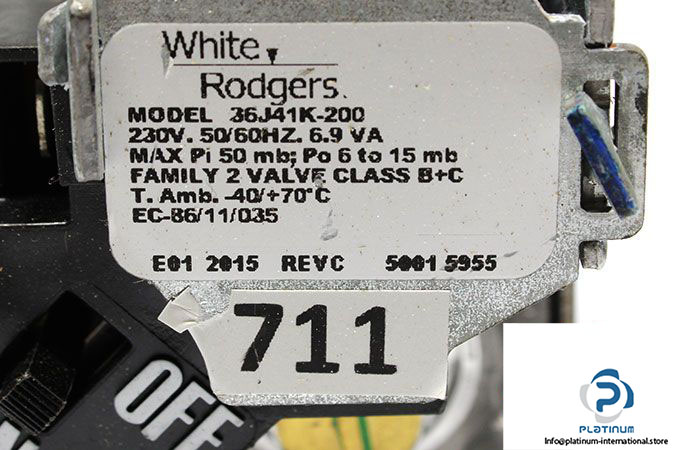

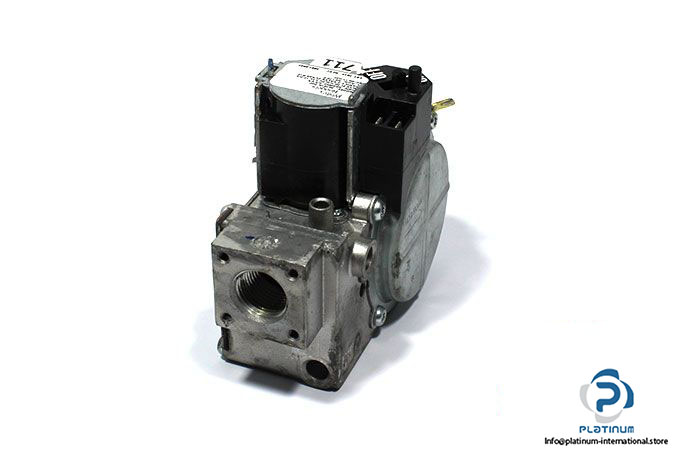

White-Rodgers 36J41K-200 E01 2015 Electronic Ignition GAS Valve

Manufacturer: WHITE-RODGERS
Type: ELECTRONIC IGNITION GAS VALVE
Model: 36J41K-200
Part No.: E01 2015

The 36J is a Combination Gas Control Valve Designed for use with
Non-Piloted Intermittent Ignition Systems. The Control is Designed to
meet Today’s Maximum Capacity, Smaller Size and High Efficiency
Gas Systems.
Uses: For Furnaces, Boilers and Heaters
Pressure Rating max. 50 mbar
Voltage 230 VAC
Power consumption: 6.9 VA
Current:
Regulator pressure: 6 … 15 mbar
Process connection: Female 1/2″
Working temp.: -40° to 70°C
Class: B+C
Type of Gases: Nat. Gas, LP Gas
