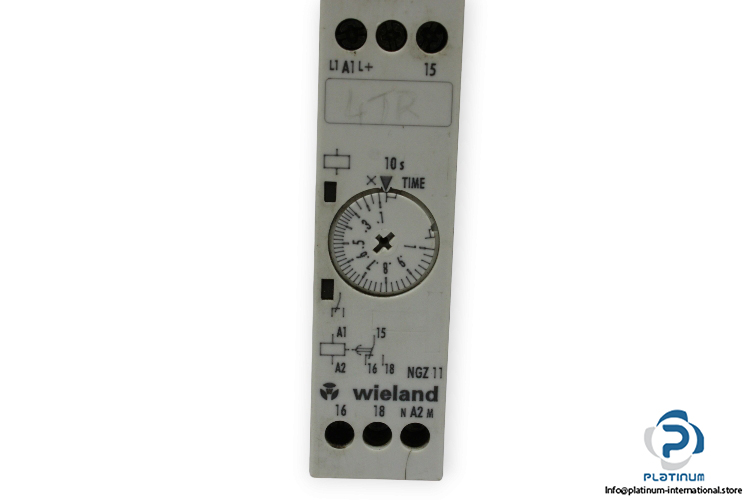

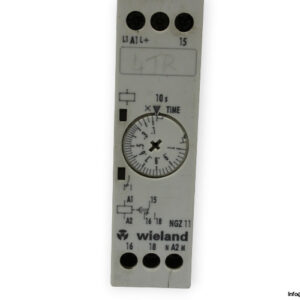

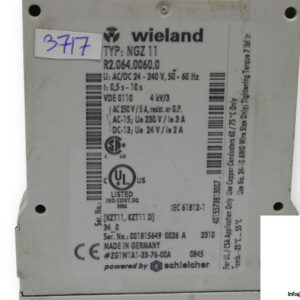

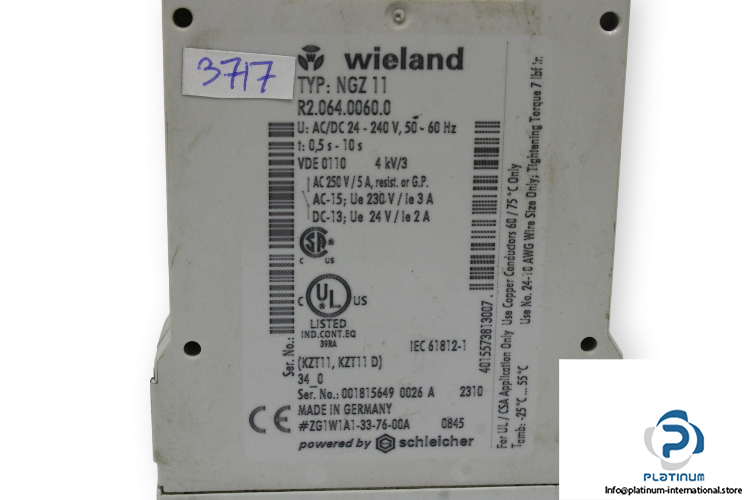

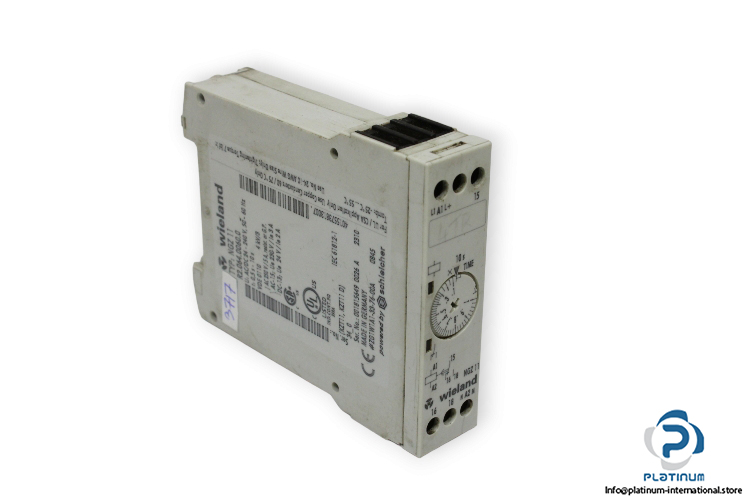

Wieland NGZ 11 Timer Relay

Manufacturer: Wieland
Type: Timer Relay
Model: NGZ11
Part No.: R2.064.0060.0

Input Circuit:
Rated Voltage: 24 … 240 V AC/DC
Rated Consumption AC: 3.5 VA / 1.7 W
Rated Consumption DC: 1.6 W
Rated Frequency: 50 … 60 Hz
Rated Current: 1 Ma
Output Circuit:
Contact Assignment: 1 Change-over contacts
Rated Operating Voltage: 24 … 240 V AC/DC
Rated Value for Limiting Continuous Current: 5 A
Min. Contact Load: ≥ 5 V AC/DC / ≥ 10 mA
Contact:
AC-15: 230 V AC, 3 A
DC-13: 24 V DC, 2 A
Protection Degree Housing / Terminals: IP 40 / IP 20
ON-Delay Time: 0.5 … 10 s
Ambient Temperature: -25 … +60 °C
Dimensions: 22.5 X 98 X 83 mm
