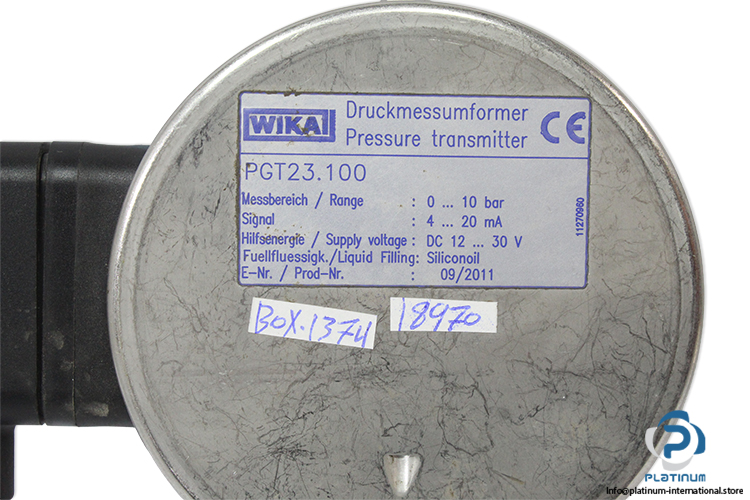

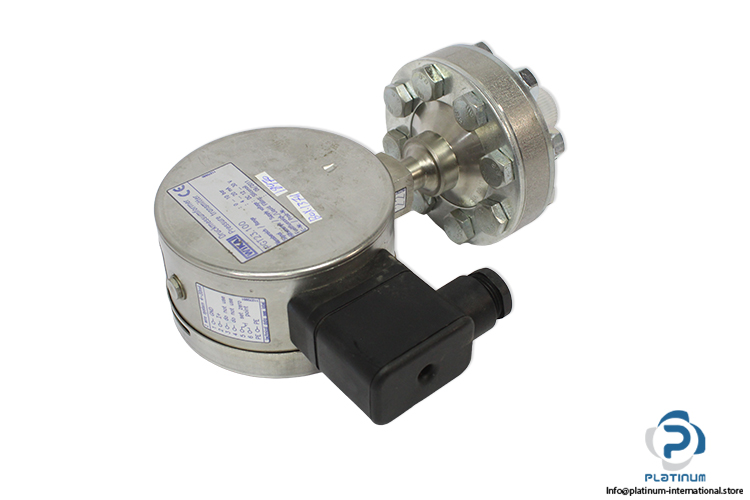

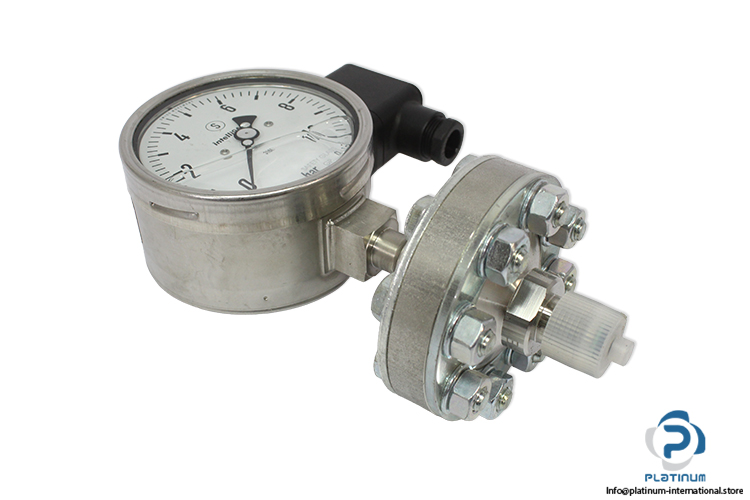

Wika PGT23.100 Pressure Gauge
Neu
Auf Lager1 EinheitVersandbereit
444,44$
Druckmessgerät mit elektrischem Ausgangssignal WIKA PGT23.100 Druckmessgerät mit 0–10 bar Bereich, 4–20 mA Ausgang, Edelstahlgehäuse und Membrandichtung für präzise industrielle Drucküberwachung.
0104-20990.10AnalogbarDiaphragmElectricalGaugeIndustrialmAOutputPGT23.100PressureProcessSealSignalstainlessSteelWIWikaWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

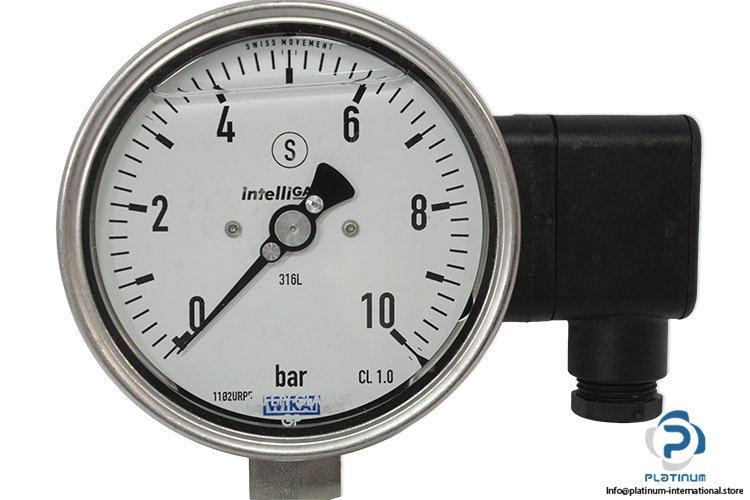

| Measuring Range | 0 ... 10 bar |

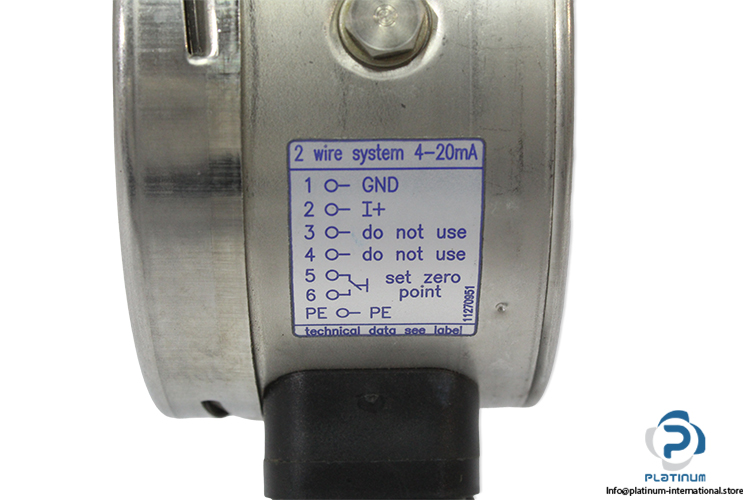

| Output Signal | 4 ... 20 mA (2-wire passive) |
| Supply Voltage | DC 12 V to 30 V |
| Liquid Filling | Silicon oil |
| Nominal Size | 100 mm |
| Standard | EN 837-1 ¦ ASME B40.100 |
| Window | Laminated safety glass ¦ Polycarbonate |
| Connection location | Lower mount (radial) ¦ Lower back mount 2) |
| Design Safety level “S3” per EN 837-1 | with solid baffle wall and blow-out back |
| Case filling | ¦Without ¦ Silicone oil M50 Instruments with case filling can be vented and resealed for internal pressure equalisation. |
| Movement | Stainless steel |
| Port Size | G1/2 |

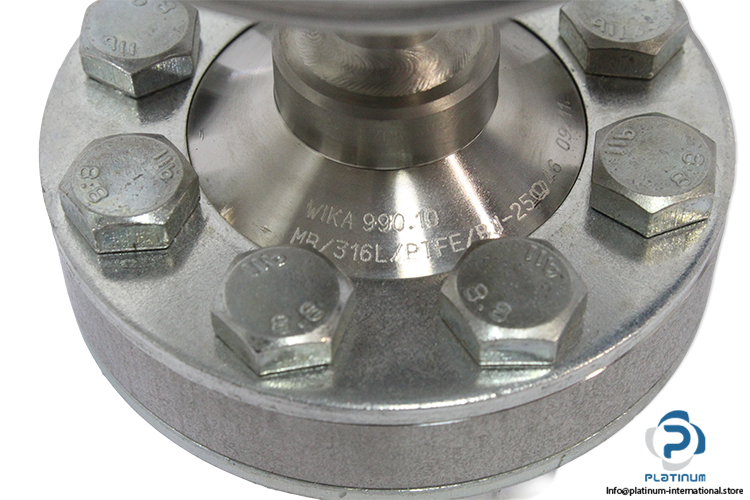

| ATTACHED WITH | WIKA 990.10 Diaphragm seal with threaded connection |
| Condition | New |
| SKU | 1096512 |
| Weight | 2,3 |
