WP-ARO 66605J-344 Double Diaphragm Pump

Name: WP-ARO 66605J-344 DOUBLE DIAPHRAGM PUMP
SKU: 1081357
Availability: LimitedAvailability

wp-aro-66605J-344-double-diaphragm-pump-(used)

wp-aro-66605J-344-double-diaphragm-pump-(used)-1

wp-aro-66605J-344-double-diaphragm-pump-(used)-2

wp-aro-66605J-344-double-diaphragm-pump-(used)-3

wp-aro-66605J-344-double-diaphragm-pump-(used)-4

wp-aro-66605J-344-double-diaphragm-pump-(used)-5

Gebraucht

Auf Lager1 EinheitVersandbereit

DOUBLE DIAPHRAGM PUMP

Compact and corrosion-resistant double diaphragm pump with 49.2 l/min max flow, 100 PSI pressure, and a polypropylene housing. Ideal for chemical and industrial fluid transfer.

Hersteller

WP-ARO

SKU

1081357

Kategorie

Other Mechanical Equipment

Zustand

Gebraucht

100 49.2 5108270 66605J344 Air chemical Diaphragm Double Fluid Industrial l/min Model Non-Stall NPT operated Polypropylene PSI pump Thread Transfer Valve WP-ARO

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

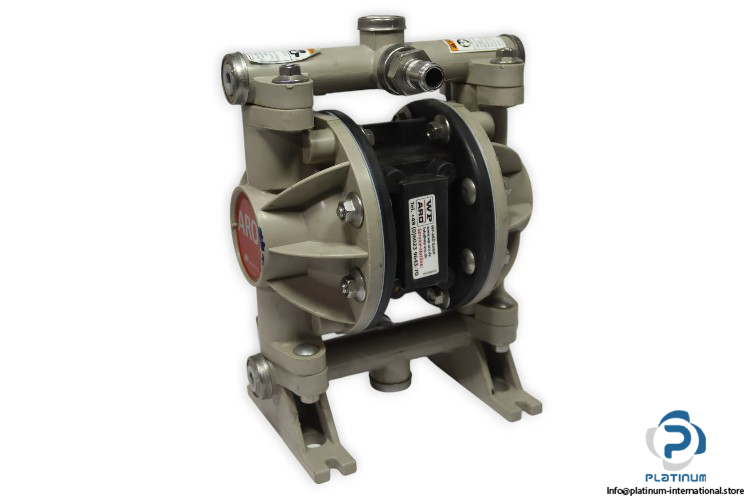

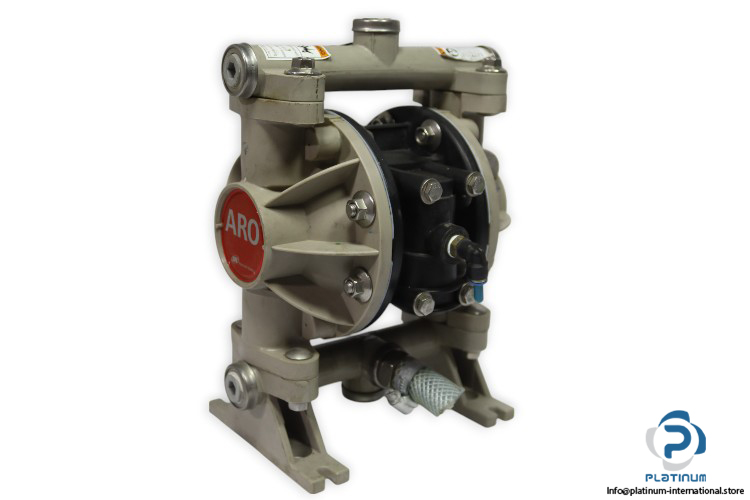

WP-ARO 66605J344 DOUBLE DIAPHRAGM PUMP

Heavy-duty double diaphragm pump engineered for high reliability and efficient fluid handling. With a durable polypropylene construction and no-stall air valve system, it ensures stable performance in industrial and chemical transfer applications.

Manufacturer: WP-ARO

Type: Double Diaphragm Pump

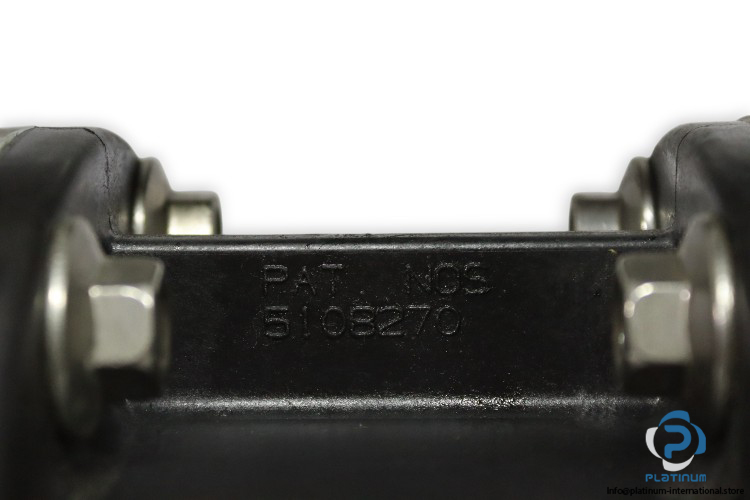

Part No.: 5108270

Model: 66605J344

Ref. Code: NOS / GK1159437

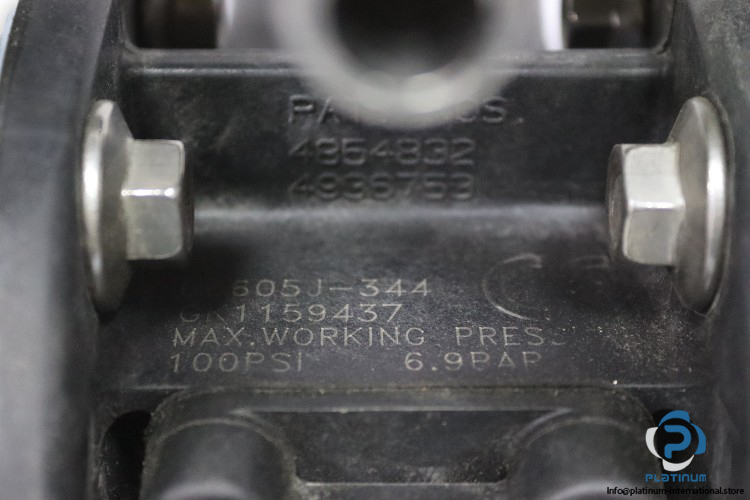

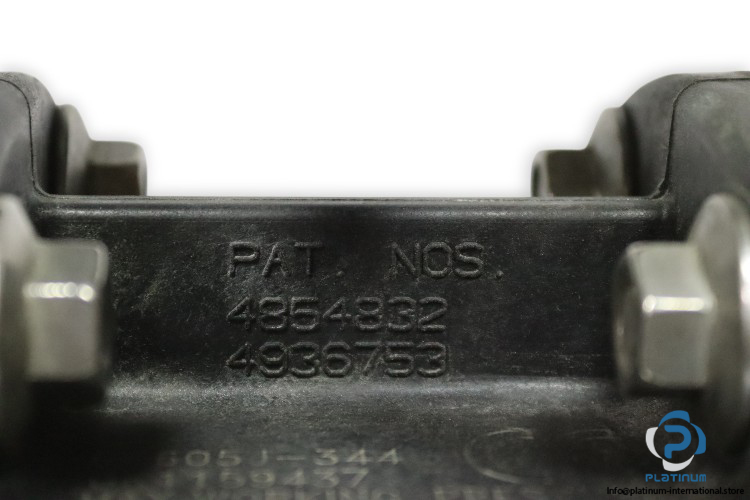

Ref. No.: 4854832, 4936753

Maximum Flow Rate	49.2 l/min
Max. Working Pressure	6.9 bar / 100 PSI
Maximum Solid Diameter	2.4 mm
Dry Suction Height Max.	4.5 m
Air Connection	0.25 inch female NPT thread
Material Inlet	0.5 inch female thread NPT
Material Outlet	0.5 inch female thread NPT
Wetted Housing Parts	Polypropylene “ Grey
Gear Ratio	1/1
Valve Style	Unbalanced air valve “ no-stall, reliable shift
