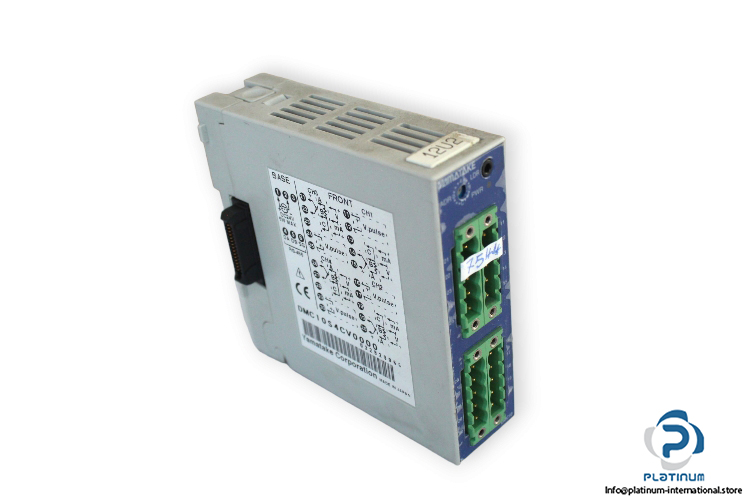

Yamatake DMC10 Distributed Multi-Channel Controller
333,33$
Hersteller: Yamatake Typ: Verteilter Mehrkanal-Controller Modell: DMC10 Teilenummer: DMC10S4CV0000
Manufacture: Yamatake
Type: Distributed Multi-Channel Controller
Model: DMC10
Part No.: DMC10S4CV0000
Rated power voltage: 24 V DC
Power consumption: 5 W
No. of control channels: 4

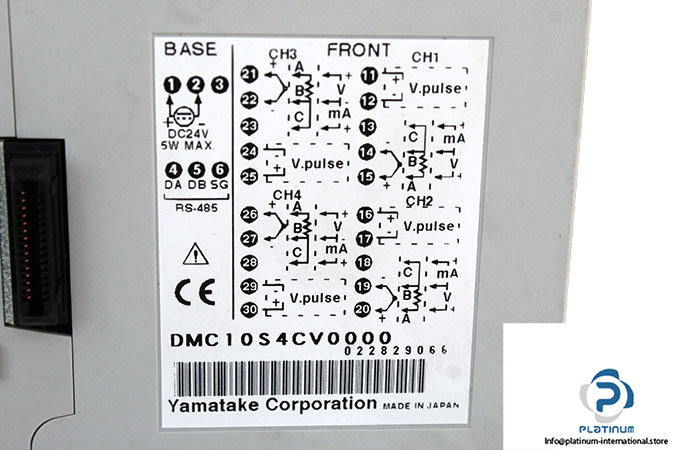

Connection method for external device: Connector
Input type: Thermocouple, RTD, DC voltage, DC current
Type of control output: Voltage pulse output (0 … 20 mA dc / 4 … 20 mA d)
No. of outputs: 4
Communications: RS-485 (3-wire type)
Indication accuracy: For the thermocouple B Under 260 °C ±5.0 %FS ±1U
260 … 800 °C ±1.0 %FS ±1U
800 … 1800 °C ±0.5 %FS ±1U
Operation temperature: 0 … 50 °C
Case material: Polycarbonate resin
