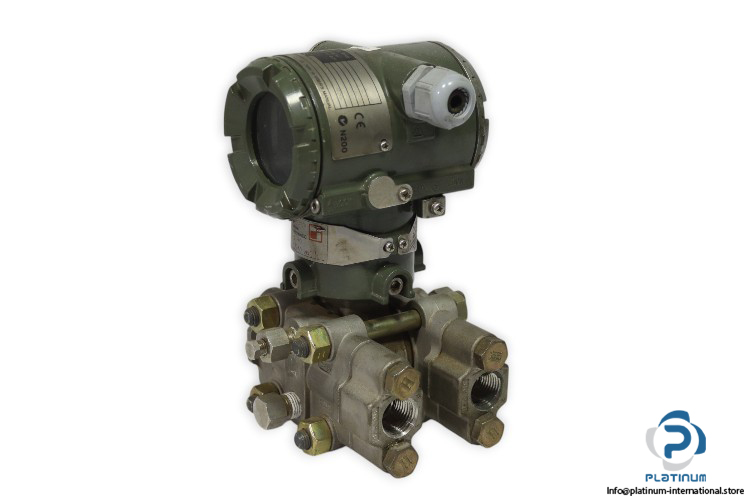

Yokogawa EJA110A Differential Pressure Transmitter
DIFFERENTIAL PRESSURE TRANSMITTER
Advanced industrial pressure transmitter with stainless steel construction, digital communication options, and IP67-rated housing. Ideal for high-pressure process control environments.YOKOGAWA EJA110A DIFFERENTIAL PRESSURE TRANSMITTER
High-performance differential pressure transmitter designed for critical process measurement and control. Built with stainless steel wetted parts and robust aluminum housing, this unit supports advanced digital communication and delivers accurate pressure readings under extreme industrial conditions.

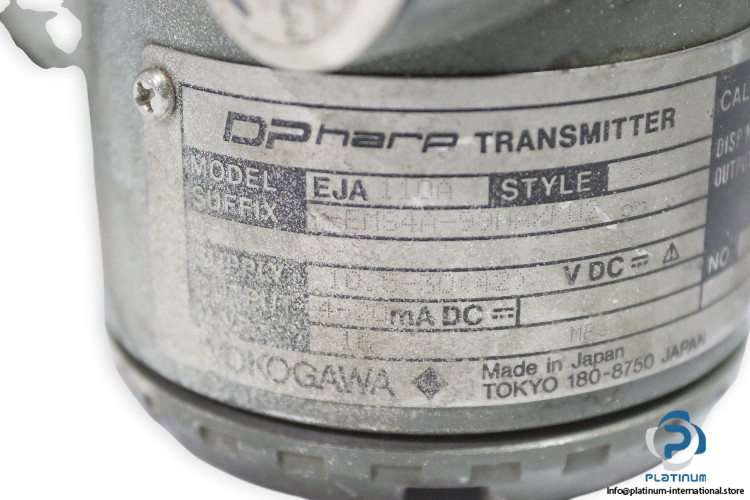

Manufacturer: Yokogawa
Type: Differential Pressure Transmitter
Model: EJA110A
MNR: EMS4A-99NA/KU2
Series: DPharp EJA

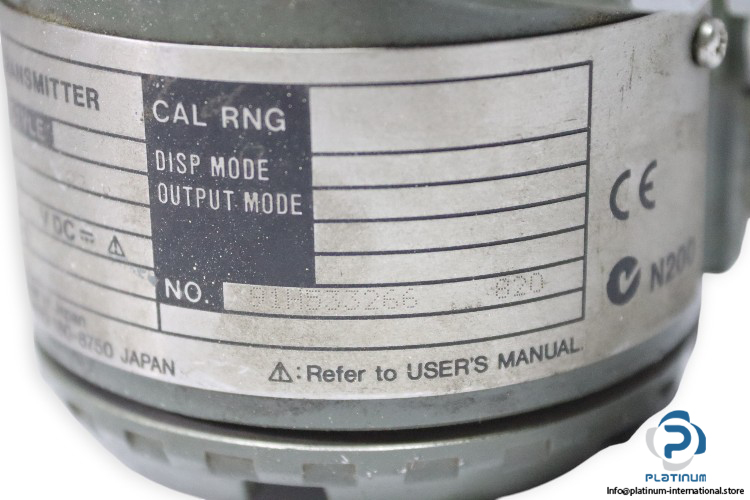

Part No.: 91H533266 820
Style: S1

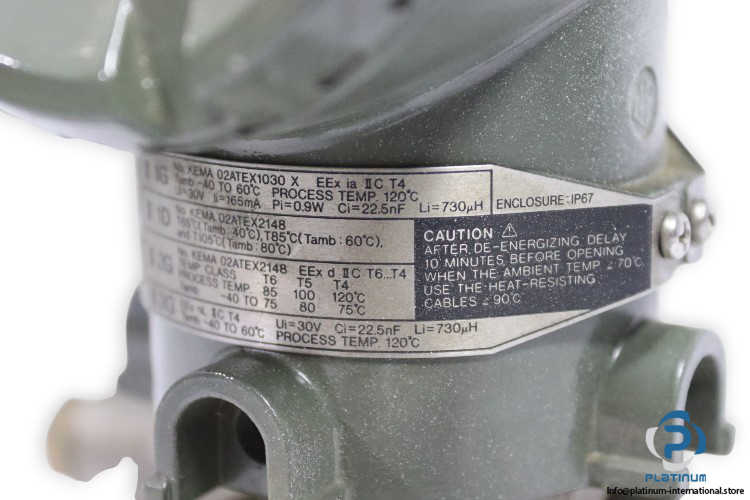

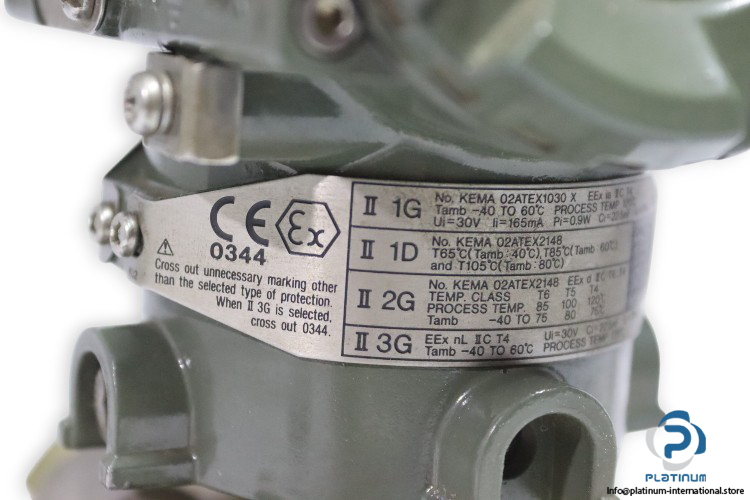

Certification:
KEMA 02ATEX1030 X Exx (-40 to 60°C, 120°C process temp, 30 V, 165 mA, 0.9 W, 22.5 nF, 730 mH)
KEMA 02ATEX2148 (65°C, 40°C)
KEMA 02ATEX2148 EEx d IIC -40 to 80°C
EEx nL IIC T4 (30 V, 22.5 nF, 730 mH, -40 to 80°C)
| Signal Output | 4 to 20¯mA DC with digital communication (HART, BRAIN, FOUNDATION Fieldbus, PROFIBUS PA) |
| Pressure Ranges | 0.5¯kPa to 14¯MPa |
| Max. Operating Pressure | 16 MPa |
| Power Supply | 10.5 to 42¯V DC |
| Material | Stainless steel wetted parts, die-cast aluminum housing |
| Protection Degree | IP67 |
| Temperature | Process up to 120¯°C / Ambient -40¯°C to +75¯°C |
| Connection | G1/2 |
