Zimmer SF100-180D4-C Flat Swivel Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Flat Swivel Unit
ZIMMER Flat Swivel Unit SF100-180D4-C offers 180° swivel angle, 15 Nm torque, and 4-way pneumatic energy transfer. With an operating pressure of 3 / 8 bar, this unit features a high axial bearing load and is built to operate in the temperature range of 5 / 80 °C.10015155174180250051.5AngleAxialbearingDimensionsEnergyFlatIndustrialLoadmmNNmPneumaticradialSF100-180D4-CSwivelSystemsTorqueTransferUnitxZimmer
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

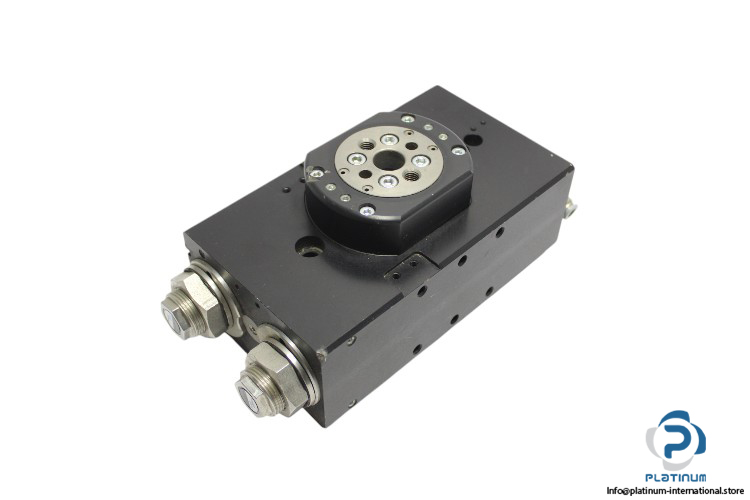

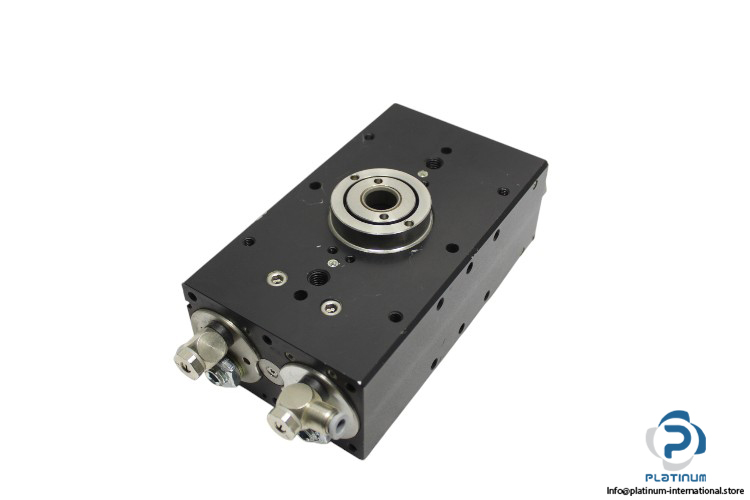

ZIMMER Flat Swivel Unit SF100-180D4-C
The ZIMMER Flat Swivel Unit SF100180D4C is designed for efficient energy transfer with a swivel angle of 180° and pneumatic energy transfer capabilities. With high torque and reliable bearing loads, this swivel unit is ideal for a variety of industrial applications, offering durable performance and precise movement.
Manufacturer: ZIMMER
Type: Flat Swivel Unit
Model: SF100-180D4-C

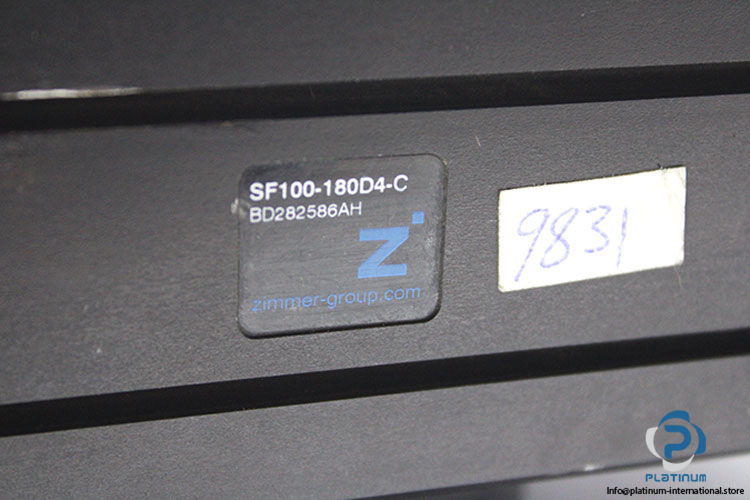

Part No.: BD282586AH
Technical Specifications
- Swivel Angle: 180°
- Torque: 15 Nm
- Pneumatic Energy Transfer: 4-Way
- Operating Pressure: 3 / 8 bar
- Passage Bore Diameter: 15 mm
- Axial Bearing Load: 2500 N
- Radial Bearing Load: 155 N
- Air Volume Per Cycle: 206 cm³
- Connection: 6 mm
- Protection Class: IP64
- Operating Temperature: 5 / 80 °C
- Dimensions: 100 x 51.5 x 174 mm
