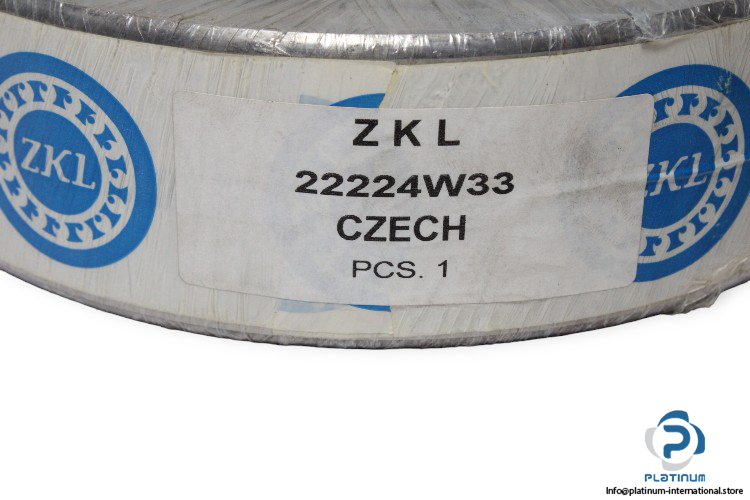

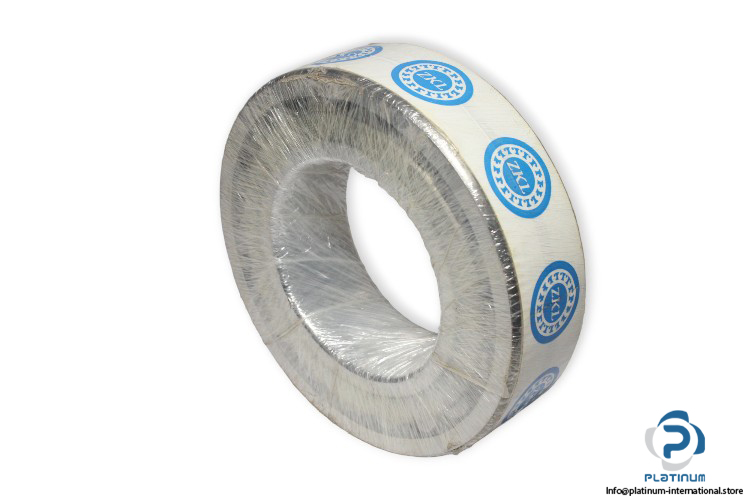

ZKL 22224W33 Spherical Roller Bearing
Manufacturer: ZKL
Type: Spherical Roller Bearing
Model: 22224 W33
Dimensions
Bore Diameter d: 120 mm
Outer diameter D: 215 mm
Width B: 58 mm
Basic dynamic load rating: 608 kN
Basic static load rating: 775 kN
Fatigue load limit: 81 kN
Reference speed – grease: 1900 rpm
Reference speed – oil: 2600 rpm
Lubrication: W33; groove and lubrication bores on the outer ring
