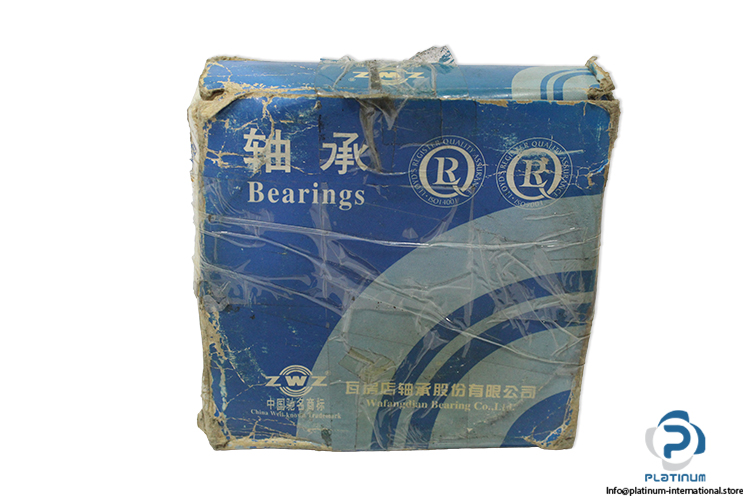

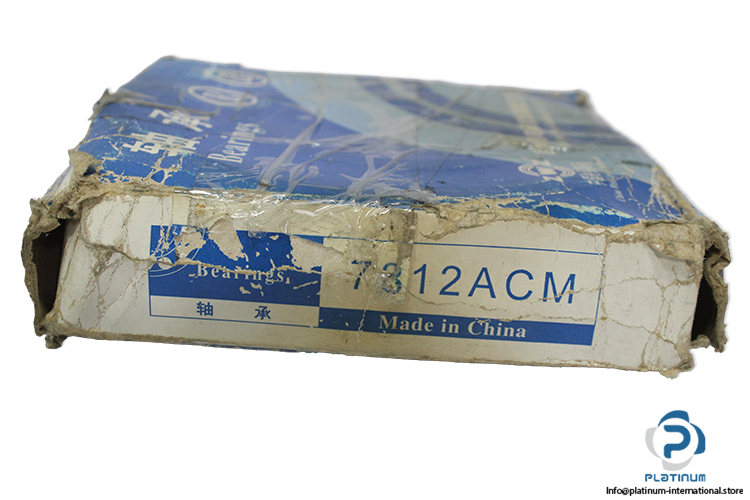

ZWZ 7312 ACM Angular Contact Ball Bearing
Neu
Auf Lager1 EinheitVersandbereit
59,99$
Schrägkugellager Einreihiges ZWZ-Schrägkugellager mit 30° Kontaktwinkel, bearbeitetem Messingkäfig und hoher Tragfähigkeit für industrielle Anwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
ZWZ 7312ACM Angular Contact Ball Bearing
The ZWZ 7312ACM is a single row angular contact ball bearing designed to support combined radial and axial loads while maintaining stable performance at high operating speeds. Its optimized contact angle and machined brass cage ensure durability and reliable operation in demanding industrial applications.
Manufacturer: ZWZ
Type: Single Row Angular Contact Ball Bearing
Model: 7312ACM
Load Ratings & Speed
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 31 mm |
| Contact Angle | 30 Degrees |
| Basic Dynamic Load Rating (Cr) | 105 kN |
| Basic Static Load Rating (C0r) | 67.0 kN |
| Limit Speed (Oil) | 6000 RPM |
| Limit Speed (Grease) | 4500 RPM |
| Cage | Machined Brass Cage |
