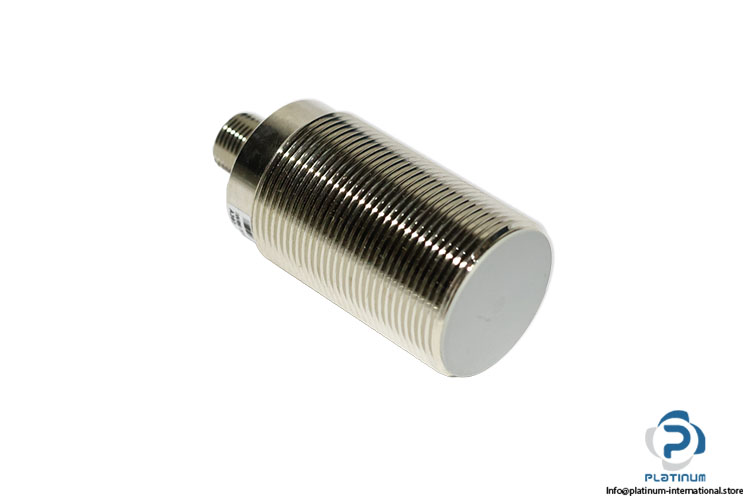

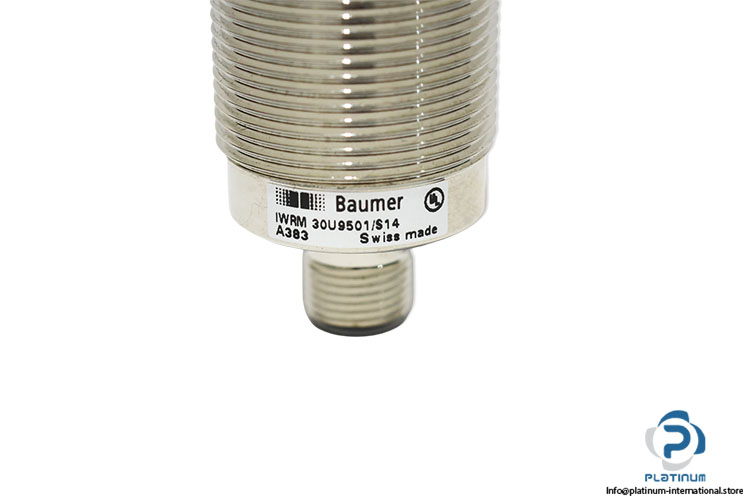

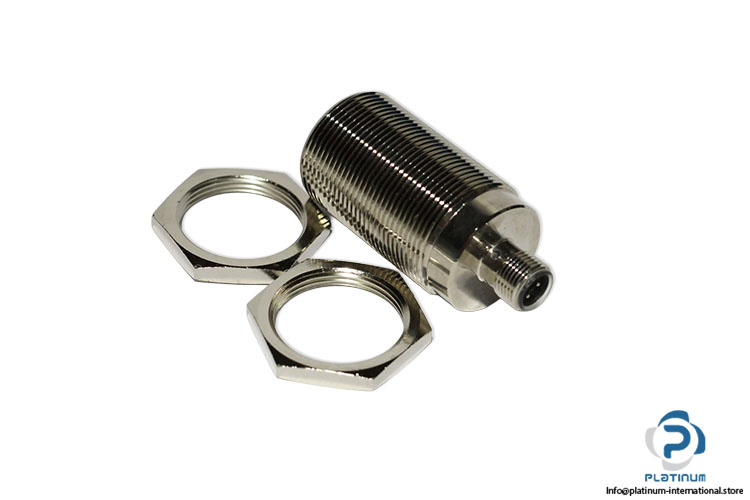

Baumer Iwrm 30U9501/S14 Inductive Proximity Sensor
| Art No | 10118774 |
| Mounting type | Flush |
| Measuring distance Sd | 5 … 10 mm |
| Reference distance | 7.1 … 7.9 mm |
| Measuring speed | 1.5 mm / ms |
| Repeat accuracy | 0.02 mm |
| Linearity error | ± 200 µm |
| Temperature coefficient | 1 µm / (K mm) |
| Voltage supply range +Vs | 15 … 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | Analog 1 ... 9 VDC |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 30 mm |
| Housing length | 60 mm |

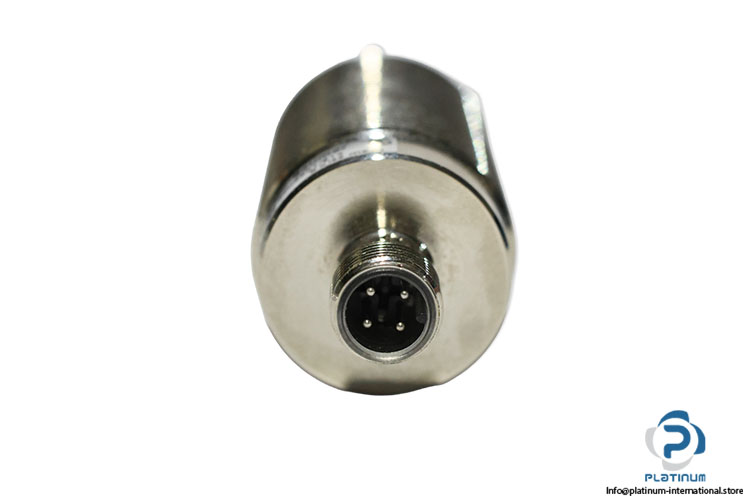

| Connection types | M12,4-pins |
| Operating temperature | 0 … +60 °C |
| Protection class | IP 67 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100939 |
| Weight | 0,17 |
