Eaton LS-11-ZB Safety Position Switch
新着
在庫あり1 ユニット即納可能
Safety Position Switch
The EATON LS-11-ZB is a robust safety position switch with IP66 protection, slow action switching, and wide operating temperature range, designed for dependable industrial safety applications.
大量在庫
グローバル配送
専門的なサポート
品質保証

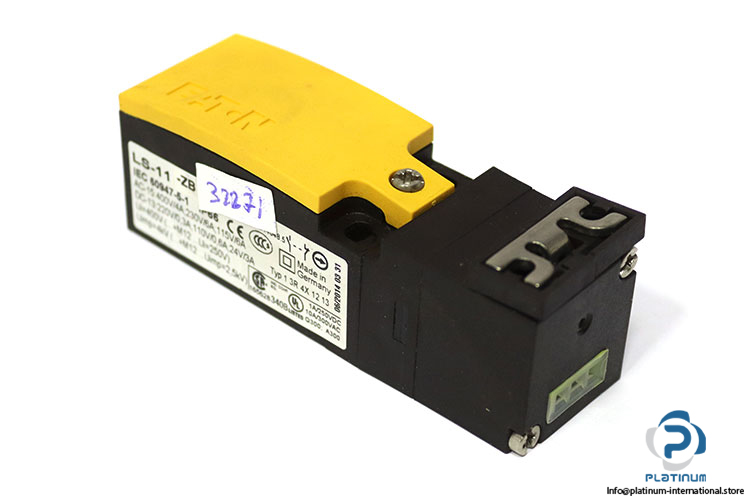

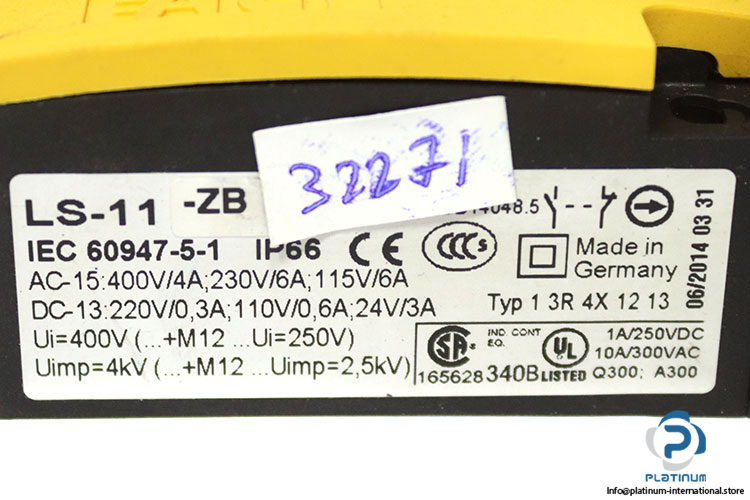

EATON LS-11-ZB Safety Position Switch
The EATON LS-11-ZB Safety Position Switch is built for reliable position detection and machine safety applications. Designed to meet international safety standards, it delivers robust performance, long service life, and dependable switching under industrial operating conditions.
Manufacturer: EATON
Type: Safety Position Switch
Model: LS-11-ZB
Catalog Number: 106819
| Standards | IEC EN 60947 |
| Climatic Proofing | Damp heat constant to IEC 60068-2-78; damp heat cyclical to IEC 60068-2-30 |
| Ambient Temperature | minus 25 to plus 70 degree Celsius |
| Degree of Protection | IP66 |
| Solid Conductors | 1 x 0.5 to 1.5 mm squared, 2 x 0.5 to 1.5 mm squared |
| Flexible with Ferrule | 1 x 0.5 to 1.5 mm squared, 2 x 0.5 to 1.5 mm squared |
| Terminal Screw | PH1 |
| Tightening Torque for Terminal Screw | 0.4 Newton meters |
| Rated Impulse Withstand Voltage Uimp | 4000 V AC |
| Rated Insulation Voltage Ui | 400 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Width of Sensor | 30 millimeters |
| Diameter of Sensor | 0 millimeters |
| Height of Sensor | 96 millimeters |
| Length of Sensor | 33.35 millimeters |
| Rated Operation Current at AC15 24 V | 10 A |
| Rated Operation Current at AC15 125 V | 6 A |
| Rated Operation Current at AC15 230 V | 6 A |
| Rated Operation Current at DC13 24 V | 3 A |
| Rated Operation Current at DC13 125 V | 0.8 A |
| Rated Operation Current at DC13 230 V | 0.3 A |
| Switching Function | Slow action switch |
| Housing Material | Plastic |
