Eaton LS-11-ZB Safety Position Switch

In stock1 unitReady to ship

Safety Position Switch

The EATON LS-11-ZB is a robust safety position switch with IP66 protection, slow action switching, and wide operating temperature range, designed for dependable industrial safety applications.

Manufacturer
EATON
SKU
1084284
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

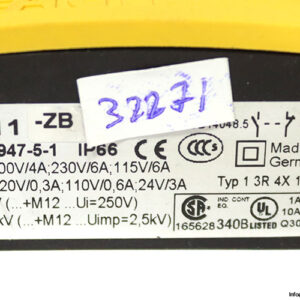

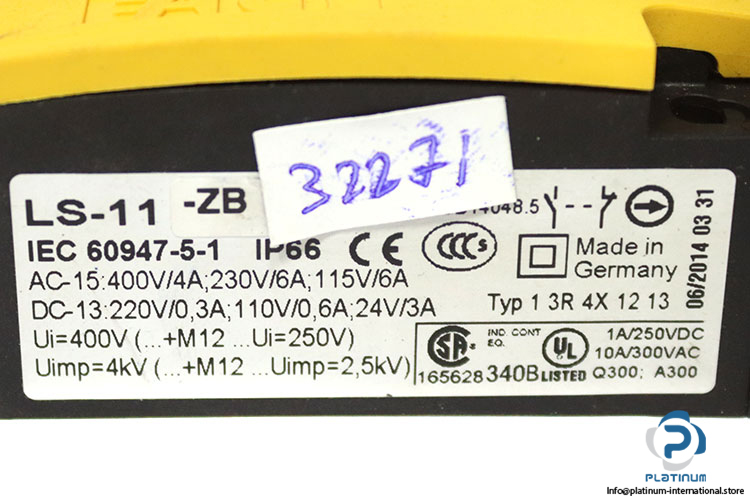

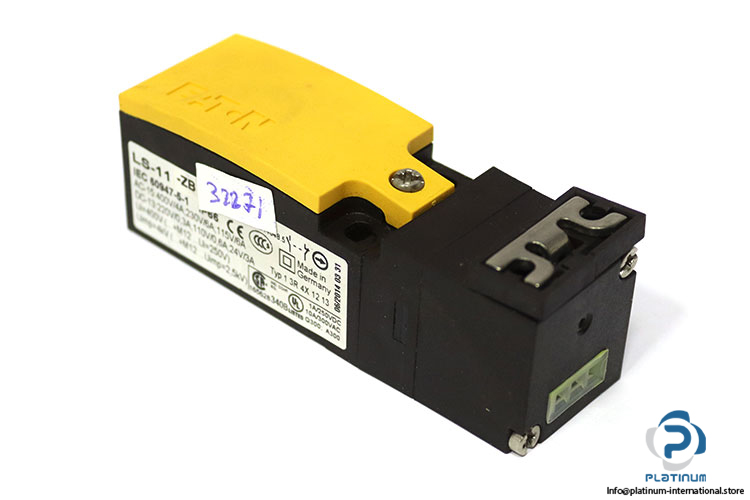

EATON LS-11-ZB Safety Position Switch

The EATON LS-11-ZB Safety Position Switch is built for reliable position detection and machine safety applications. Designed to meet international safety standards, it delivers robust performance, long service life, and dependable switching under industrial operating conditions.

Manufacturer: EATON

Type: Safety Position Switch

Model: LS-11-ZB

Catalog Number: 106819

StandardsIEC EN 60947
Climatic ProofingDamp heat constant to IEC 60068-2-78; damp heat cyclical to IEC 60068-2-30
Ambient Temperatureminus 25 to plus 70 degree Celsius
Degree of ProtectionIP66
Solid Conductors1 x 0.5 to 1.5 mm squared, 2 x 0.5 to 1.5 mm squared
Flexible with Ferrule1 x 0.5 to 1.5 mm squared, 2 x 0.5 to 1.5 mm squared
Terminal ScrewPH1
Tightening Torque for Terminal Screw0.4 Newton meters
Rated Impulse Withstand Voltage Uimp4000 V AC
Rated Insulation Voltage Ui400 V
Overvoltage Category / Pollution DegreeIII / 3
Width of Sensor30 millimeters
Diameter of Sensor0 millimeters
Height of Sensor96 millimeters
Length of Sensor33.35 millimeters
Rated Operation Current at AC15 24 V10 A
Rated Operation Current at AC15 125 V6 A
Rated Operation Current at AC15 230 V6 A
Rated Operation Current at DC13 24 V3 A
Rated Operation Current at DC13 125 V0.8 A
Rated Operation Current at DC13 230 V0.3 A
Switching FunctionSlow action switch
Housing MaterialPlastic
