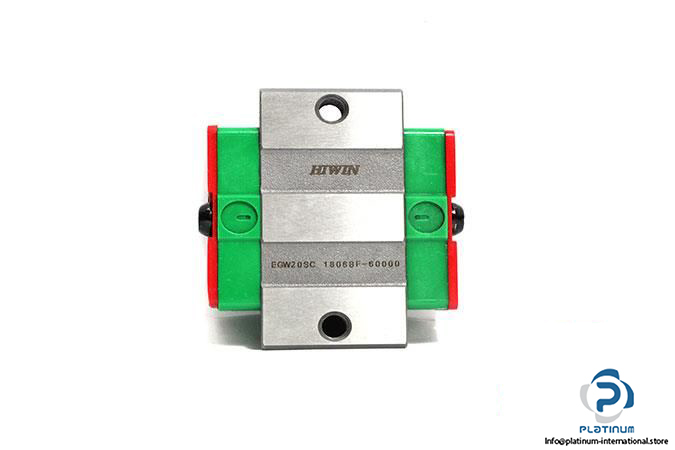

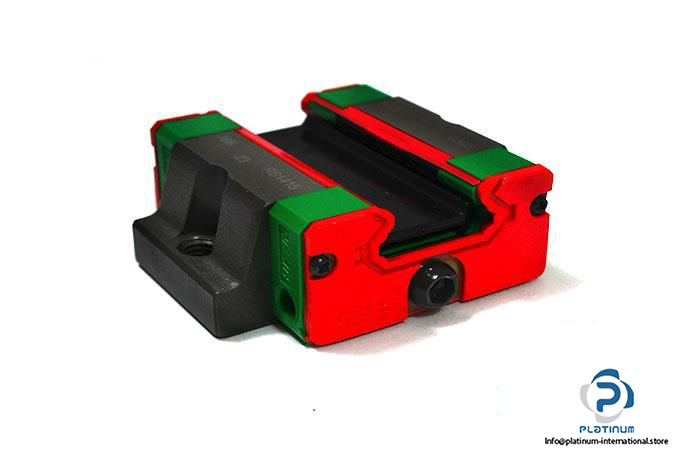

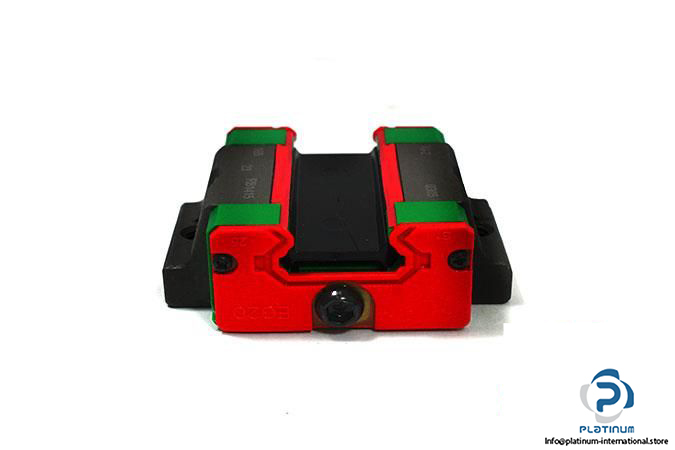

Hiwin EGW20SC Linear Guideway Block
HIWIN EGW 20SC LINEAR GUIDEWAY BLOCK
This high-precision linear guideway block from Hiwin offers smooth motion and high load capacity in a compact flange-type design. Suitable for medium load applications, it features robust construction and flexible mounting from above or below.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 20SC 18068F-60000
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 50 mm |
| Block Height | 22 mm |
| Distances Between Holes | 49 mm |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
| Thread Size | M6 |
| Block Type | Flange |
| Load Type | Medium Load |
| Block Mounting Type | From Above or Below |
| Basic Dynamic Load Rating C | 7.23 kN |
| Basic Static Load Rating C‚ | 12.74 kN |
