Hiwin EGW20SC Linear Guideway Block
Nuevo
En stock61 unidadesListo para enviar
55,99$
BLOQUE DE GUÍA LINEAL Bloque lineal tipo brida Hiwin de tamaño 20 mm, capacidad de carga dinámica de 7,23 kN y opciones de montaje dual, diseñado para sistemas de movimiento lineal de precisión con carga media.
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

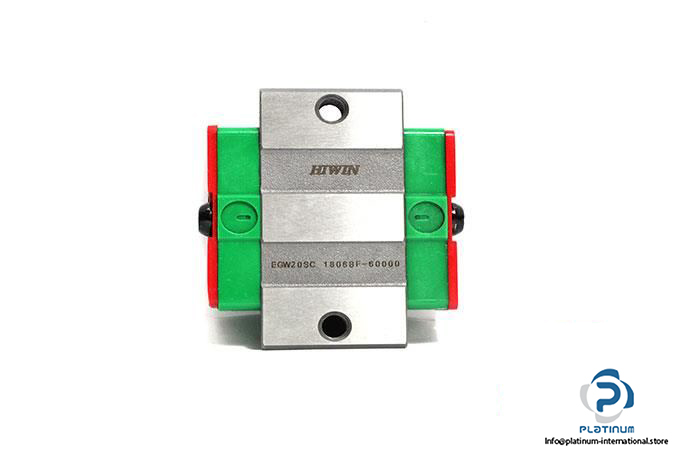

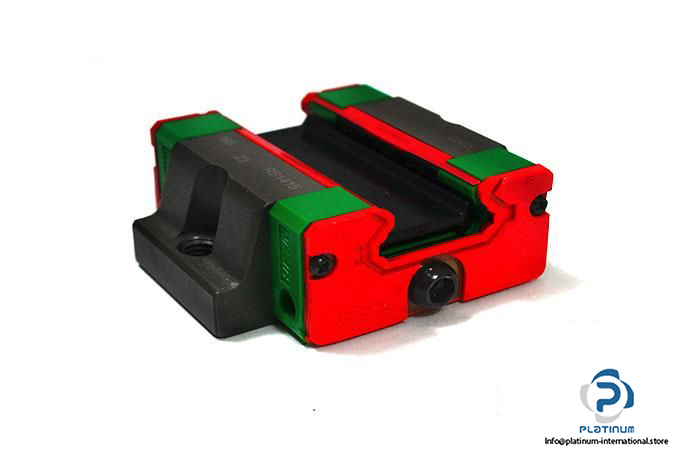

HIWIN EGW 20SC LINEAR GUIDEWAY BLOCK
This high-precision linear guideway block from Hiwin offers smooth motion and high load capacity in a compact flange-type design. Suitable for medium load applications, it features robust construction and flexible mounting from above or below.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 20SC 18068F-60000
| Size | 20 mm |
| Total Height H | 28 mm |
| Block Width W | 59 mm |
| Block Length L | 50 mm |
| Block Height | 22 mm |
| Distances Between Holes | 49 mm |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
| Thread Size | M6 |
| Block Type | Flange |
| Load Type | Medium Load |
| Block Mounting Type | From Above or Below |
| Basic Dynamic Load Rating C | 7.23 kN |
| Basic Static Load Rating C‚ | 12.74 kN |
