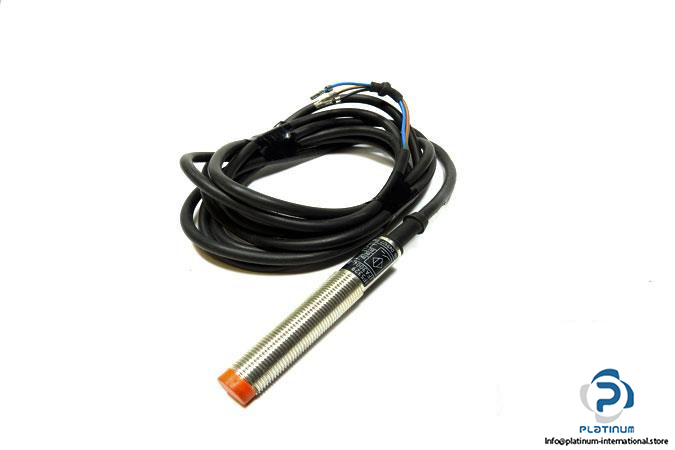

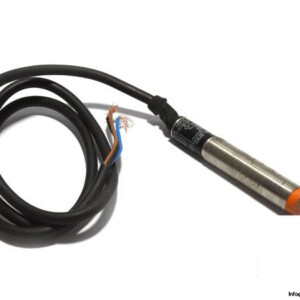

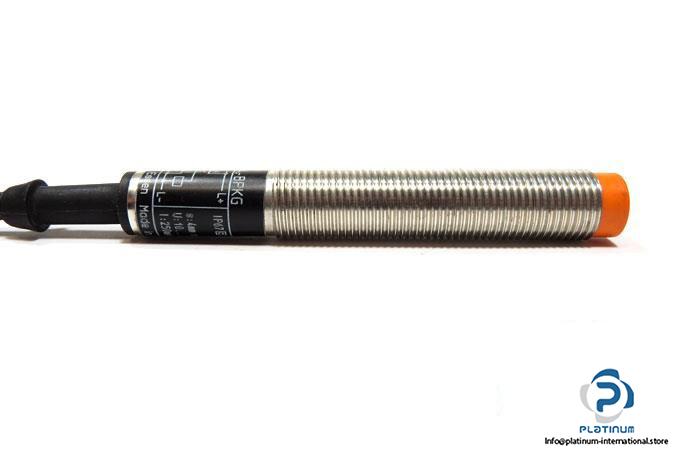

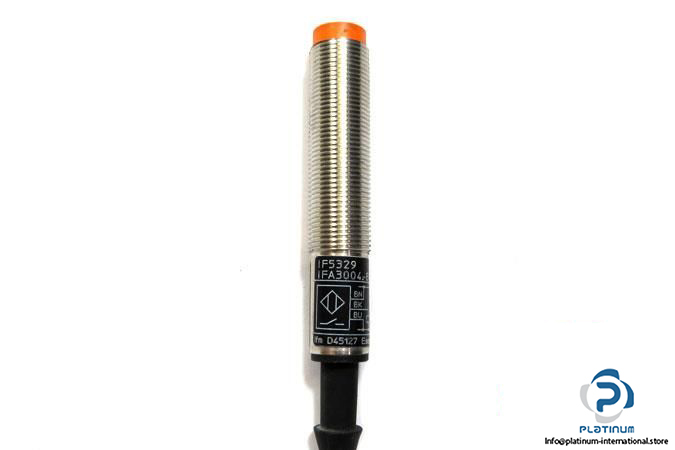

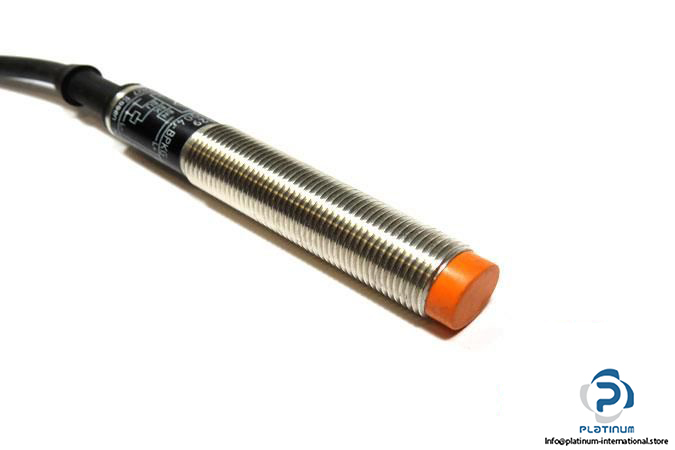

IFM IF5329 Inductive Sensor
新着
Manufacturer: ifm
Type: INDUCTIVE SENSOR

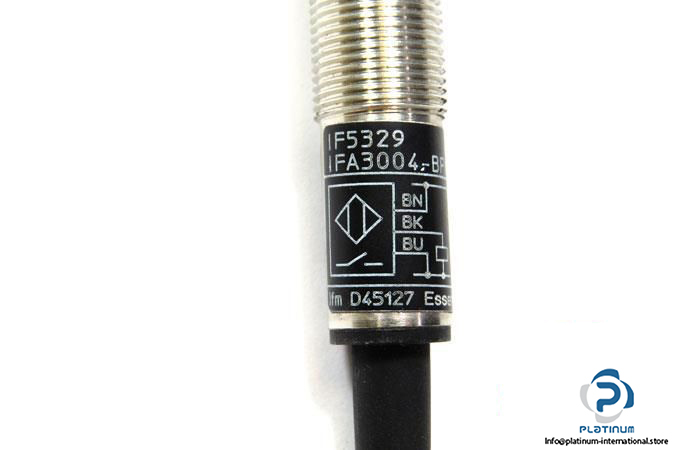

Part No.: IF5329
MRN: IFA3004-PBKG
Sensing Range: 4 mm
Real Sensing Range: 4 ± 10% mm
Operating Distance: 0 … 3.25 mm
Operating Voltage: 10 … 36 V DC
Voltage drop max.: 2.5 V DC
Switching output current: 250 mA DC
Current Consumption: 15 mA DC
Switching frequency: 400 Hz DC
Electrical Design: PNP
Output Function: Normally open
Connector type, length: PVC Cable ,2 m
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80°C
Diameter, Housing length: 12 , 71 mm
Material: Stainless steel , PBT
Mounting: Non-flush mountable
Weight: 100 g
