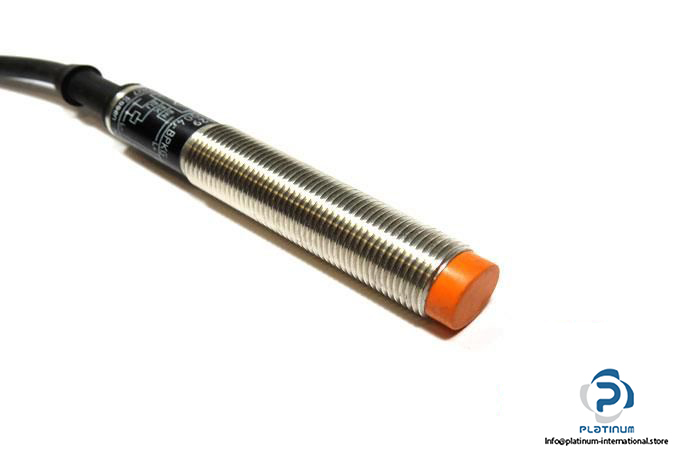

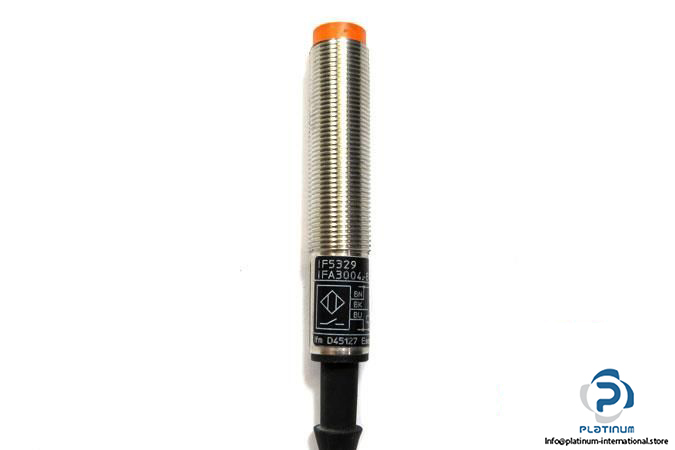

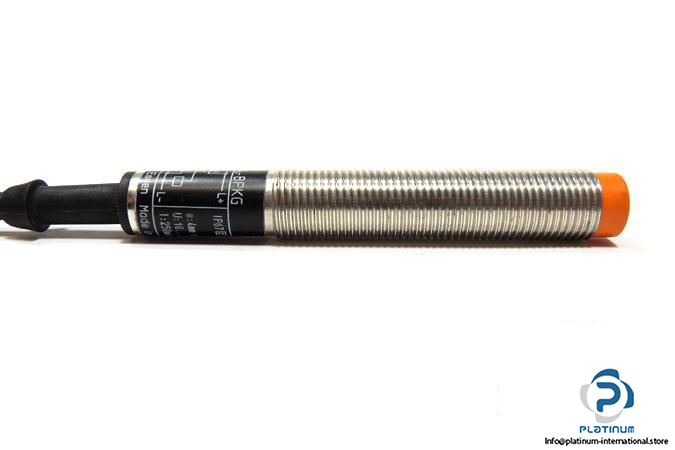

IFM IF5329 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IF5329

MRN: IFA3004-PBKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Voltage drop max.: 2.5 V DC

Switching output current: 250 mA DC

Current Consumption: 15 mA DC

Switching frequency: 400 Hz DC

Electrical Design: PNP

Output Function: Normally open

Connector type, length: PVC Cable ,2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 12 , 71 mm

Material: Stainless steel , PBT

Mounting: Non-flush mountable

Weight: 100 g
