IMG IMG40S-8-ABN-PT-07 Incremental Encoder
新着
在庫あり3 単位即納可能
高精度インクリメンタルエンコーダーで、ソリッドシャフト、IP64保護、1回転あたり8分解能を備えています。産業用モーションコントロールアプリケーション向けにプッシュプル出力とM16 5ピンコネクタを備えています。
405-pinAutomationControlEncoderFlangeforHigh-ResolutionIncrementalIndustrialIP64M16mAmmMotionPLCPositioningPrecisionPush-PullRatedRotarySensorshaftSolidSystems
大量在庫
グローバル配送
専門的なサポート
品質保証

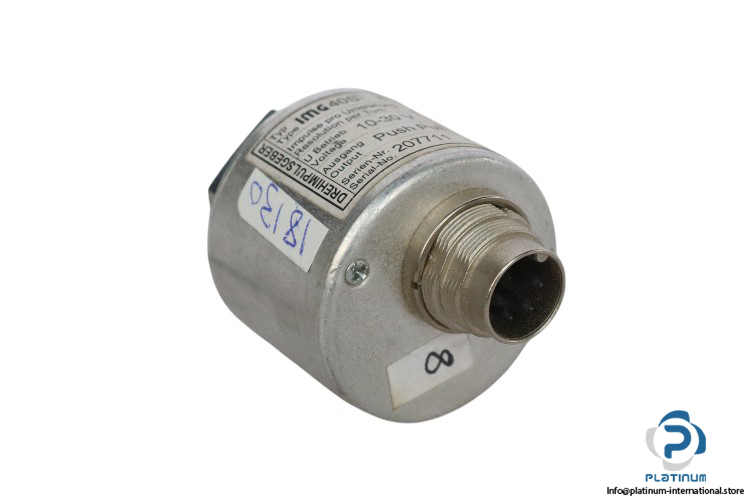

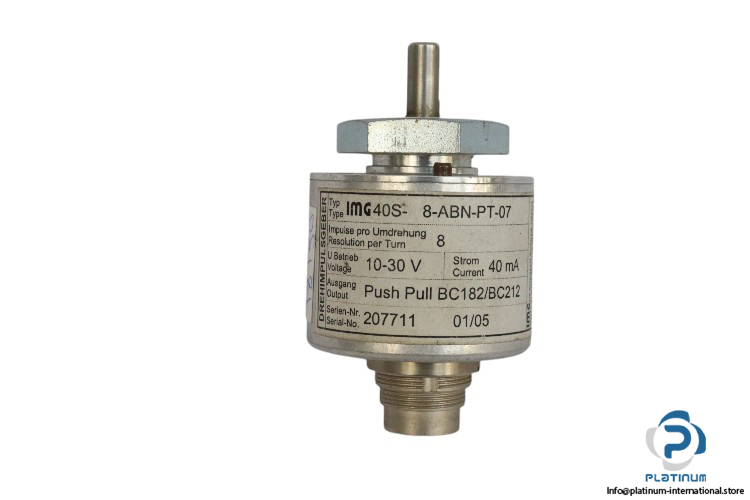

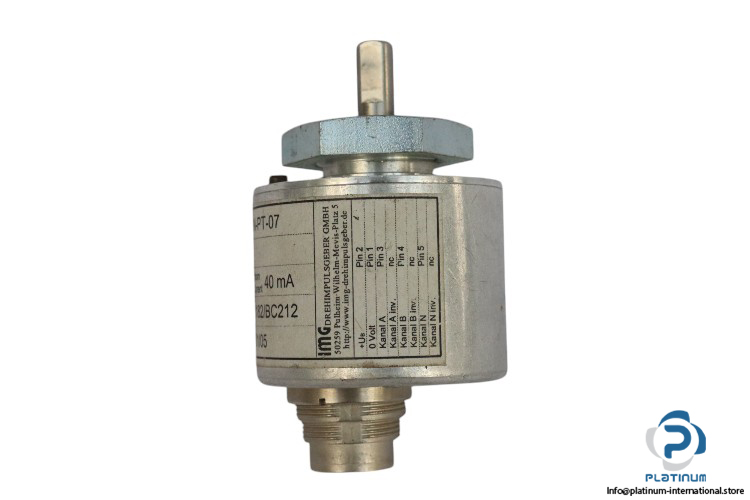

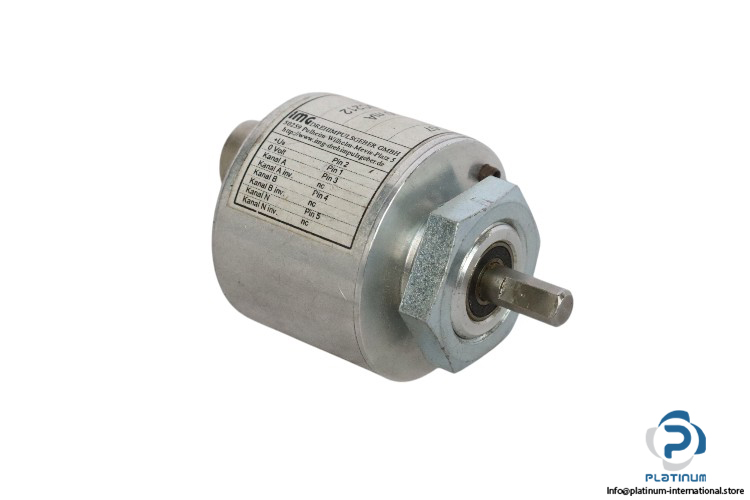

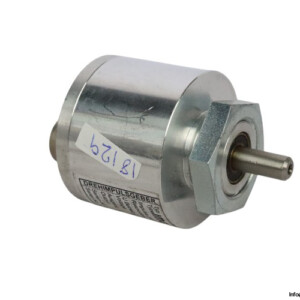

IMG IMG40S8ABNPT07 Incremental Encoder
The IMG40S8ABNPT07 is a high-precision incremental encoder designed for industrial applications requiring reliable motion control feedback. With its robust solid shaft and high-quality materials, it ensures durability and performance in demanding environments.
Key Details:
Manufacturer: IMG
Type: Incremental Encoder
Model: IMG40S8ABNPT07
Materials:
Environmental Conditions:
The IMG40S8ABNPT07 incremental encoder is an excellent choice for precise motion control applications, offering reliable performance in industrial automation systems.
| Shaft Type | Solid Shaft |
| Operating Voltage | 10 to 30 V DC |
| Input Current | 40 mA |
| Output Load | 80 mA |
| Shaft Diameter | 6 mm |
| Resolution | 8 Resolution/turn |
| Protection Degree | IP64 |
| Output Circuit | Push Pull |
| Output Signals | A, B, N |
| Connection | Connector M16, 5-Pins |
| Flange | 40 mm |
| Housing | Aluminum solid |
| Shaft | Stainless Steel |
| Operating Temperature | 0 to +80 °C |
