LD 200/24V Automatic Electronic Condensate Drain

Name: LD 200/24V AUTOMATIC ELECTRONIC CONDENSATE DRAIN
Brand: LABOM
SKU: 1083993
Availability: LimitedAvailability

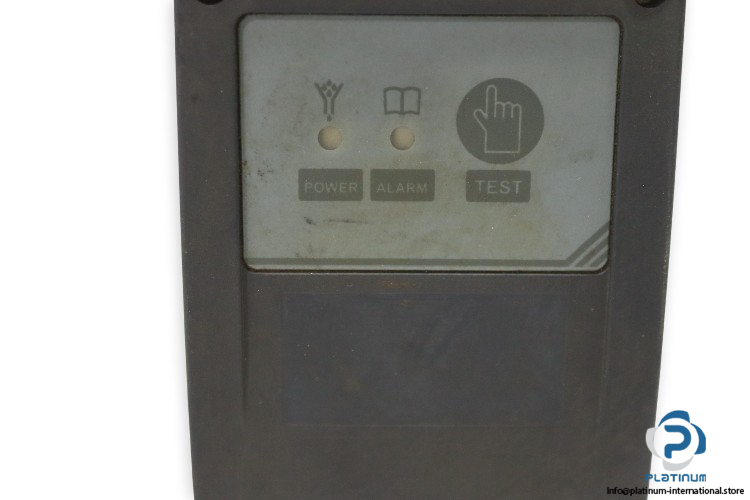

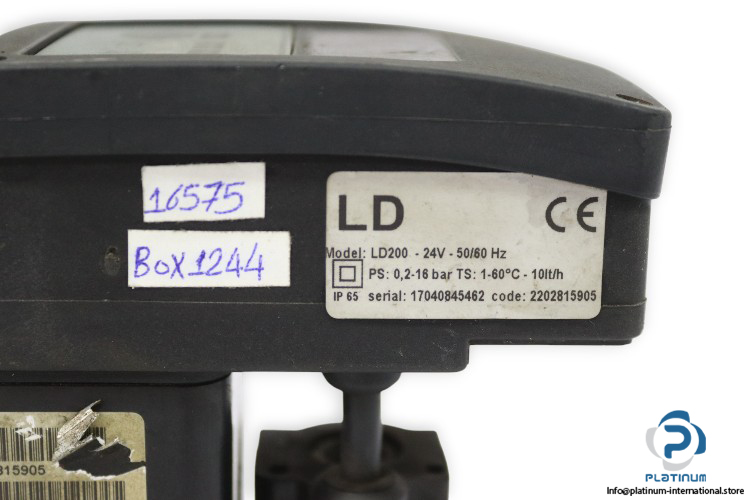

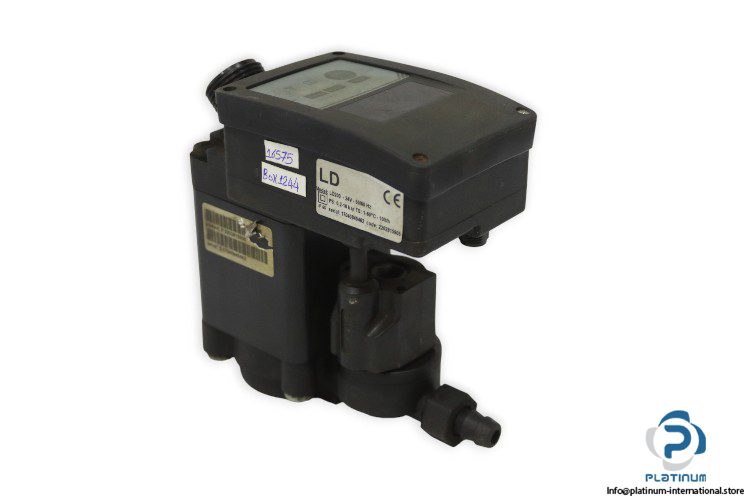

LD200-24V-automatic-electronic-condensate-drain(used)

LD200-24V-automatic-electronic-condensate-drain(used)-1

LD200-24V-automatic-electronic-condensate-drain(used)-2

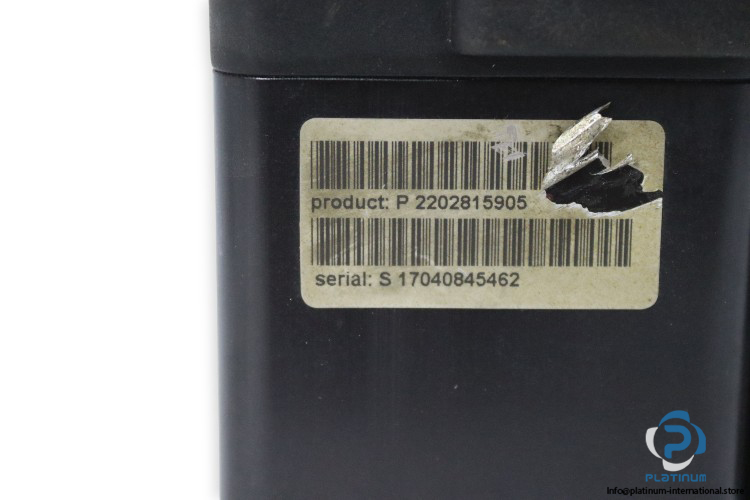

LD200-24V-automatic-electronic-condensate-drain(used)-3

中古

在庫あり1 ユニット即納可能

Automatic Electronic Condensate Drain

The LD 200/24V condensate drain operates at 24 V, handling pressures up to 16 bar and flow up to 10 liters per hour. It features IP65 protection, M12 alarm connection, and compact construction for reliable air system drainage.

メーカー

LABOM

SKU

1083993

カテゴリ

Other Mechanical Equipment

コンディション

中古

175301 200/24V 24 Air alarm Automatic Compressed Condensate connection Device drain Electronic EN Industrial IP65 LD M12 System V Valve

大量在庫

グローバル配送

専門的なサポート

品質保証

LD 200/24V Automatic Electronic Condensate Drain

The LD 200/24V Automatic Electronic Condensate Drain is designed to efficiently remove condensate from compressed air systems. It offers reliable electronic control, high discharge capacity, and durable IP65 protection for consistent operation in industrial environments.

Type: Automatic Electronic Condensate Drain

Model: LD 200/24V

Serial Number: 17040845462

Code: 2202815905

Series: LD

Rated Voltage	24 V, 50/60 Hz
Pressure Range (PS)	0.2 to 16 bar
Flow Capacity	10 liters per hour
Temperature Range	1 to 60 degree Celsius
Protection Class	IP65
Electric Connection	EN 175301-803 Type B
Alarm Connection	M12 Code A 4 poles
Inlet Connection	1 x G1 by 2 F
Connection	G3 by 4
Dimension	155 x 163 x 69 millimeters
