Nadella PFVR50.25 Guide Roller
Manufacturer: NADELLA
Type: Guide rollers PFVR with gothic arch profile
Model: PFVR 50.25
Design: Eccentric

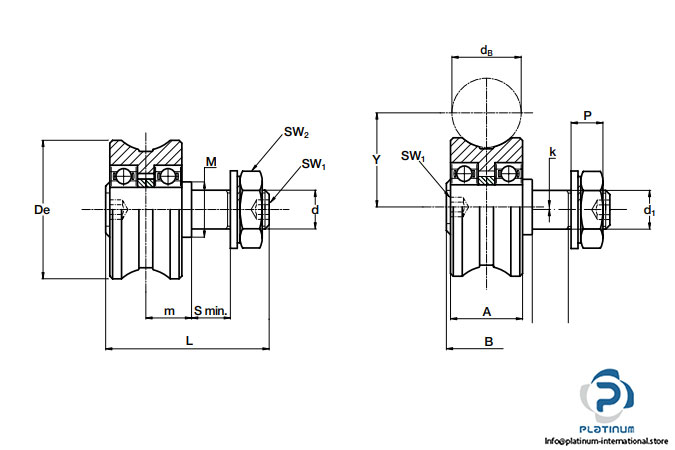

Dimensions
Outside diameter De: 50 mm
Guide Rail shaft diameter dB: 25 mm
Stud diameter d1: 14 mm
Total length L: 59 mm
Width outer ring A: 26 mm
Thread stud d: M14x1.5
Basic load ratings:
Dynamic Cw: 8800 N
Limit loads of the bearing:
Radial Cor: 4800 N
axial Coa: 940 N
Limit loads of the stud:
Radial Fr: 4240 N
axial Fa: 1100 N
