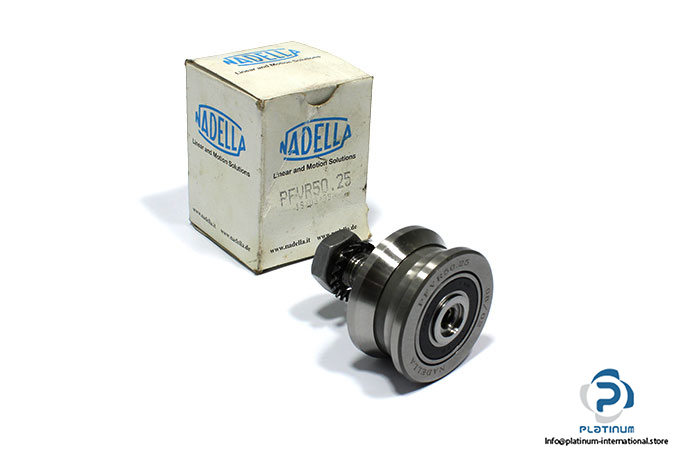

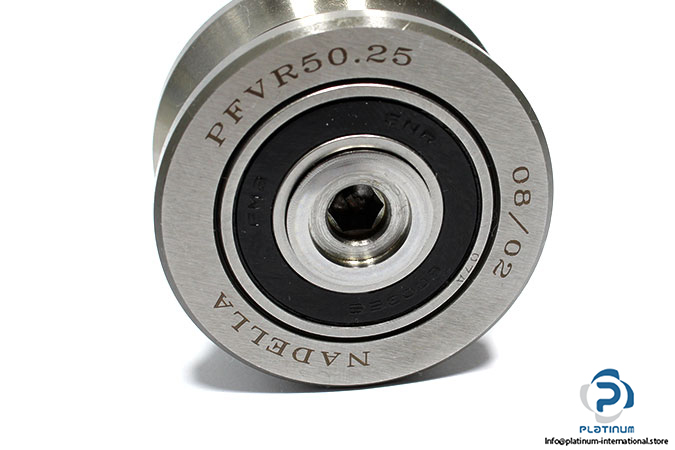

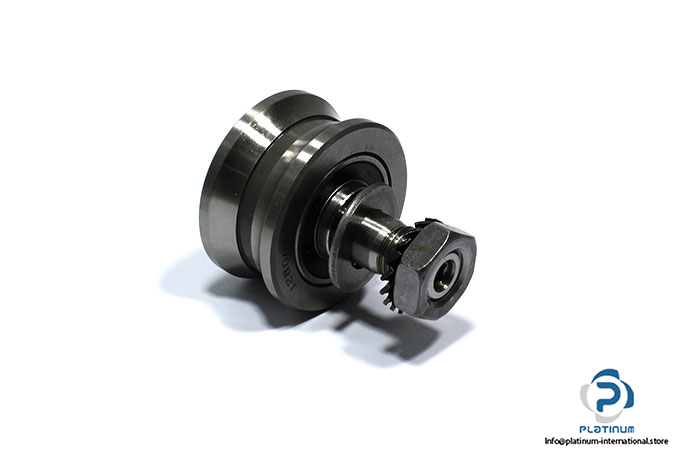

Nadella PFVR50.25 Guide Roller

Manufacturer: NADELLA

Type: Guide rollers PFVR with gothic arch profile

Model: PFVR 50.25

Design: Eccentric

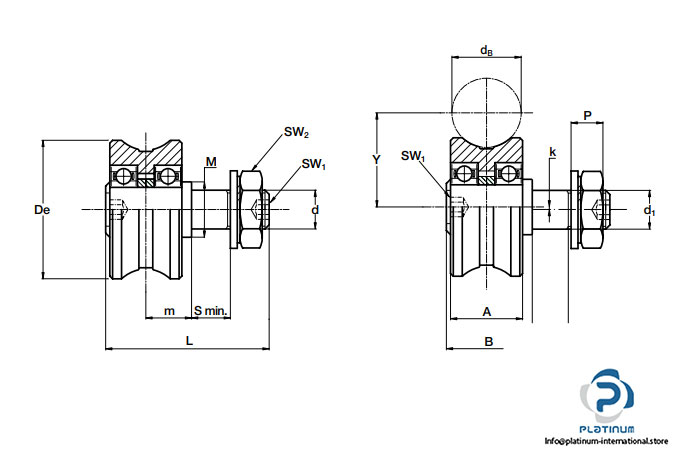

Dimensions

Outside diameter De: 50 mm

Guide Rail shaft diameter d_B: 25 mm

Stud diameter d₁: 14 mm

Total length L: 59 mm

Width outer ring A: 26 mm

Thread stud d: M14x1.5

Basic load ratings:

Dynamic C_w: 8800 N

Limit loads of the bearing:

Radial C_or: 4800 N

axial C_oa: 940 N

Limit loads of the stud:

Radial F_r: 4240 N

axial F_a: 1100 N
