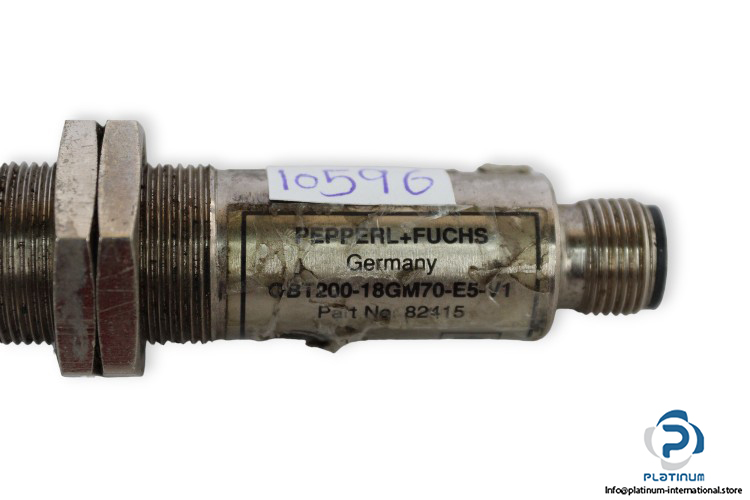

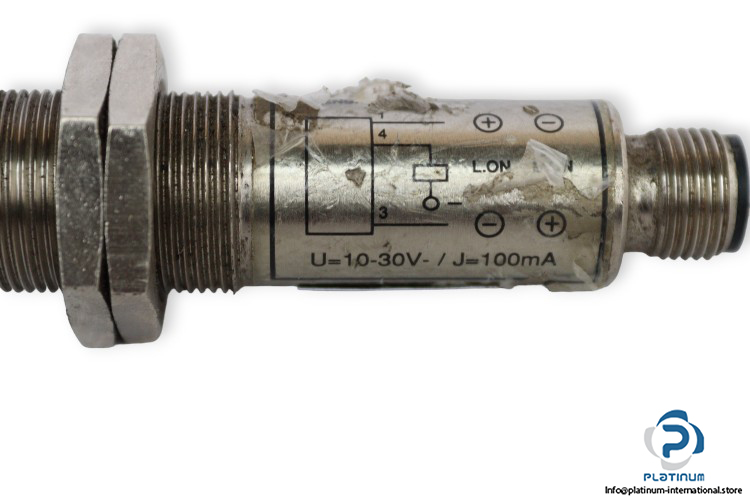

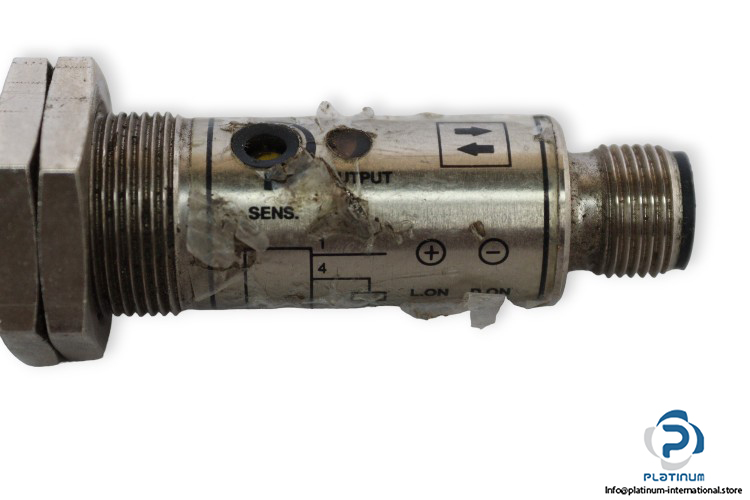

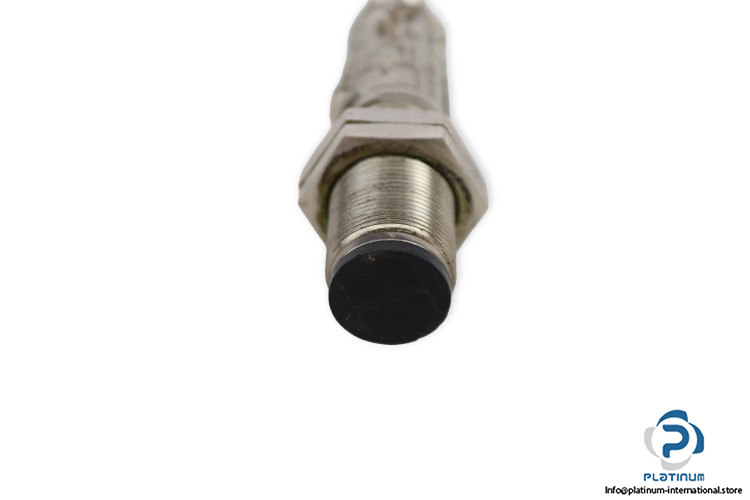

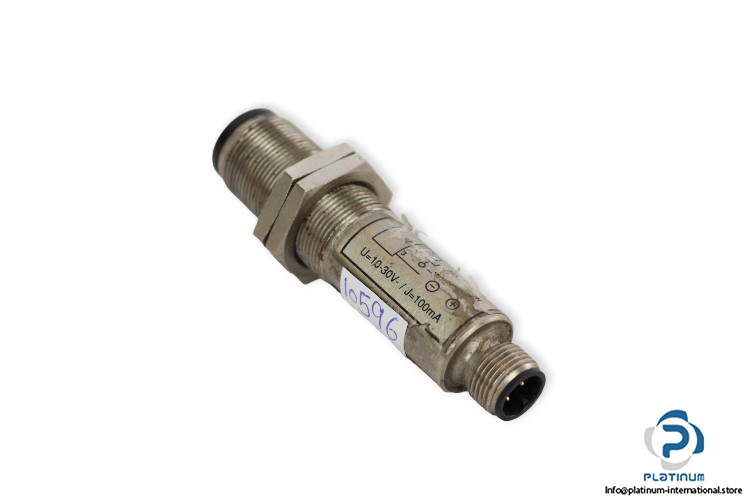

Pepperl+Fuchs OBT200-18GM70-E5-V1 Diffuse Sensor

Name: PEPPERL+FUCHS OBT200-18GM70-E5-V1 DIFFUSE SENSOR
SKU: 1043095
Availability: LimitedAvailability

pepperl-fuchs-OBT200-18GM70-E5-V1-diffuse-sensor-(used)

pepperl-fuchs-OBT200-18GM70-E5-V1-diffuse-sensor-(used)-1

pepperl-fuchs-OBT200-18GM70-E5-V1-diffuse-sensor-(used)-2

pepperl-fuchs-OBT200-18GM70-E5-V1-diffuse-sensor-(used)-3

pepperl-fuchs-OBT200-18GM70-E5-V1-diffuse-sensor-(used)-4

中古

在庫あり1 ユニット即納可能

製造元: Pepperl+Fuchs タイプ: 拡散型センサーモデル: OBT200-18GM70-E5-V1 部品番号: 82415

メーカー

PEPPERL+FUCHS

SKU

1043095

カテゴリ

Sensors

コンディション

中古

200 Diffuse Light mm Pepperl+Fuchs PNP Reflection Scanner Sensor

大量在庫

グローバル配送

専門的なサポート

品質保証

Manufacture: Pepperl+Fuchs
Type: Diffuse Sensor
Model: OBT200-18GM70-E5-V1
Part No.: 82415

Detection range: 0 … 200 mm
Operating Voltage: 10 … 30 V DC
Switching Current: ≤ 100 mA
No-Load Supply Current I₀: ≤ 20 mA
Voltage Drop U_d: ≤ 2.5 V
Signal Output: PNP
Switching Type: Light/dark ON, programmable
Switching Frequency: ≤ 300 Hz
Operating elements: sensitivity adjuster
Light type: infrared, modulated light
Protection Degree: IP67
Ambient Temperature: -25 … 55 °C
Material: Housing: Brass, Nickel-Plated, Optical Face: PC
Connection: connector M12 x 1, 4-pin
Diameter, Length: 18, 79 mm
