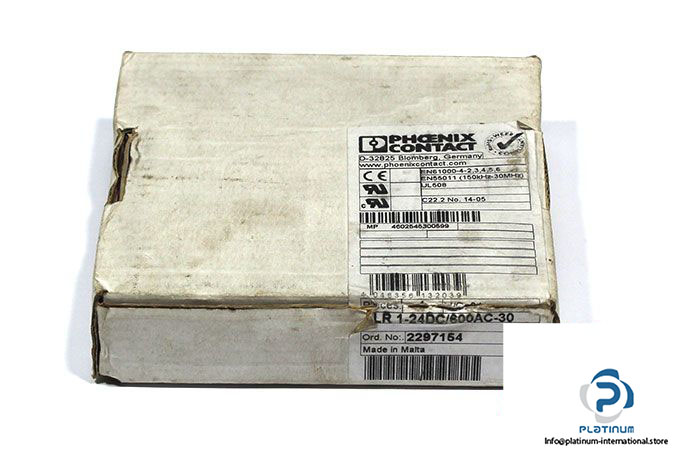

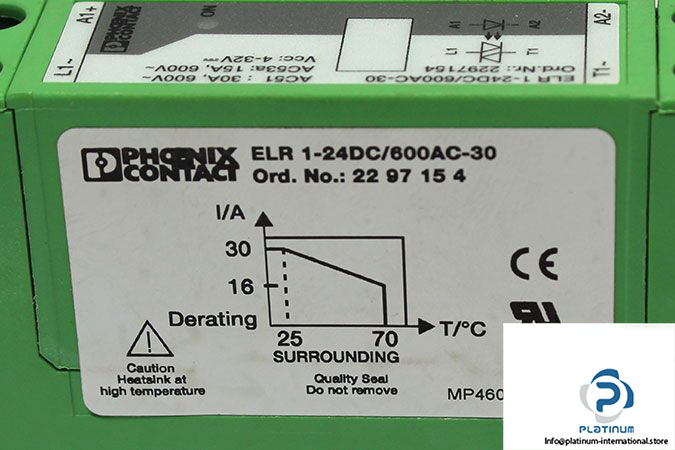

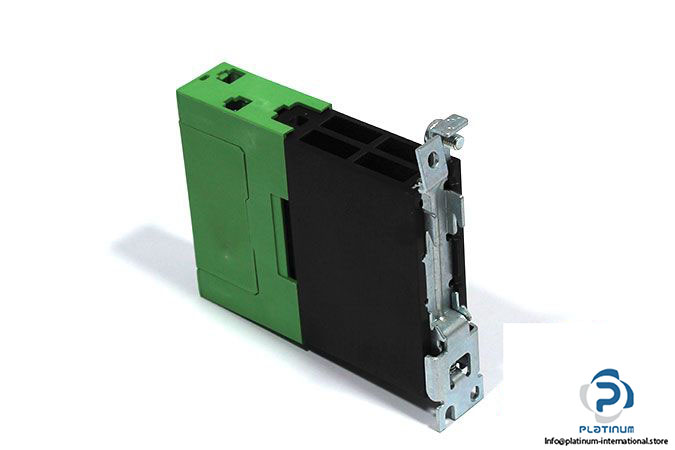

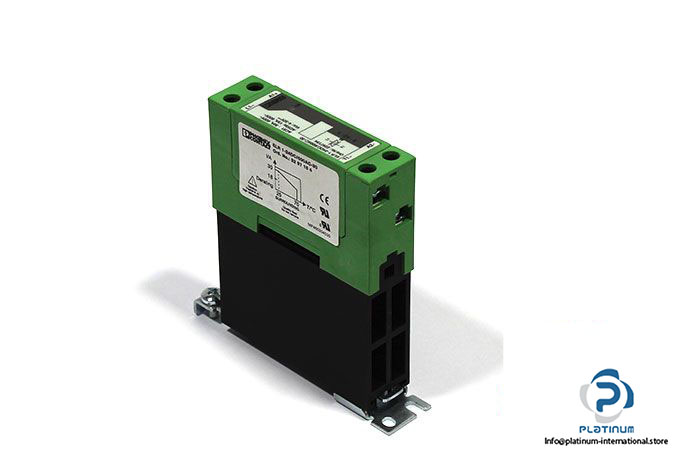

Phoenix Contact ELR 1-24DC/600AC-30 Solid-State Contactor

Manufacturer: Phoenix Contact

Type: Solid-State Contactor

Model: ELR 1-24DC/600AC-30

Order No: 2297154

Rated Actuating Voltage: 24 VDC

Triggering Voltage Range: 4…32 VDC

Number of Phases: 1

Maximum Power Dissipation for Nominal Condition: 48 W

Rated Actuating Current: 12 mA

Operating Output Voltage Range: 42…660 V AC

Rated Output Operating Current at AC-51: 30 A

Rated Output Operating Current at AC-53a: 15 A

Mains Frequency: 45…65 Hz

Load Current Range: 150 mA … 30 A

Connection Method: Screw Connection

Operating Temperature: -40…100 °C

Dimensions: 103 x 103 x 22.5 mm

Weight: 0.26 kg
