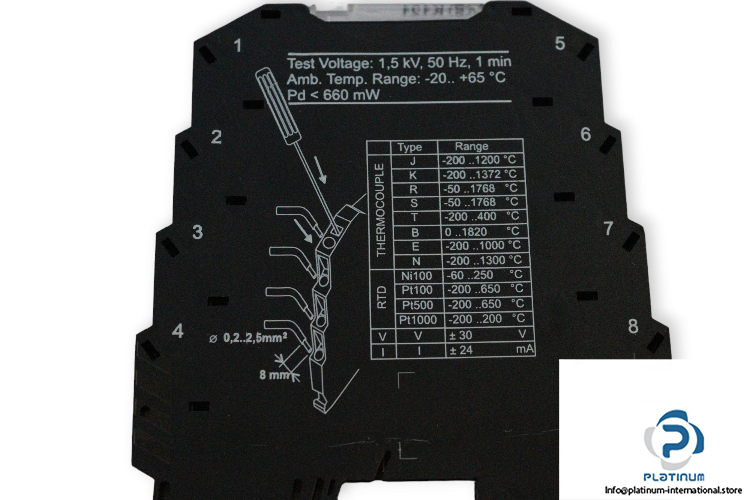

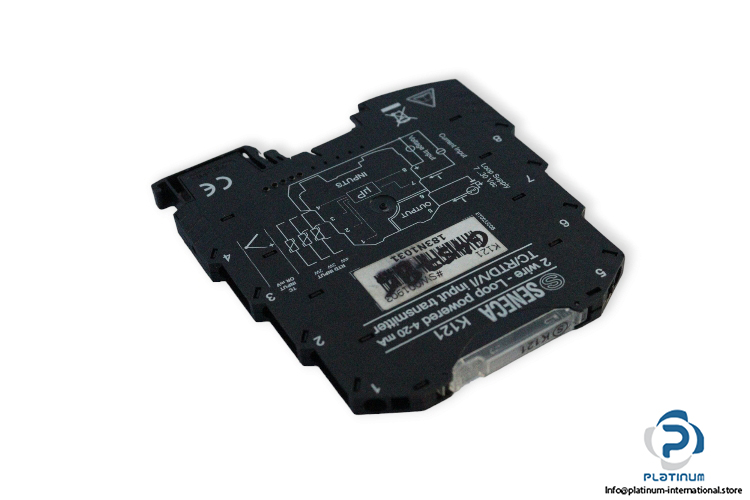

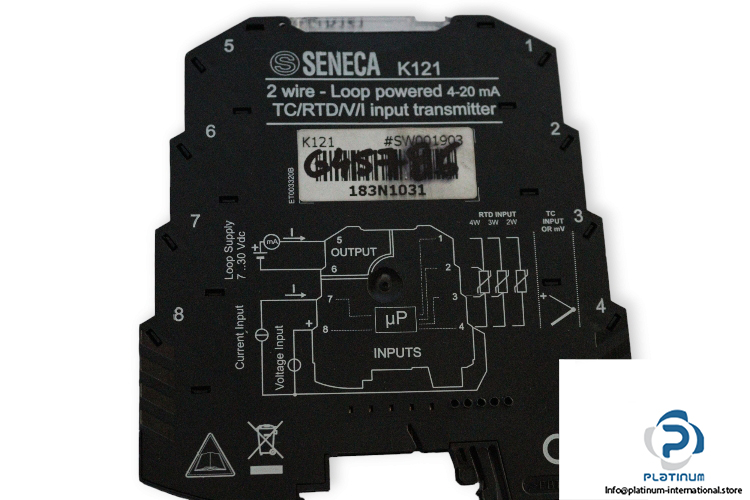

Seneca K121 Input Transmitter
Manufacture: Seneca
Type: Input Transmitter
Model: K121
Power supply: 7… 30 V DC (from loop 4 … 20mA)
Current consumption: 24 mA
Power consumption: <660 mW
Input Data: Channels: 1,Type: Thermocouple J,K,R,S,T,E,B,N,L, RTD
Output Data: Channels 1,Type Current 4 … 20mA, Response time (10-90%) 140 … 620 ms
A/D Conversion: 16 bit
Isolation technique: Digital (optocoupler)
Data processing: 32 bit floating point
Enclosure: PBT
Operating temperature: -20 …+65 °C
Connections: 8 Clamp terminals
Protection degree: IP 20
Dimensions (w x h x d): 6,2 x 93,1 x 102,5 mm
