Seneca T201 AC Current Transducer
Seneca交流電流トランスデューサー（モデル：T201）は交流電流（40 A）を直流電流（4-20 mA）に変換します。5-28 V DCの電源で動作し、IP20保護機能を備えています。装置は-40から65 °Cの広範な周囲温度範囲に対応しています。

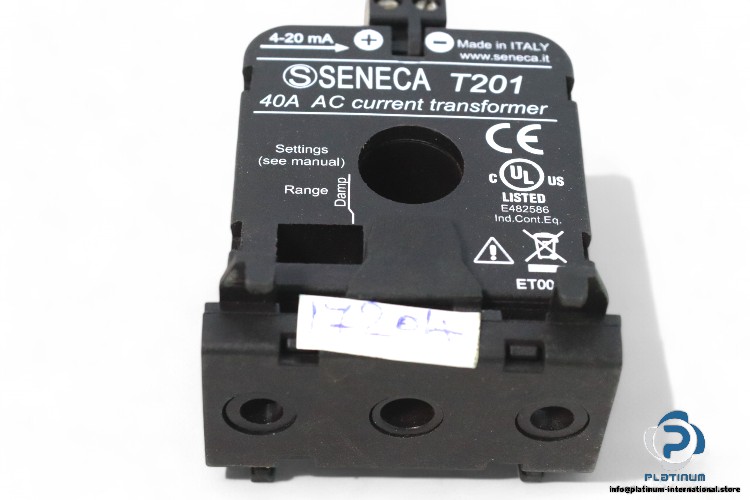

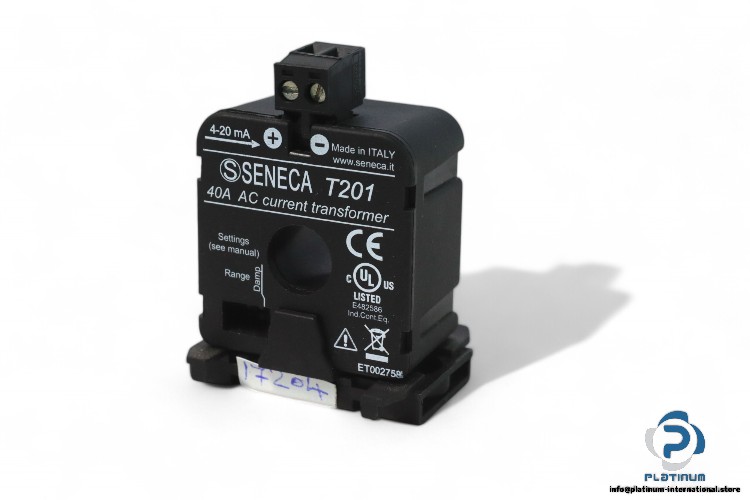

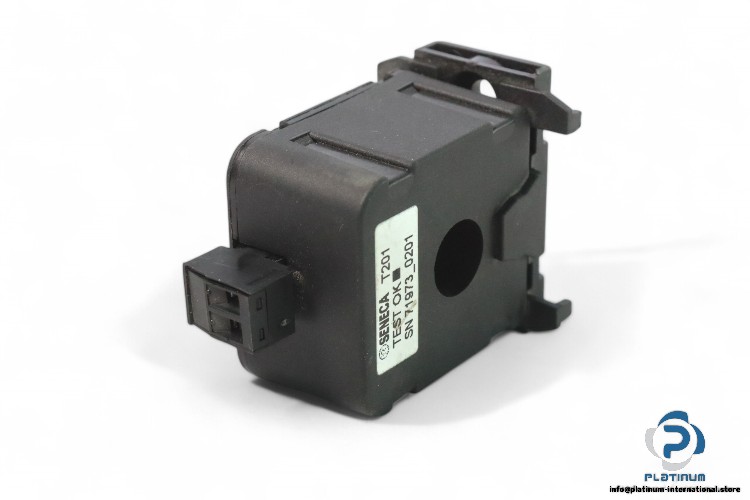

Seneca AC Current Transducer (Model: T201)
The Seneca AC Current Transducer (Model: T201) is designed to convert AC current to DC current in the range of 4 to 20 mA (loop-powered). It offers a power supply range of 5-28 V DC and is capable of handling an input rated current of 40 A (AC). The device provides an output of 4 to 20 mA, and it has low self-consumption of less than 50 mW, with a power consumption of less than 21 mA. This transducer is housed in a compact IP20-rated enclosure, ensuring protection in industrial environments. The device operates in a wide ambient temperature range of -40 to 65 °C. It is equipped with removable 5-pole terminals, supporting cables up to 2.5 mm² in diameter, and is ideal for applications where reliable and accurate current conversion is required.
- Manufacturer: Seneca
- Type: AC Current Transducer
- Model: T201
- Description: AC Current Transducer to DC current (4 ..20 mA – loop-powered)
- Power Supply: 5..28 V DC
- Input Rated Current: 40 A (AC)
- Output Rated Current: 4..20 mA
- Self-consumption: < 50 mW
- Power Consumption: < 21 mA
- Protection Class: IP20
- Ambient Temperature: -40 / 65 °C
- Connections: Removable terminals (5-pole), 5 mm pitch for cables up to 2.5 mm²
- Dimensions: 41 x 44 x 26 mm
