Seneca T201 AC Current Transducer
Transductor de corriente AC Seneca (Modelo: T201) convierte corriente AC (40 A) a DC (4-20 mA). Funciona con suministro eléctrico de 5-28 V DC y cuenta con protección IP20. El dispositivo soporta un amplio rango de temperatura ambiente de -40 a 65 °C.

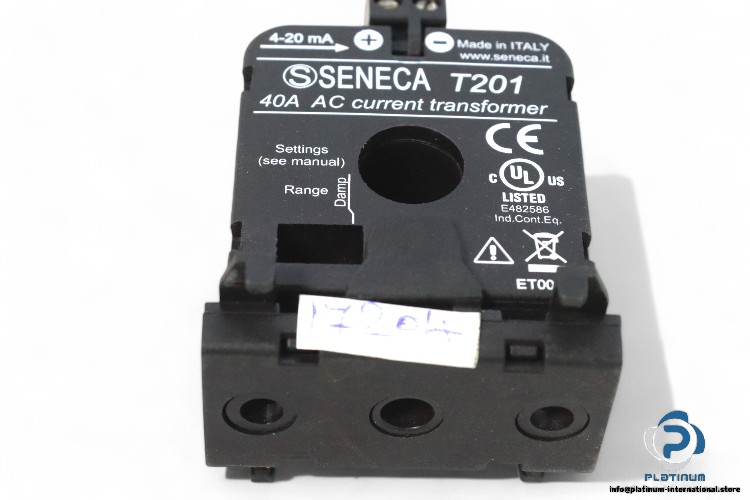

Seneca AC Current Transducer (Model: T201)
The Seneca AC Current Transducer (Model: T201) is designed to convert AC current to DC current in the range of 4 to 20 mA (loop-powered). It offers a power supply range of 5-28 V DC and is capable of handling an input rated current of 40 A (AC). The device provides an output of 4 to 20 mA, and it has low self-consumption of less than 50 mW, with a power consumption of less than 21 mA. This transducer is housed in a compact IP20-rated enclosure, ensuring protection in industrial environments. The device operates in a wide ambient temperature range of -40 to 65 °C. It is equipped with removable 5-pole terminals, supporting cables up to 2.5 mm² in diameter, and is ideal for applications where reliable and accurate current conversion is required.
- Manufacturer: Seneca
- Type: AC Current Transducer
- Model: T201
- Description: AC Current Transducer to DC current (4 ..20 mA – loop-powered)
- Power Supply: 5..28 V DC
- Input Rated Current: 40 A (AC)
- Output Rated Current: 4..20 mA
- Self-consumption: < 50 mW
- Power Consumption: < 21 mA
- Protection Class: IP20
- Ambient Temperature: -40 / 65 °C
- Connections: Removable terminals (5-pole), 5 mm pitch for cables up to 2.5 mm²
- Dimensions: 41 x 44 x 26 mm
