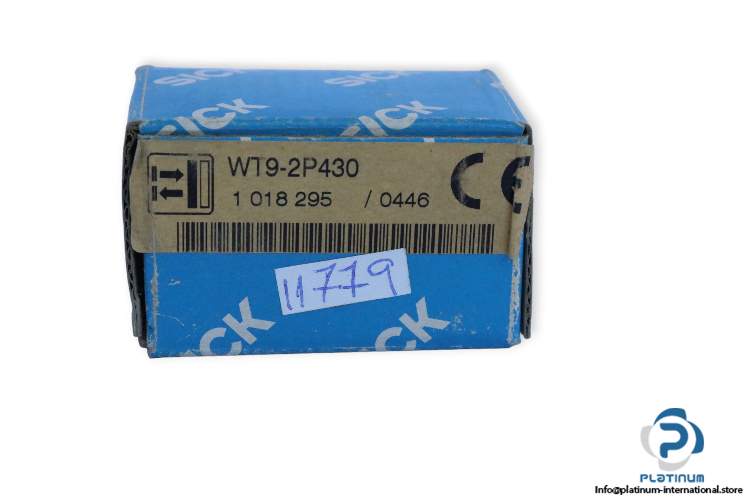

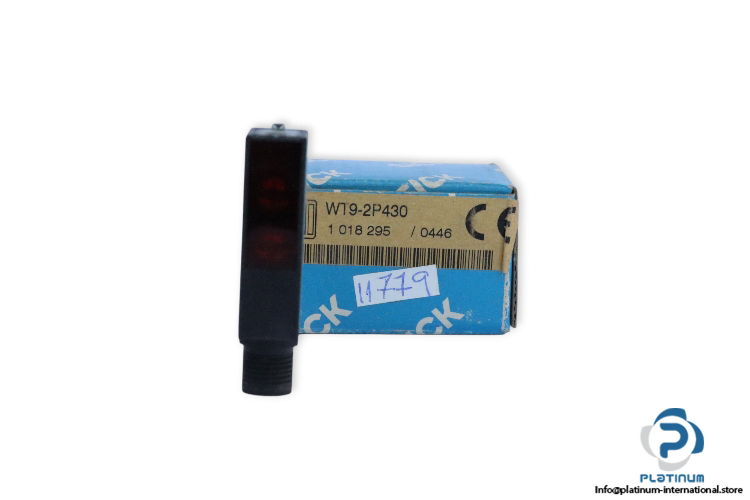

Sick WT9-2P430 Diffuse Proximity Sensor

Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: WT92P430
Part No.: 1018295

Sensing Range: 30 … 250 mm
Housing Design (Light Emission): Rectangular
Supply Voltage: 10 … 30 V DC
Output Consumption: 40 mA
Switching Output: PNP

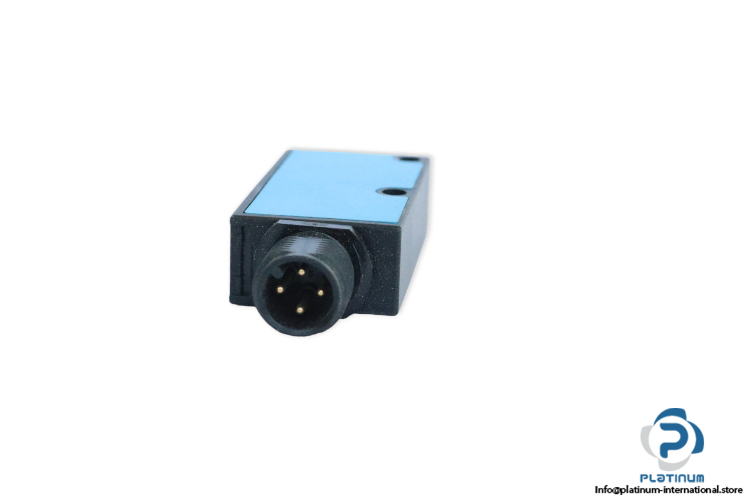

Connection Type: Male Connector M12, 4-Pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Light Visible Type: Red Light
Protection Class: IP69
Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 80.6 x 24.6 x 54 mm
