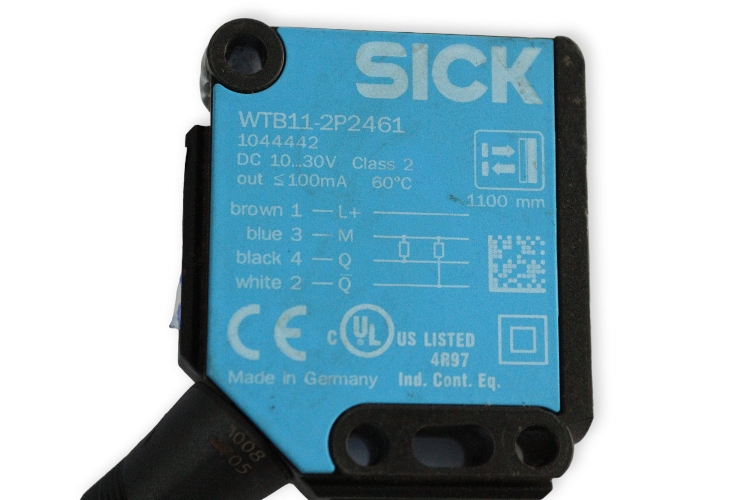

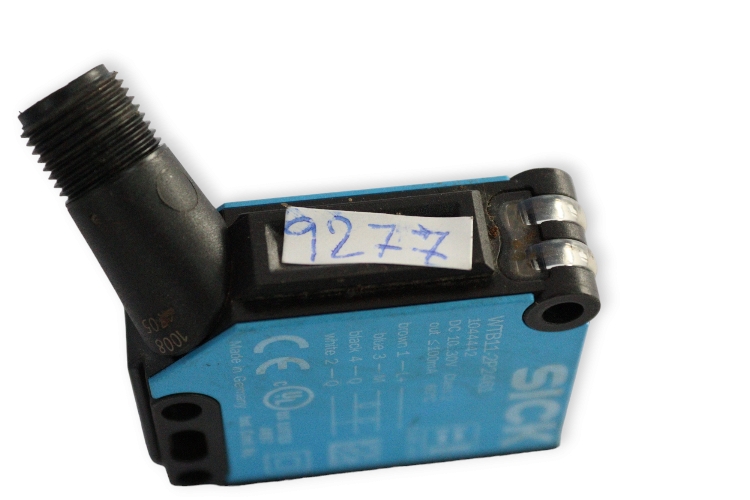

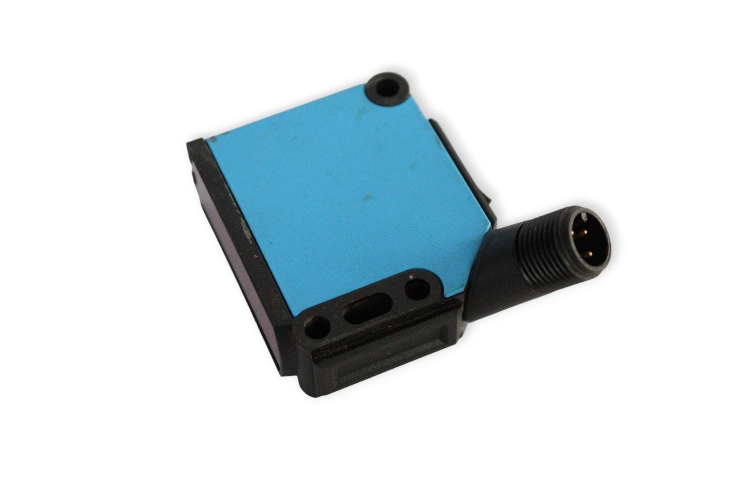

Sick WTB11-2P2461 Diffuse Photoelectric Sensor

Manufacturer: SICK
Type: Diffuse Photoelectric Sensor
Model: WTB112P2461
Part No.: 1044442

Sensing Range: 1100 mm
Housing Design (Light Emission): Rectangular
Operating Voltage: 10 … 30 V DC
Rated Load Current: 100 mA
Switching Output: PNP
Connection Type: Male connector M12, 4-pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Wave Length: 660 nm
Light Spot Size: 6 mm
Protection Class: IP66
Operating Temperature: -30 … 60 °C
Dimensions (W x H x D): 15.6 x 48.5 x 42 mm
