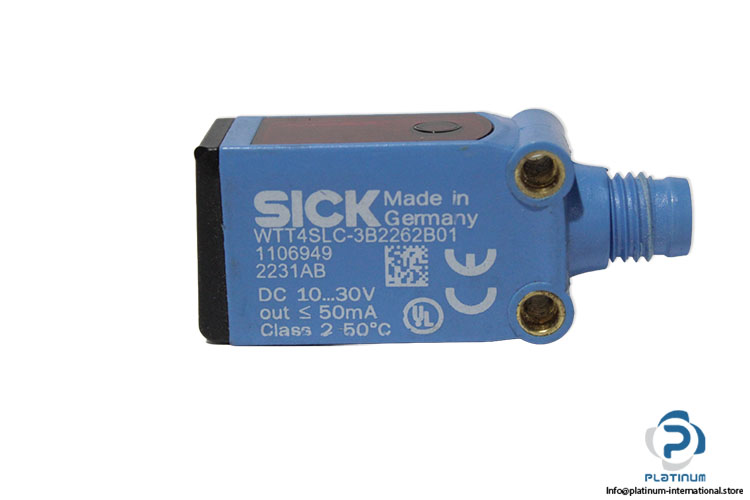

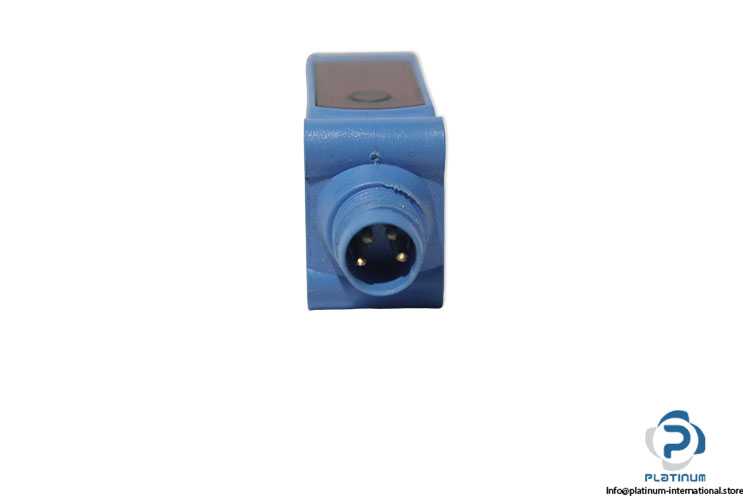

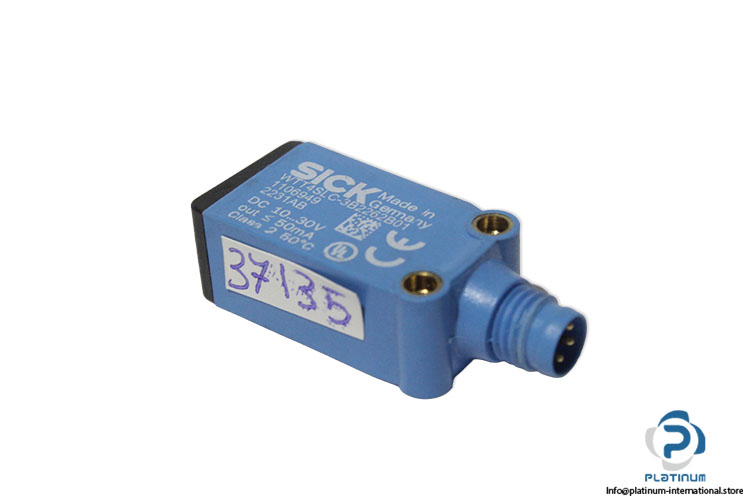

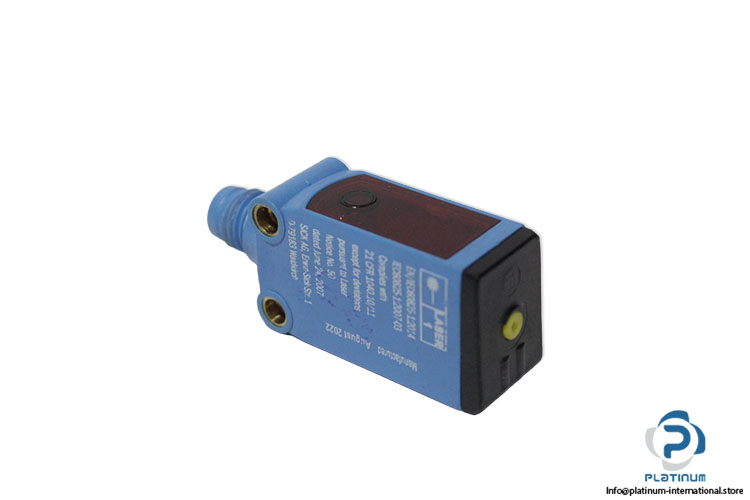

Sick WTT4SLC-3B2262B01 Time-OF-Flight Sensor
新着
在庫あり1 ユニット即納可能
Time of Flight Sensor The SICK WTT4SLC-3B2262B01 is a compact time-of-flight sensor with background suppression, laser technology and IO-Link, designed for precise industrial object detection and distance measurement.
中古
在庫あり
この製品は中古でもご利用いただけます
中古バージョンを見る →
大量在庫
グローバル配送
専門的なサポート
品質保証
| Part No. | 1106949 |
| Code | 2231AB |
| Functional principle | detail Background suppression, Optical time-of-flight, distance value |
| Supply voltage | 10 to 30 V DC |
| Output current Imax. | 50 mA |
| Switching frequency | 100 Hz |
| Switching mode | Light/dark switching |
| Switching output | Push-pull: PNP/NPN |
| Housing design | (light emission) Rectangular |
| Sensing range | 100 mm ... 1,300 mm |
| Connection type | Male connector M8, 4-pin |
| Type of light | Visible red light |
| Light source | Laser |
| Wave length | 658 nm |
| Class | 2 |
| Ambient operating temperature | -40 to +50 °C |
| Adjustment | Single teach-in button, IO-Link |
| Cycle time | 0.8 ms |
| Certificate | CE |
| Dimensions | 12.2 mm x 41.8 mm x 17.3 mm |
| Housing material | Plastic, MABS ABS |
| Optics material | Plastic, PMMA |
| Standard | EN/IEC60825-1:2014,EC60825-1:2007-03 |
| Condition | New |
| SKU | 1097862 |
| Weight | 0,01 |
