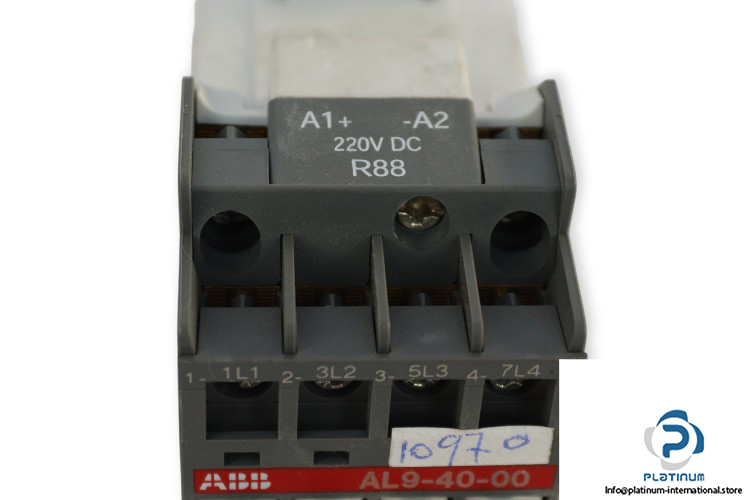

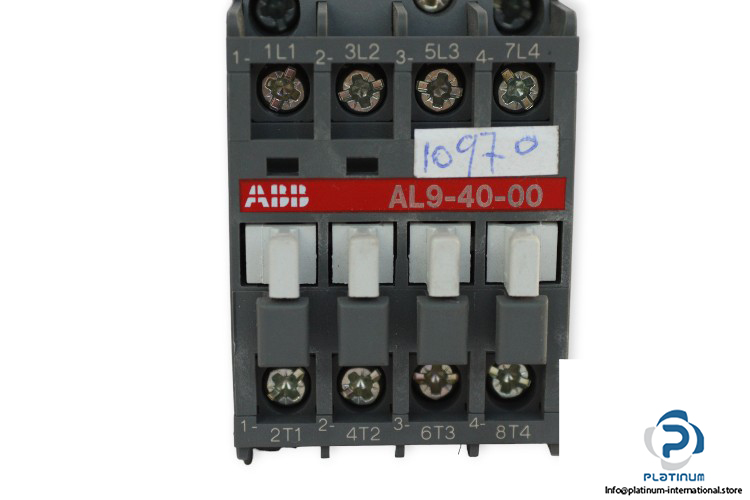

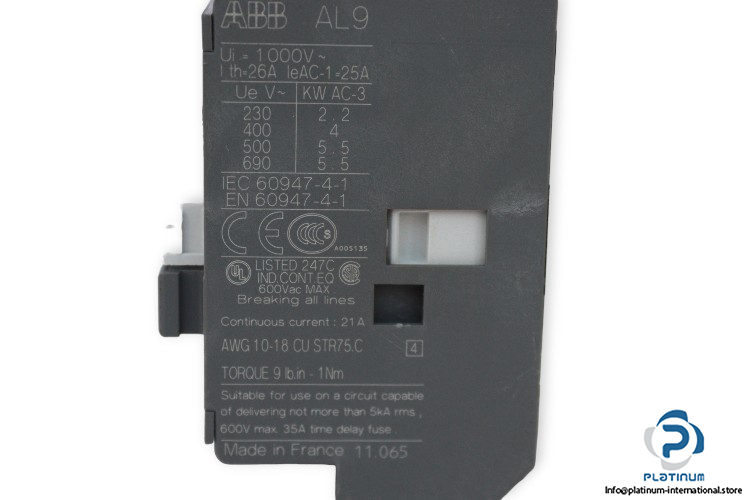

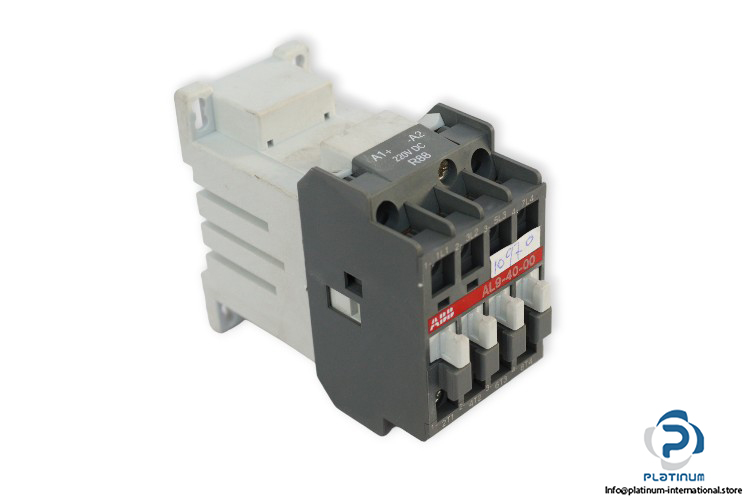

ABB AL9-40-00 Contactor

Manufacture: Abb
Type: Contactor
Model: AL94000

Control Supply Voltage: 220 V DC
Rated Current AC-1 (Ie): 25 A
Thermal current (Ith): 26 A
Continuous current: 21 A
No. of poles: 4
Rated Insulation Voltage Ui: 1000 V AC
Rated Impulse Withstand Voltage (Uimp): 8 kV
Standard: IEC/EN 60947-4-1
Rated Operational Power AC-3 (Pe): 4 kW @400 V
Terminal Type: Screw Terminals
Protection Class IP: IP20
Mounting by Screws (not supplied): 2 x M4 screws placed diagonally
Ambient air temperature Near Contactor for Operation in Free Air (Uc): -40 … 70 °C
Dimensions (W x D x H): 44 x 97 x 78 mm
