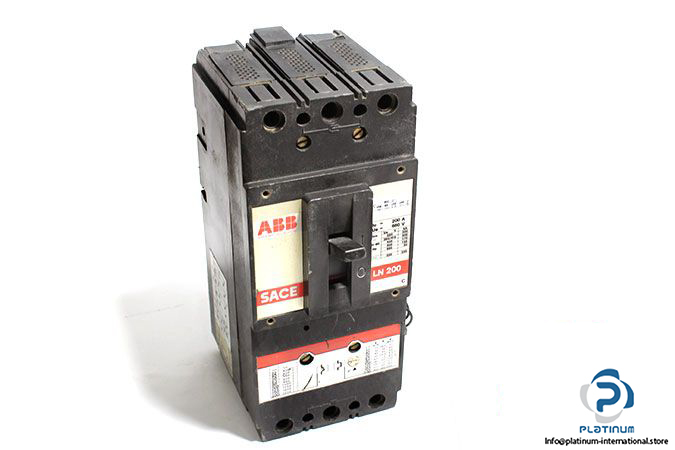

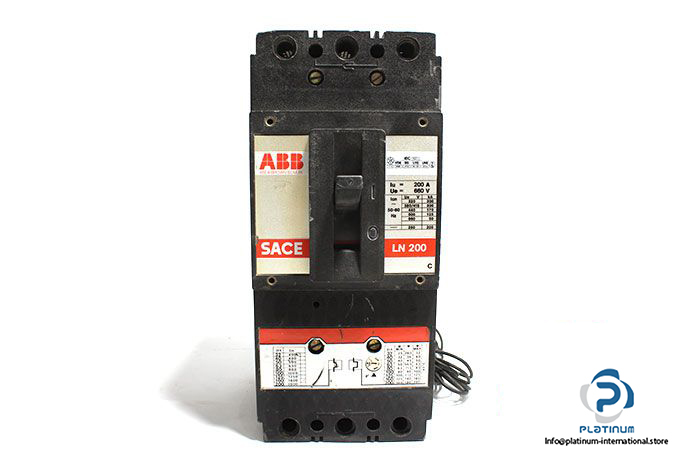

ABB LN 200 Moulded Case Circuit Breaker

Name: ABB LN 200 MOULDED CASE CIRCUIT BREAKER
SKU: 970949
Availability: LimitedAvailability

중고

재고 있음1 단위즉시 배송 가능

SKU

970949

카테고리

Circuit Breakers

상태

중고

3-Poles ABB Breakers Circuit Electrical Iu=200A Mccb Switch

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: ABB

Type: Moulded Case Circuit Breaker

Series: SACE Limitor

Model: LN 200

Number of Poles: 3

Release: Thermomagnetic

Version: Fixed

Terminals: Front Terminals

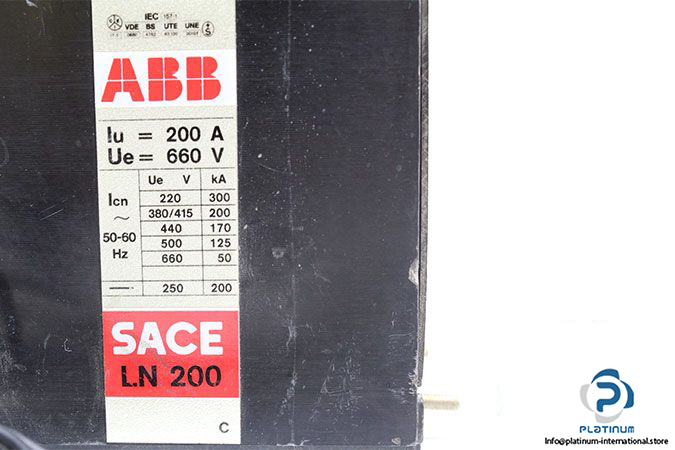

Rated Current (I_u): 200 A

Rated Voltage (U_e): 660 V AC / 250 V DC

Rated Impulse (U_imp): 8 kV

Breaking Capacity (I_cu):

300 kA (220/230V AC)

200 kA (380/415V AC)

75 kA (660/690V AC)

200 kA (250V DC)

Short-Circuit Trip Current (Im): 2000 A

Service Frequency: 50 / 60 Hz

Dimensions (W x D x H): 109 x 126 x 250 mm

Protection Class: IP20

Weight: 4.7 kg
