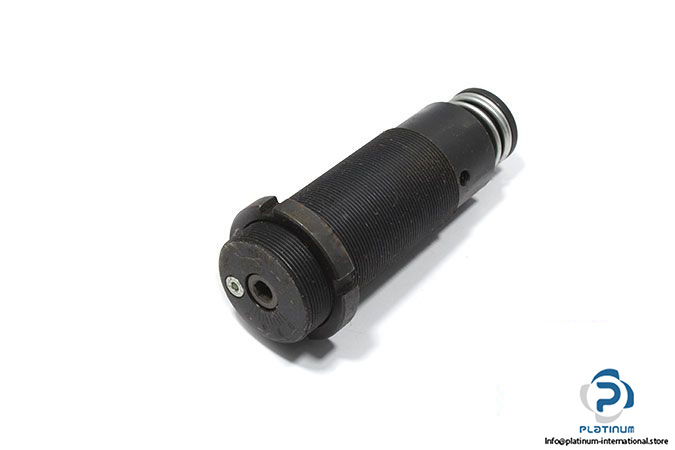

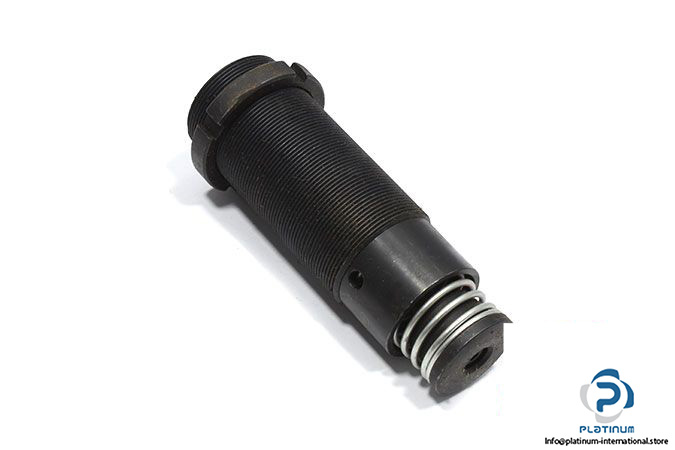

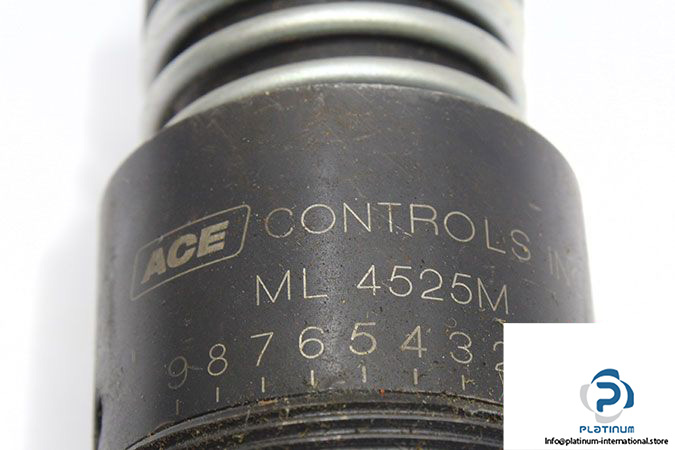

ACE Controls ML 4525M Shock Absorber
신제품
재고 있음2 단위즉시 배송 가능
90,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: ACE CONTROLS
Type: Shock Absorber
Model: ML 4525M
Type: Self-compensating
Return Method: Spring
Type of installation: Threaded With Lock Nuts
Maximum Effective Weight: 242,508 lbs
Energy Capacity: 3,762 in-lbs/cycle
Shock Absorber Size: Medium
max. Return Force: 32.2 lbs
min. Return Force: 15.1 lbs
Return Time: 0.03 s
max. Side Load Angle: 4 °
Impact velocity range: 0.06 ft/sec … 1.5 ft/sec
Operating temperature range: 10 °F … 150 °F
Material
Outer body: Nitride hardened steel
Piston rod: Hard chrome plated steel
Rod end button: Hardened steel and corrosion-resistant
Stroke Length: 0.91 in
Piston Diameter: 35 mm
Total length: 145 mm
Diameter and Step for Threaded Surface: M45 x 1.5
Weight: 1 kg
