Atlas 9032010002-0004 Digital Motion Controller
재고 있음1 단위즉시 배송 가능
입력 전압 570 V DC, 연속 출력 전력 3 kW(40°C 기준), 속도 범위 1~9000의 Atlas Copco 디지털 모션 컨트롤러 DMC 50720. 정밀 모터 제어 응용에 적합.
1-900020345072057060aAtlasControlControllerCopcoCurrentdcDigitalDmcFrequencyIndustrialIPkHzkWLossMotionmotorOutputPeakPowerProtectionRangeSpeedSwitchingVW
방대한 재고
글로벌 배송
전문 지원
품질 보장

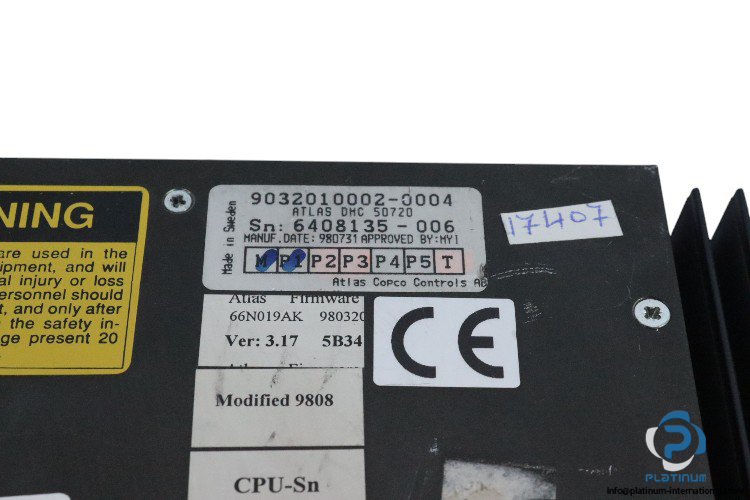

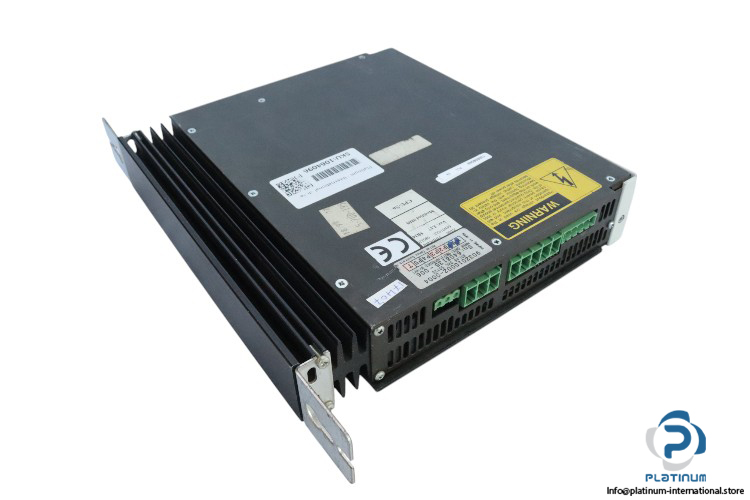

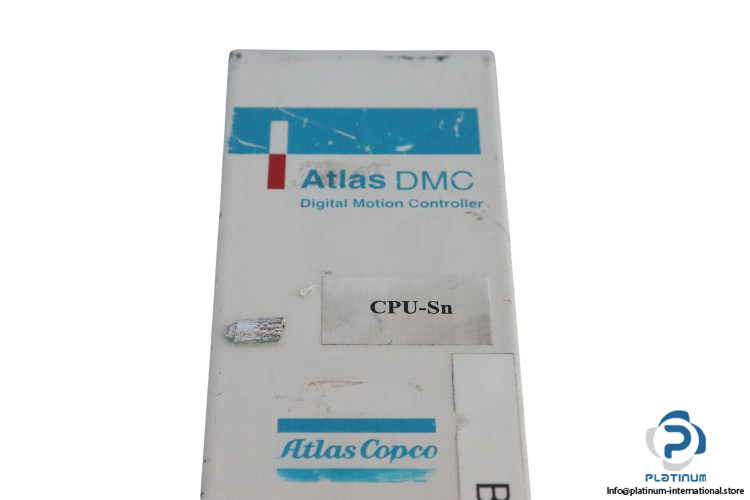

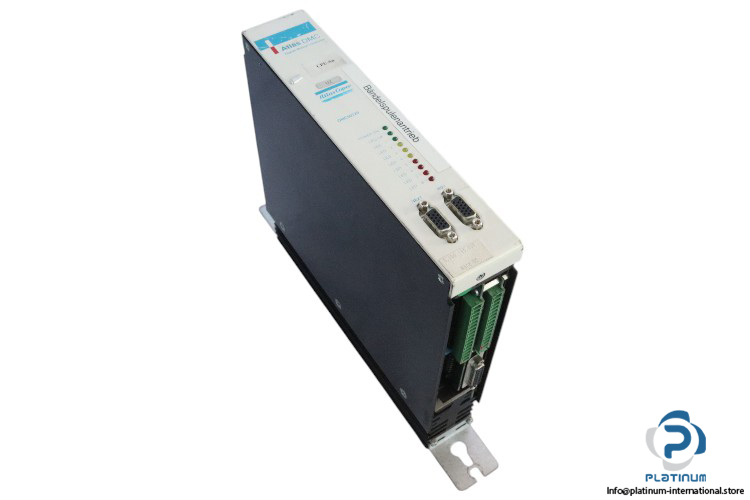

Atlas Copco Digital Motion Controller DMC 50720
Atlas Copco Digital Motion Controller DMC 50720 is a high-performance digital controller designed to manage motor control with precision. It offers reliable operation for various industrial applications, with adjustable input voltage and continuous output power capabilities.
- Manufacturer: Atlas Copco
- Type: Digital Motion Controller (DMC)
- Model: DMC 50720
- Part No.: 9032 0100 02-0004
Technical Data:
- Input Voltage: 570 V DC
- Shunt Regulation On: 670 to 700 V DC
- Shut Down DC Bus Voltage: 700 to 725 V DC
- Continuous Current (A DC): 7 A at 40°C
- Continuous Current (Arms): 4.5 A at 40°C
- Peak Current: 20 A
- Continuous Output Power: 3 kW at 40°C
- Power Loss: 60 W
- Min Motor Inductance: 8 mH
- Speed Range: 1 to 9000
- Switching Frequency: 4 kHz
- Ambient Temperature: 0 to 60°C
- Protection Degree: IP 20
- Dimensions: 227 x 46 x 234 mm
