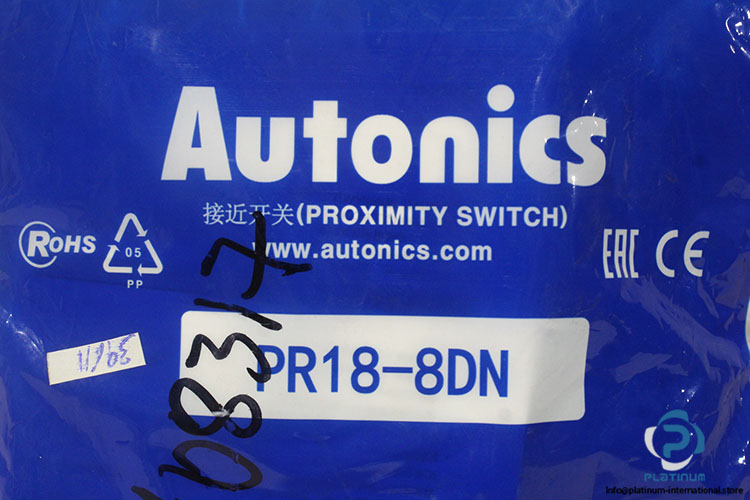

Autonics PR18-8DN Inductive Proximity Sensor
신제품
재고 있음2 단위즉시 배송 가능
Inductive Proximity Sensor The AUTONICS PR18-8DN is a cylindrical inductive proximity sensor with an 8 mm sensing distance, 350 Hz response frequency, and IP67 protection for reliable metal detection in industrial automation.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Installation | Non-flush |
| Sensing side diameter | 18mm |
| Sensing distance | 8mm |
| Standard sensing target | 25×25×1mm(iron) |
| Response frequency | 350Hz |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Indicator | Operation indicator (red LED) |
| Power voltage | 12 - 24 VDC ,operating voltage: 10 - 30 VDCspecialstring |
| Current specification | Current consumption: Max. 10mA |
| Control output | 200 mA |
| Residual voltage,Max. | 1.5V |
| Protection structure | IP67(IEC standard) |
| Connection | Cable type |
| Cable Standard/material | Standard type cable (black): polyvinyl chloride (PVC) |
| Material | Case/Nut: nickel plated brass (DIA. of sensing side Ø 8 mm connector type case: SUS303), washer: nickel plated iron, sensing side: PBT |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101028 |
| Weight | 0,12 |
