Balluff BES 516-325-E5-Y-S49 Inductive Sensor

Name: BALLUFF BES 516-325-E5-Y-S49 INDUCTIVE SENSOR
SKU: 964488
Price: 50.00 USD
Availability: InStock


balluff-bes-516-325-e5-y-s49-inductive-sensor3_675x450

balluff-bes-516-325-e5-y-s49-inductive-sensor4_675x450

balluff-bes-516-325-e5-y-s49-inductive-sensor5_675x450

balluff-bes-516-325-e5-y-s49-inductive-sensor6_675x450





신제품

재고 있음1 단위즉시 배송 가능

50,00$

SKU

964488

카테고리

Sensors

상태

신제품

Balluff Inductive Sensor

방대한 재고

글로벌 배송

전문 지원

품질 보장

Manufacturer: BALLUFF

Type: INDUCTIVE SENSOR

Order code: BES 516-325-E5-Y-S49

Sensing Range: 2 mm

Operating Voltage: 10 … 30V DC

Switching frequency: 1000 Hz

Operating current: 130 mA DC

Electrical design: PNP

Output Function: Normally open

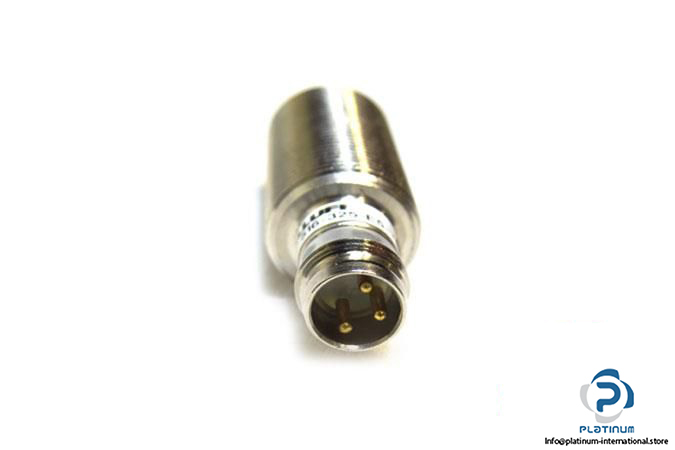

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 12, 44 mm

Material: Nickel-plated Brass; sensing face: PA 12

Mounting: Flush mountable

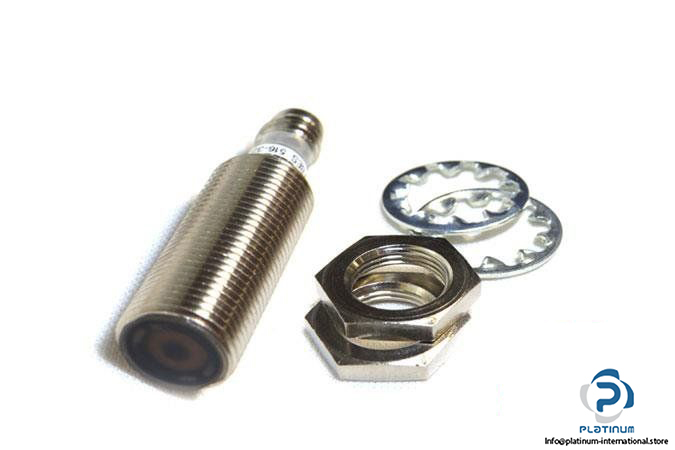

Supplied Accessories: 2 lock nuts

Condition: New
