Balluff BES 516-327-S4-W Inductive Sensor

Name: BALLUFF BES 516-327-S4-W INDUCTIVE SENSOR
SKU: 1056582
Availability: LimitedAvailability

balluff-BES-516-327-S4-W-inductive-sensor-(used)

balluff-BES-516-327-S4-W-inductive-sensor-(used)-1

balluff-BES-516-327-S4-W-inductive-sensor-(used)-2

중고

재고 있음5 단위즉시 배송 가능

Magnetic-Field-Resistant Inductive Sensor

The Balluff BES 516-327-S4-W sensor offers a 10 mm sensing range, cylindrical housing, and robust IP67 protection. It operates with a 10 to 30 V DC voltage range, ideal for flush mounting and various industrial applications.

제조업체

BALLUFF

SKU

1056582

카테고리

Sensors

상태

중고

516-327-S4-W Balluff BES brass Housing Inductive Industrial IP67 M30x1.5 Magnetic-Field-Resistant PNP Sensing Sensor technology

신제품 재고 있음

이 제품은 신제품으로도 구매하실 수 있습니다.

새 버전 보기 →

방대한 재고

글로벌 배송

전문 지원

품질 보장

Balluff BES 516-327-S4-W “ Magnetic-Field-Resistant Inductive Sensor

The Balluff BES 516-327-S4-W magnetic-field-resistant inductive sensor is designed for reliable, high-performance sensing in industrial environments. With a cylindrical housing and flush mounting, it offers robust protection and consistent operation in a range of temperatures.

Manufacturer: Balluff

Type: Magnetic-field-resistant inductive sensor

Model: BES 516-327-S4-W

Order Code: BES02JJ

Sensing Range	10 mm
Operating Voltage	10 to 30 V DC
Electrical Design	PNP
Switching Output	NO
Current Rating	200 mA
Housing	Cylindrical
Connection	Connector M12x1-Male, 4-pin, A-coded
Mounting	Flush
Protection Degree	IP67
Housing Material	Brass, PTFE coated
Operating Temperature	-25 to 70°C

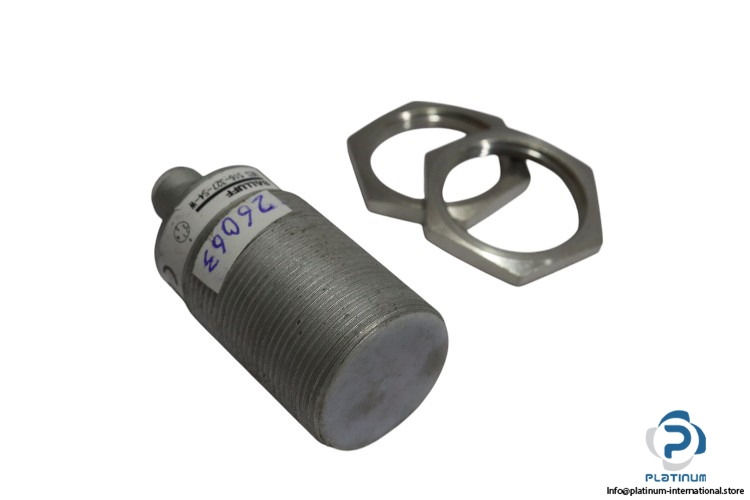

Supplied Items	2 lock nuts
Size	M30x1.5
