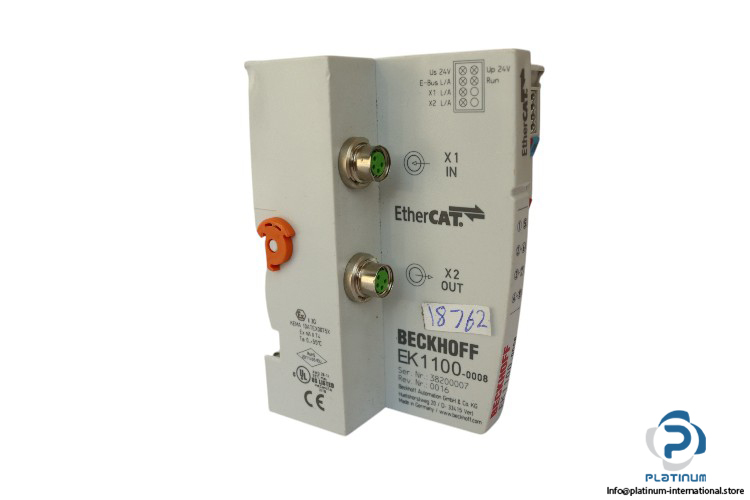

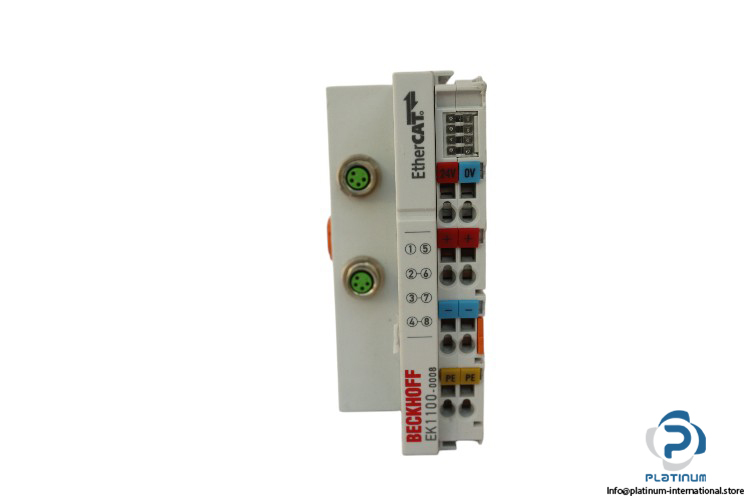

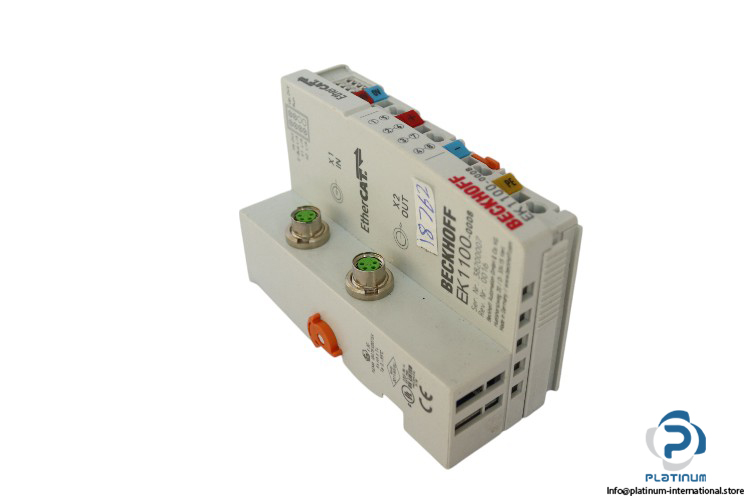

Beckhoff EK 1100-0008 Ethercat Coupler

재고 있음2 단위즉시 배송 가능

199,99$

EtherCAT Coupler

The Beckhoff EK 1100-0008 EtherCAT Coupler supports 24 V DC power supply, 100 Mbit/s data transfer, and 2 x M8 screw-type interfaces. It features 2000 mA E-bus current supply and operates in temperatures from -25°C to +60°C.

제조업체
BECKHOFF
SKU
1059665
카테고리
PLC Modules
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

Beckhoff EK 1100-0008 EtherCAT Coupler

The Beckhoff EK 1100-0008 EtherCAT Coupler is designed to facilitate seamless communication between devices in an industrial Ethernet network. This compact terminal housing features signal LEDs for status indication, making it easy to monitor its operation. The coupler supports data transfer rates of 100 Mbit/s and uses two M8, shielded screw-type bus interfaces for reliable and secure connections. It operates with a 24 V DC power supply and has a current consumption of 70 mA. The unit is capable of handling a maximum current load of 10 A on its power contacts, with a K-bus current supply of 2000 mA.

Manufacturer: Beckhoff

Type: EtherCAT Coupler

Model: EK 1100-0008

This EtherCAT Coupler is ideal for industrial applications requiring robust and reliable communication, offering flexible mounting and ease of integration with other devices in the network.

Design FormCompact terminal housing with signal LEDs
Distance Between Stations Max.100 m
Data Transfer Rates100 Mbit/s
Bus Interface2 x M8, shielded, screw type
Power Supply24 V DC
Current Consumption70 mA
Stripping Length8 / 9 mm
Current Load Power Contacts Imax10 A
Current Supply E-bus2000 mA
Power Contacts Max.24 V DC/max. 10 A
Electrical Isolation500 V
MountingSide by side mounting by means of double slot and key connection
Protection RatingIP20
MaterialPolycarbonate
Operating Temperature-25°C to +60°C
Dimensions (W x H x D)44 mm x 100 mm x 68 mm
