Beckhoff KL 3064 BUS Terminal
중고
재고 있음1 단위즉시 배송 가능
Bus Terminal
Beckhoff KL3064 analog input bus terminal from the KL3xxx family with 4 inputs, 0 / 10 V signal voltage, 12-bit resolution, and IP20 protection for reliable automation performance.
방대한 재고
글로벌 배송
전문 지원
품질 보장

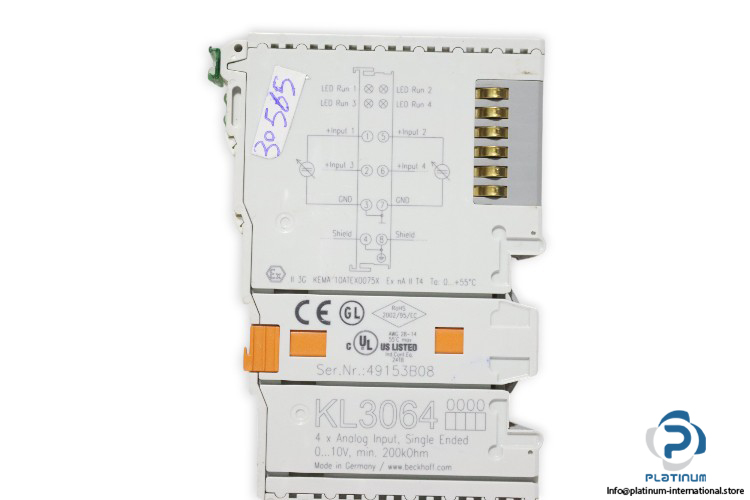

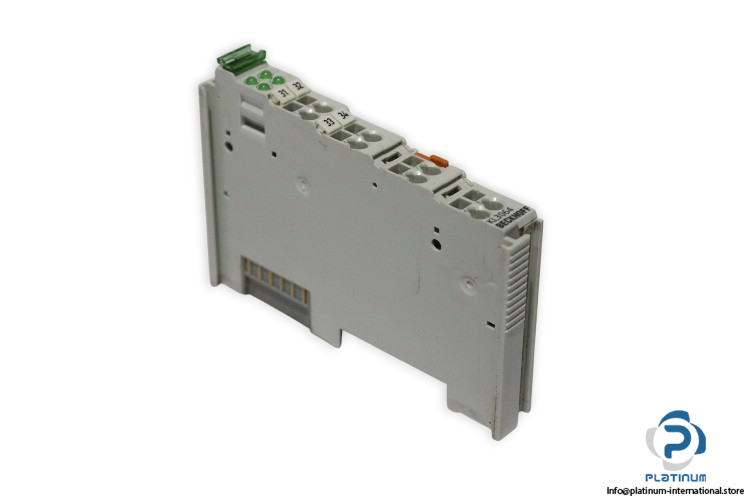

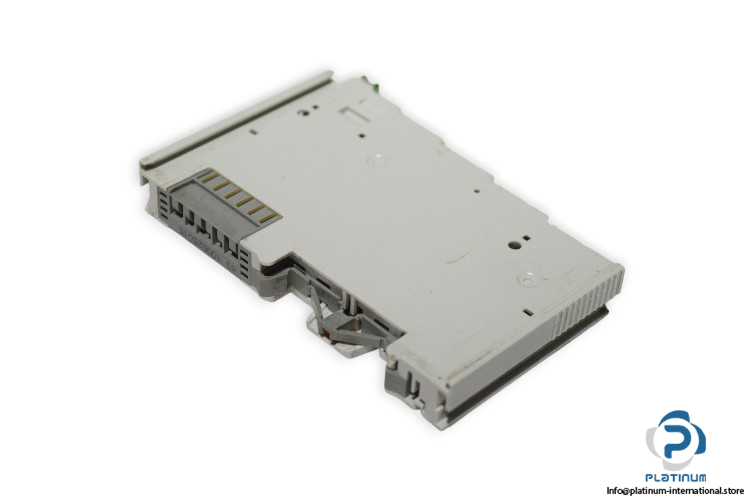

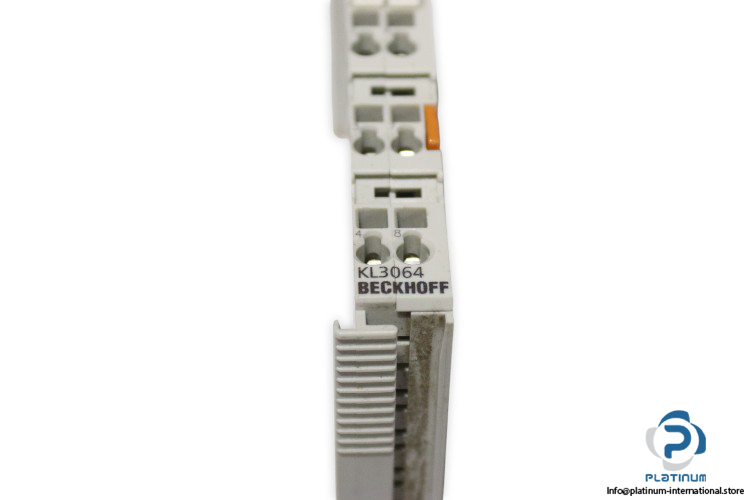

Beckhoff KL3064 Bus Terminal
The Beckhoff KL3064 is a high-quality analog input bus terminal from the KL3xxx family, designed to provide accurate and reliable signal processing in industrial automation systems. With advanced measurement precision and robust construction, it ensures dependable operation under demanding conditions.
Manufacturer: Beckhoff
Type: Bus Terminal
Model: KL3064
Serial No.: 49153b08
| Family | KL3xxx |
| Number of Inputs | 4 |
| Power Supply | via the K-bus |
| Signal Voltage | 0 / 10 V |
| Technology | Single-ended |
| Internal Resistance | typ. > 200 kΩ |
| Conversion Time | 4 ms |
| Resolution | 12 bit |
| Measurement Error/Uncertainty | < ±0.3% (relative to full scale value) |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Current Consumption (K-bus) | typ. 85 mA |
| Bit Width in Process Image | Input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Operating Temperature | -25 / +60 °C |
| Protection Rating / Installation Position | IP20 / Variable |
| Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
