Beckhoff KL 3064 BUS Terminal
Used
In stock1 unitReady to ship
Bus Terminal
Beckhoff KL3064 analog input bus terminal from the KL3xxx family with 4 inputs, 0 / 10 V signal voltage, 12-bit resolution, and IP20 protection for reliable automation performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

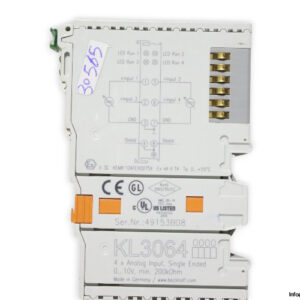

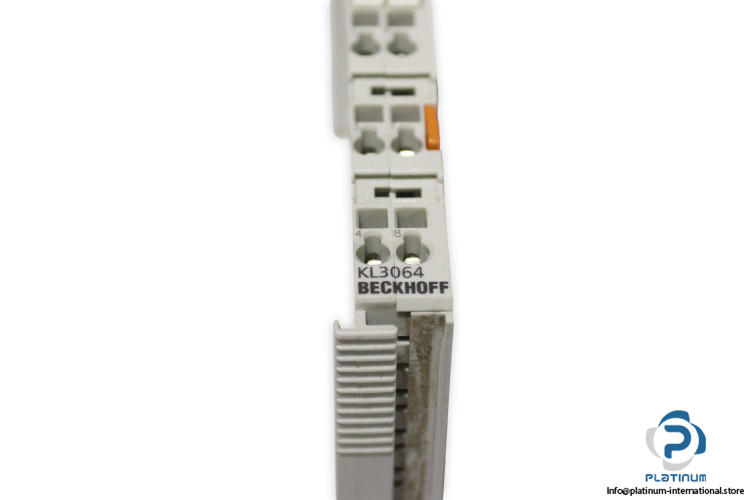

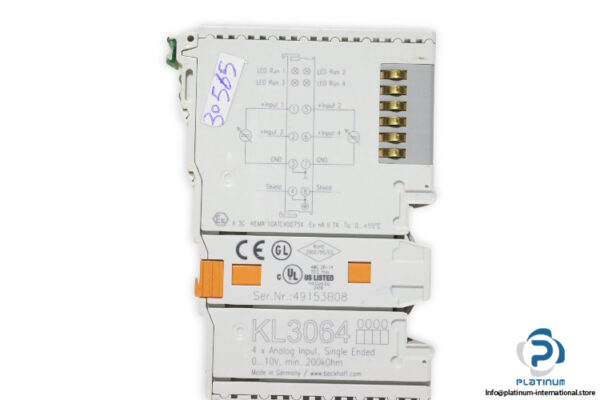

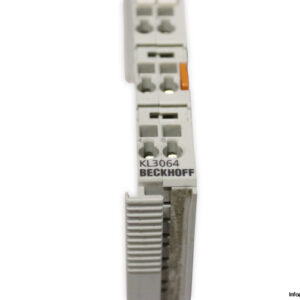

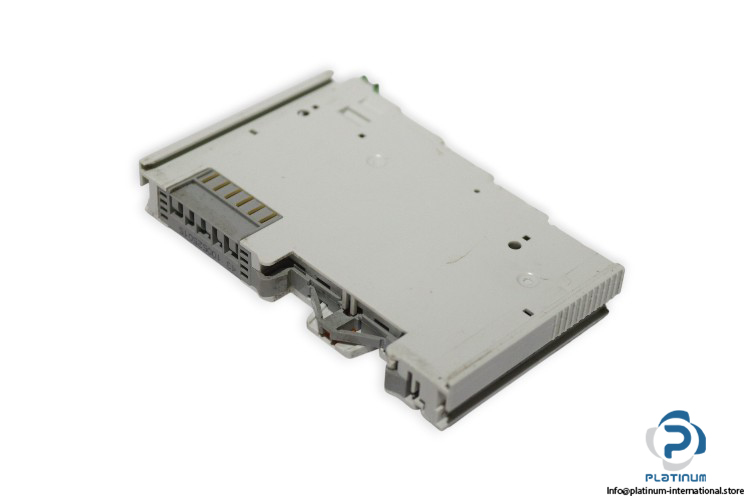

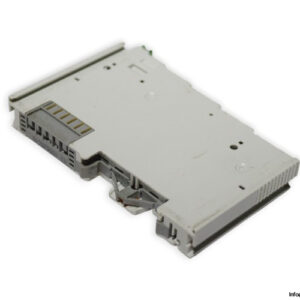

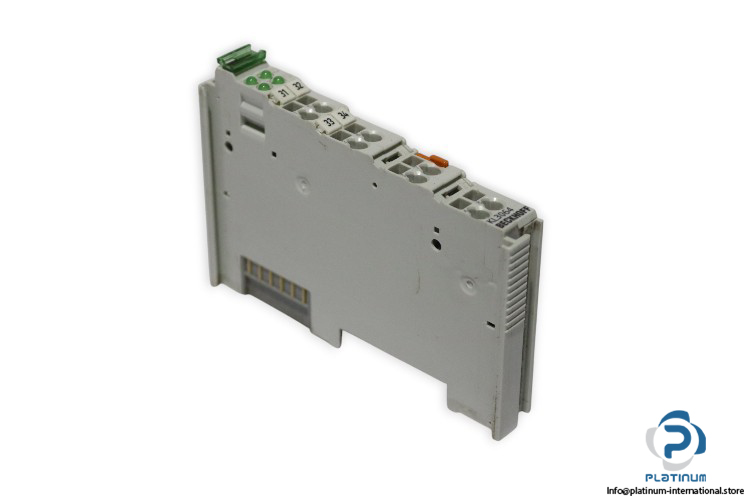

Beckhoff KL3064 Bus Terminal
The Beckhoff KL3064 is a high-quality analog input bus terminal from the KL3xxx family, designed to provide accurate and reliable signal processing in industrial automation systems. With advanced measurement precision and robust construction, it ensures dependable operation under demanding conditions.
Manufacturer: Beckhoff
Type: Bus Terminal
Model: KL3064
Serial No.: 49153b08
| Family | KL3xxx |
| Number of Inputs | 4 |
| Power Supply | via the K-bus |
| Signal Voltage | 0 / 10 V |
| Technology | Single-ended |
| Internal Resistance | typ. > 200 kΩ |
| Conversion Time | 4 ms |
| Resolution | 12 bit |
| Measurement Error/Uncertainty | < ±0.3% (relative to full scale value) |
| Electrical Isolation | 500 V (K-bus/signal voltage) |
| Current Consumption (K-bus) | typ. 85 mA |
| Bit Width in Process Image | Input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Operating Temperature | -25 / +60 °C |
| Protection Rating / Installation Position | IP20 / Variable |
| Material | Polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
