Panasonic AFP0RAD8 Analog Input Unit
New
Available on request
Analog Input Unit
The Panasonic AFP0RAD8 offers 8 channels with multiple input ranges (voltage and current) and 14-bit resolution, making it ideal for high-speed industrial data conversion with a 2 ms conversion speed per channel.14-bit8AFP0RAD8AnalogANDAutomationchannelConversionConverterCurrentDataFastIndustrialInputPanasonicRangeResolutionUnitvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

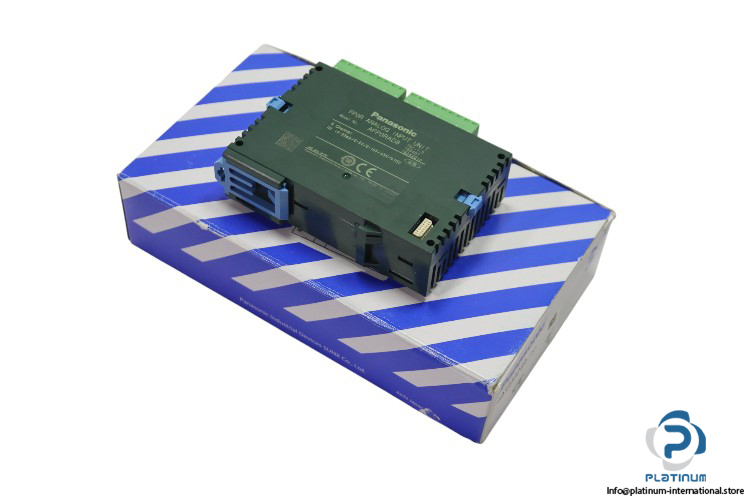

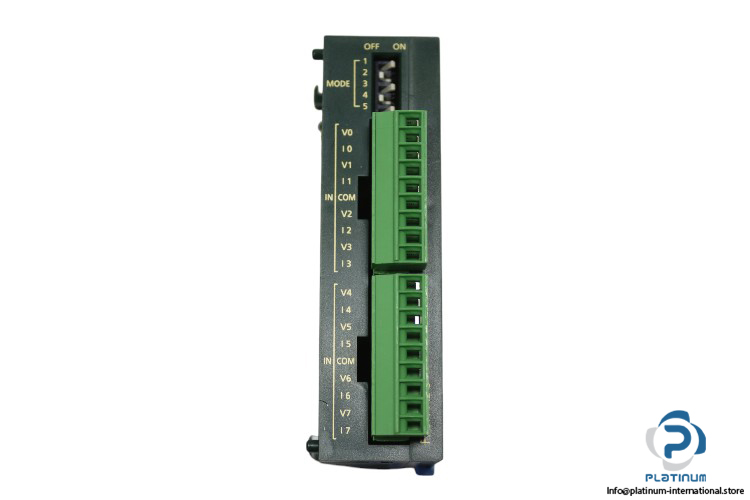

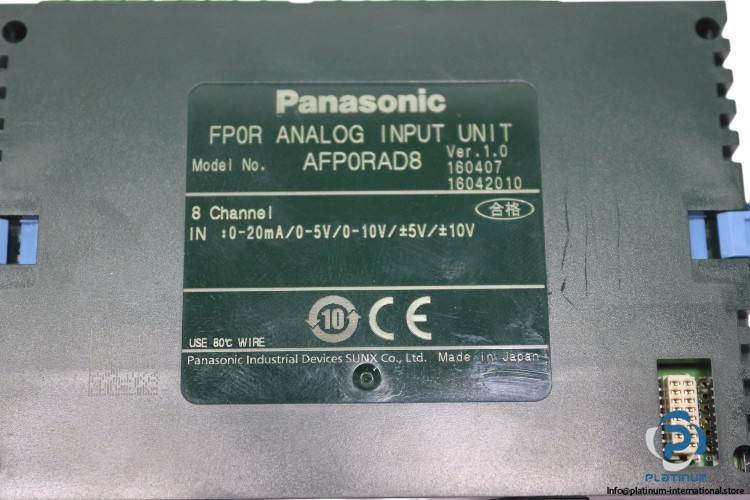

Panasonic AFP0RAD8 “ Analog Input Unit
The Panasonic AFP0RAD8 is an advanced analog input unit designed for precise data conversion in industrial applications. With 8 channels and a wide range of input options, this unit offers high resolution and fast conversion speeds for efficient system integration.
Manufacturer: Panasonic
Type: Analog Input Unit
Model: AFP0RAD8
Ref. No.: 160407 / 16042010
Version: 1.0
Input Range (Digital Input Range) Voltage:
-10 to +10 V 14 bits (-8,000 to +8,000)
-5 to +5 V 14 bits (-8,000 to +8,000)
0 to +10 V 14 bits (0 to +16,000)
0 to +5 V 14 bits (0 to +16,000)
| Rated Operating Voltage | 24 V DC |
| No. of Analog Inputs (AI) | 8 |
| No. of Channels | 8 |
| Input Range (Digital Input Range) Current | 0 to 20 mA 14 bits (0 to +16,000) |
| Max. Resolution | 14 bits (1/16,000) |
| Conversion Speed | 2 ms/all channels |
| Ambient Temperature | 0 to +55°C |
