Contrel ELR-2 100-400 Earth Leakage Relay
중고
재고 있음1 단위즉시 배송 가능
EARTH LEAKAGE RELAY CONTREL ELR-2 100-400은 넓은 전압 입력 (110-400 VAC), IP 등급 보호 및 이중 접점 출력을 갖춘 누전 릴레이로, 산업용에 적합합니다.
100-400ContrelDevicesEarthElectricalELR-2FaultGroundIndustrialIP52LeakagemonitoringProtectionProtectiveRelayRelaysSafetyvoltage
방대한 재고
글로벌 배송
전문 지원
품질 보장

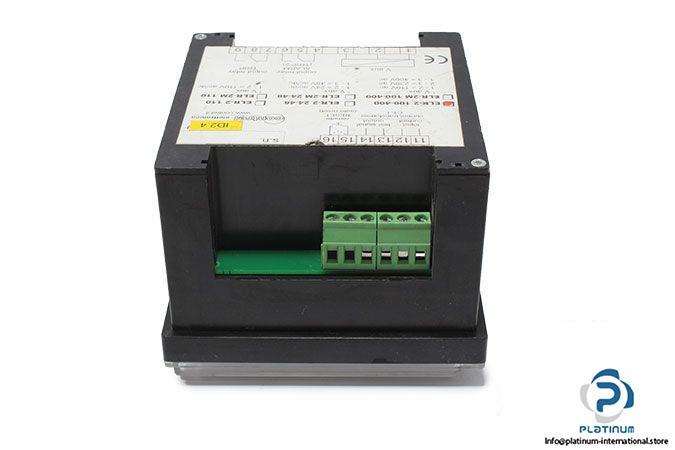

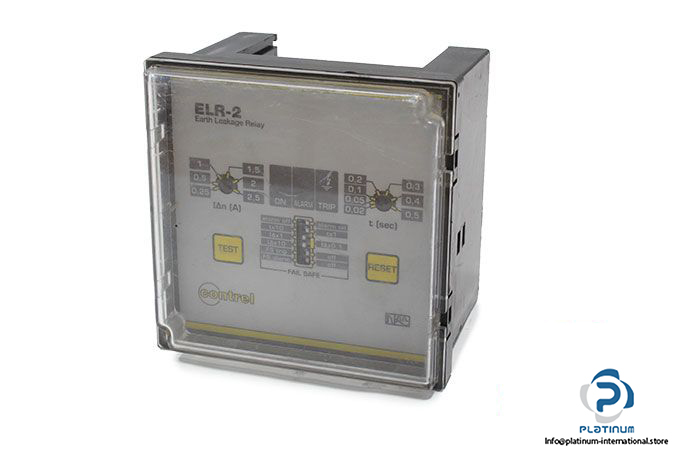

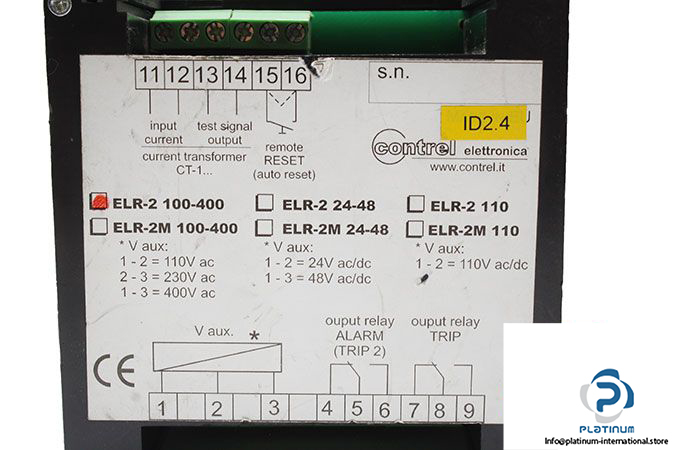

CONTREL ELR-2 100-400 EARTH LEAKAGE RELAY
The CONTREL ELR-2 100-400 is a reliable earth leakage relay designed to ensure electrical safety and system protection. Built with robust materials and high sensitivity, this device is ideal for industrial and commercial installations requiring enhanced protection from ground faults.
Manufacturer: CONTREL
Type: Earth Leakage Relay
Model: ELR-2 100-400
Reference No.: ID2.4
| Auxiliary Voltage Supply | 110 “ 230 “ 400 VAC |
| Frequency | 50 / 60 Hz |
| Max. Consumption | 4 VA |
| Output | Changeover contacts Nr.2, 5A 250V |
| Wiring Type | Screw terminals / cross section cables 2.5 mm² |
| Terminal Protection | IP20 (DIN 40050) |
| Frontal Protection Degree | IP52 (Optional IP65) |
| Insulation Test | 2.5 kV for 60 seconds |
| Dimensions | 96 x 74.8 x 96 mm |
| Working Temperature | -10 / 60°C |
