Contrel ELR-2 100-400 Earth Leakage Relay
Used
In stock1 unitReady to ship
EARTH LEAKAGE RELAY
CONTREL ELR-2 100-400 earth leakage relay ensures fault protection with wide voltage input (110“400 VAC), IP-rated protection, and dual contact outputs, ideal for industrial use.100-400ContrelDevicesEarthElectricalELR-2FaultGroundIndustrialIP52LeakagemonitoringProtectionProtectiveRelayRelaysSafetyvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

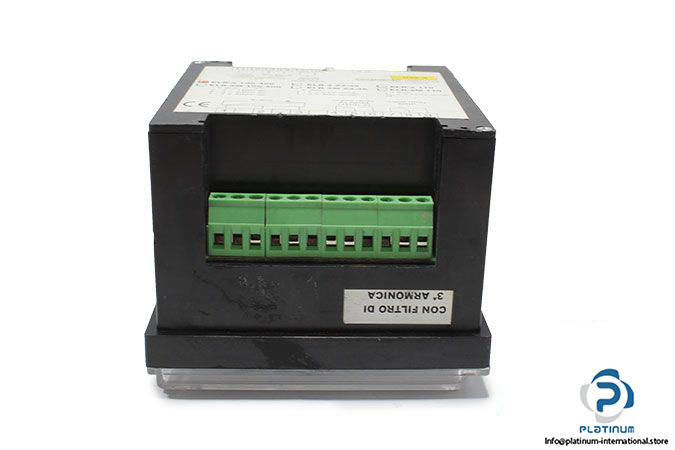

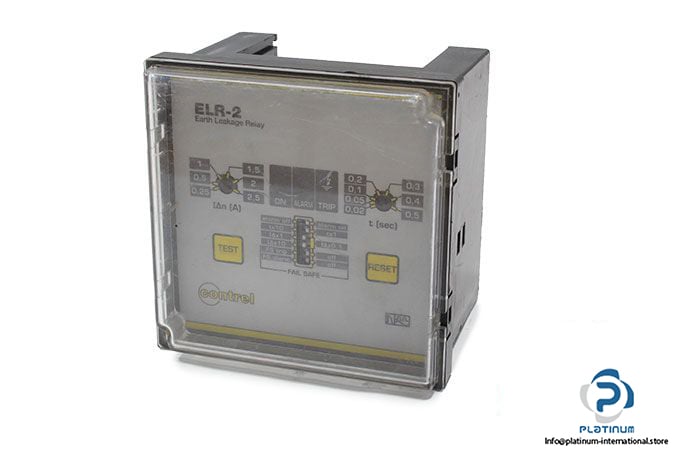

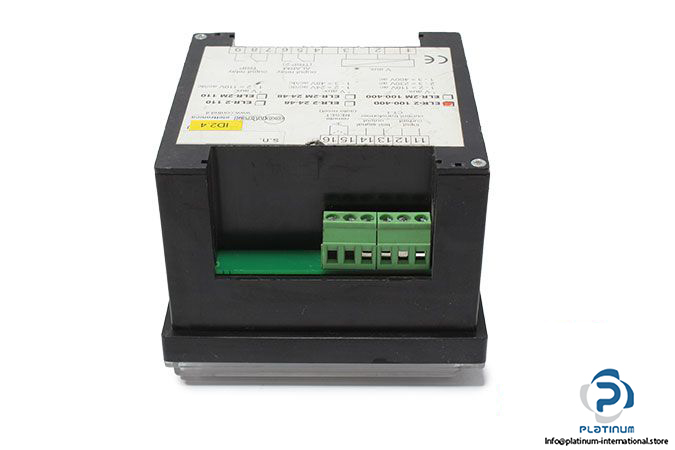

CONTREL ELR-2 100-400 EARTH LEAKAGE RELAY
The CONTREL ELR-2 100-400 is a reliable earth leakage relay designed to ensure electrical safety and system protection. Built with robust materials and high sensitivity, this device is ideal for industrial and commercial installations requiring enhanced protection from ground faults.
Manufacturer: CONTREL
Type: Earth Leakage Relay
Model: ELR-2 100-400
Reference No.: ID2.4

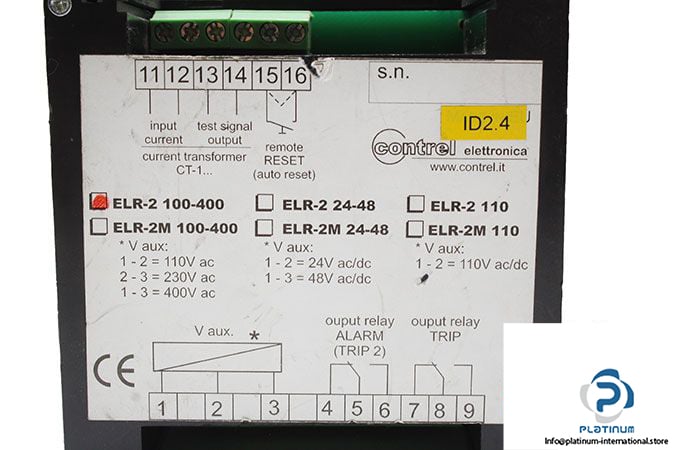

| Auxiliary Voltage Supply | 110 “ 230 “ 400 VAC |
| Frequency | 50 / 60 Hz |
| Max. Consumption | 4 VA |
| Output | Changeover contacts Nr.2, 5A 250V |
| Wiring Type | Screw terminals / cross section cables 2.5 mm² |
| Terminal Protection | IP20 (DIN 40050) |
| Frontal Protection Degree | IP52 (Optional IP65) |
| Insulation Test | 2.5 kV for 60 seconds |
| Dimensions | 96 x 74.8 x 96 mm |
| Working Temperature | -10 / 60°C |
