Contrel ELR.1 Earth-Leakage Protection Relay

Name: CONTREL ELR.1 EARTH-LEAKAGE PROTECTION RELAY
Brand: CONTREL
SKU: 1003558
Availability: LimitedAvailability

contrel-elr-1-earth-leakage-protection-relay-1

contrel-elr-1-earth-leakage-protection-relay-2

contrel-elr-1-earth-leakage-protection-relay-3

contrel-elr-1-earth-leakage-protection-relay-4

Used

In stock2 unitsReady to ship

EARTH-LEAKAGE RELAY

The Contrel ELR.1 offers advanced protection against leakage currents with precise delay settings and multi-voltage compatibility. Designed for flush or panel mounting in critical electrical safety systems.

Manufacturer

CONTREL

SKU

1003558

Category

Control Panels / Displays

Condition

Used

96x96 Adjustable comas Contrel Delay Device Earth Electrical ELR ELR.1 Flush Industrial IP20 Leakage mount Panel Protection Relay Series

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

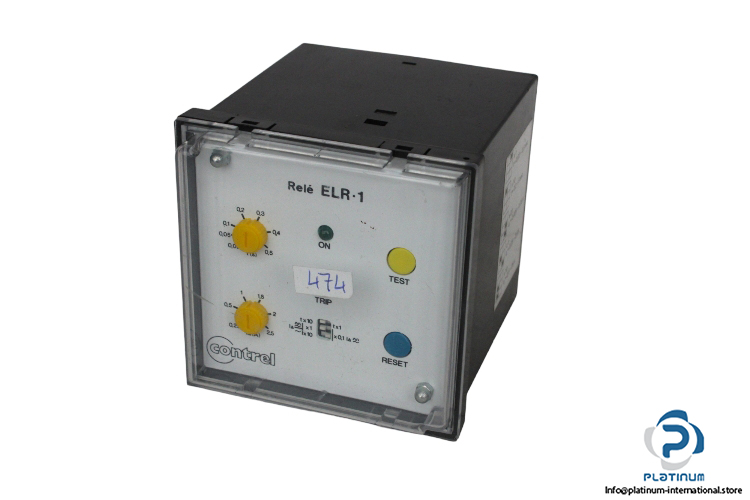

CONTREL ELR.1 EARTH-LEAKAGE PROTECTION RELAY

The Contrel ELR.1 is a high-precision earth-leakage protection relay designed for reliable fault detection and circuit safety in low-voltage systems. Its wide leakage current and time delay ranges make it suitable for industrial and panel-mounted protection environments. Manufacturer: Contrel

Type: Earth-leakage protection relay

Model: ELR.1

Ref. No.: 4101

Auxiliary Voltage Supply	110“127 V AC, 220“240 V AC, 380“415 V AC
Power Consumption	5.5 VA
Leakage Current Range	0.025“25 A

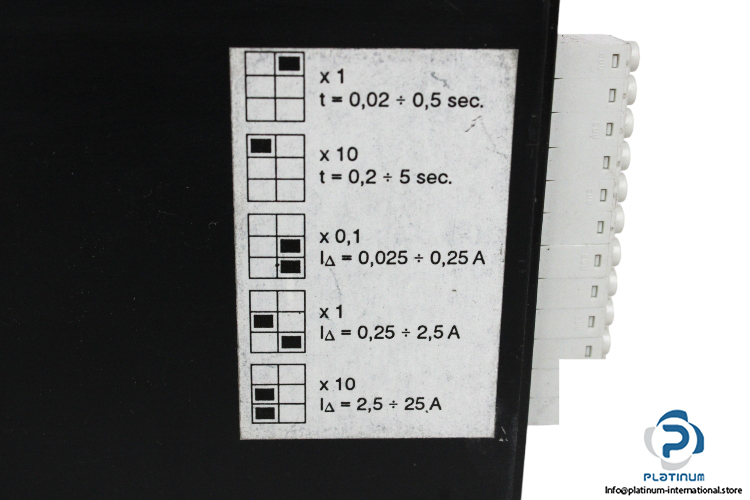

Leakage Time Delay	0.02“5 s
Relay Type	Type A
Output	1 changeover relay / 5 A, 240 V AC
Mounting	Panel-mount, flush-mount
Trigger Voltage	Max 415 V, Min 12 V
Protection Degree	IP20
Operating Temperature	-10 to +60 °C
Dimensions	96 x 96 x 60 mm
