Contrel ELR-3C Earth Leakage Relay
Used
In stock1 unitReady to ship
Contrel Earth Leakage Relay ELR3C with adjustable current (0.25 to 2.5 A), configurable tripping delay (0.02 to 0.5 s), and 1 changeover contact (5A, 250V). Ideal for protecting electrical circuits from earth leakage faults.
1250V5AChangeoverContactContrelCurrentDelayDINEarthElectricalLeakageOnProtectionrailRelaySnapTrippingvAdjustable
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

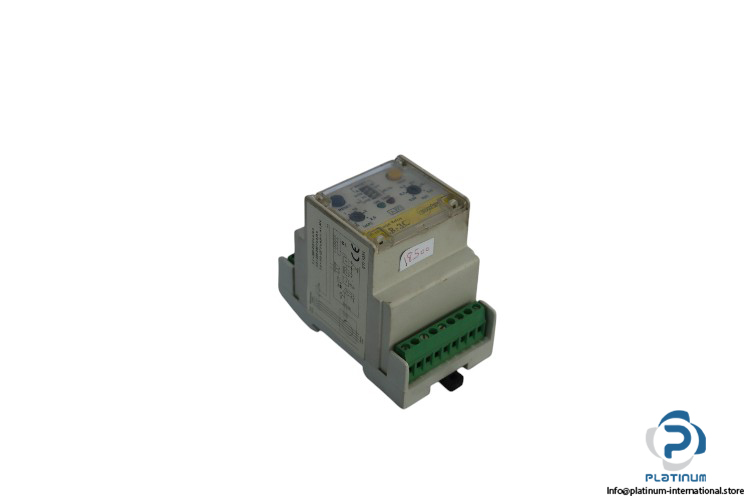

Contrel Earth Leakage Relay ELR3C
Contrel Earth Leakage Relay ELR3C is designed to monitor and protect electrical circuits against earth leakage faults. This relay offers a wide range of configurable settings, including adjustable current and tripping delay, providing enhanced flexibility for various industrial applications.
- Manufacturer: Contrel
- Type: Earth Leakage Relay
- Model: ELR3C
Technical Data:

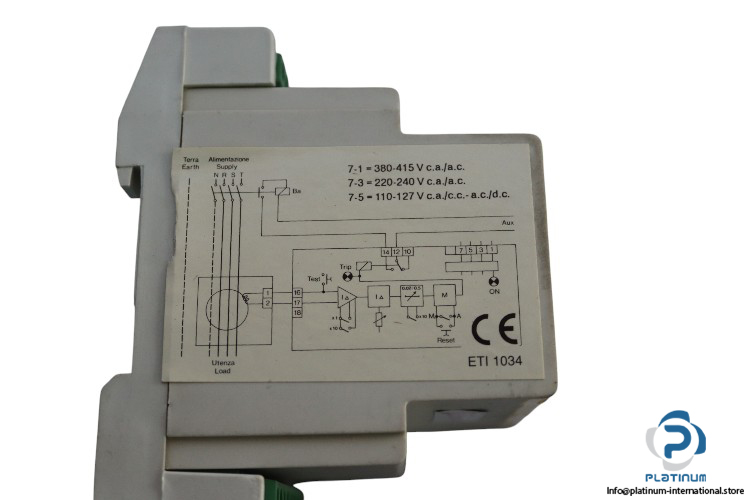

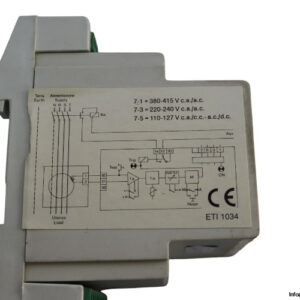

- Auxiliary Supply Voltage:
- 7-1: 380 to 415 V AC
- 7-3: 220 to 240 V AC
- 7-5: 110 to 127 V AC/DC
- Earth Leakage Relay Type: A
- Frequency: 50/60 Hz
- Adjustments Current: 0.25 to 2.5 A

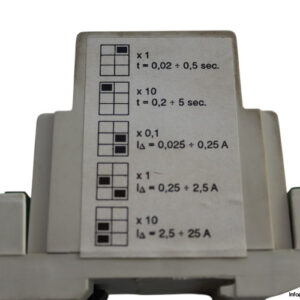

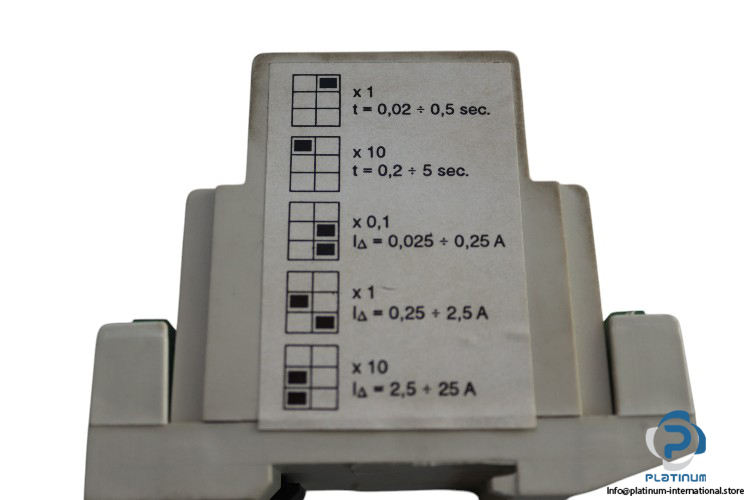

- Configurable Tripping Delay Time (t): 0.02 to 0.5 s
- Output: 1 changeover contact, (5A, 250V)
- Maximum Consumption Power: 3 VA

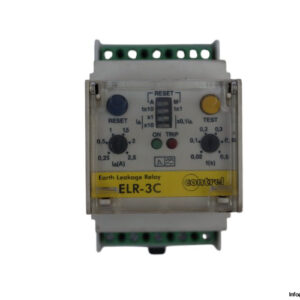

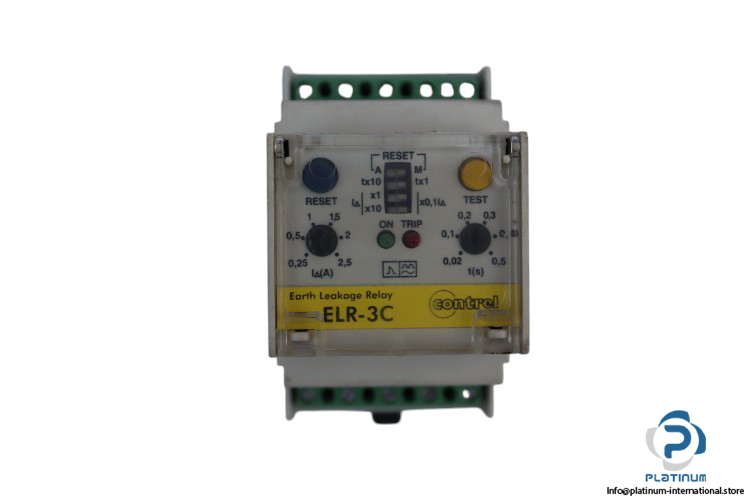

- Front Buttons: TEST and RESET buttons
- Mounting: Snap on DIN rail 35 mm
- Degree of Protection: IP20 terminals, IP40 on front with cover
- Working Temperature: -10 to 60°C
- Dimensions: 73 x 85 x 52.5 mm
