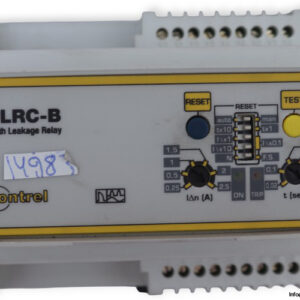

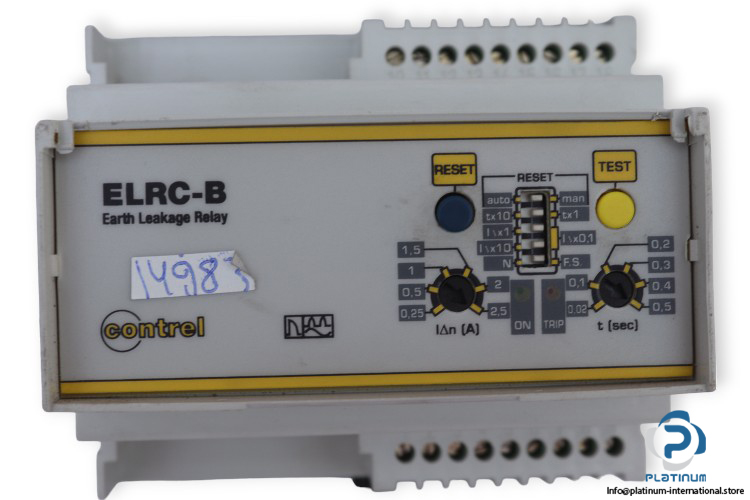

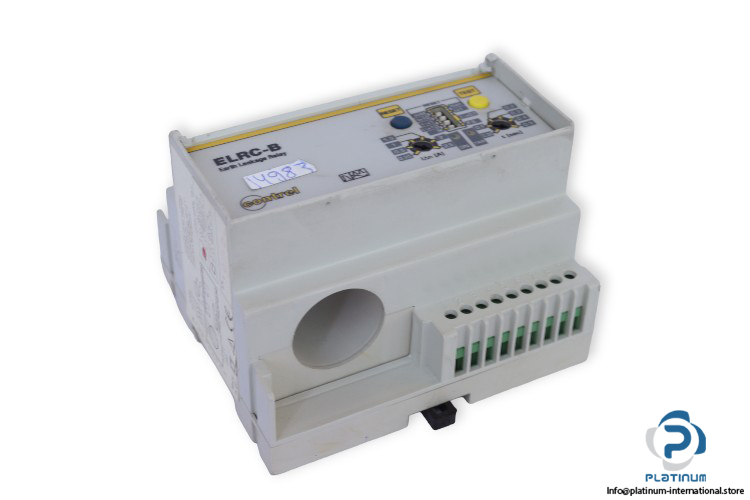

Contrel Elrc-B Earth Leakage Relay
Manufacturer: CONTREL
Type: Earth Leakage Relay
Model: ELRCB
Supply Voltage: 220 … 230 V AC
Power Consumption: 3 VA
Current Tripping Adjustment Range IN: 0.25 … 2.5 A
Tripping Time Setting Range t: 0.02 … 0.5 sec
Frequency: 50 … 60 Hz
Contact: 2 Changeover (CO)
Contact Ratings: 250 V AC, 5 A
Protection Class: IP20
Temperature: –10 … 60 °C
Dimensions: 90 x 105 x 73 mm
